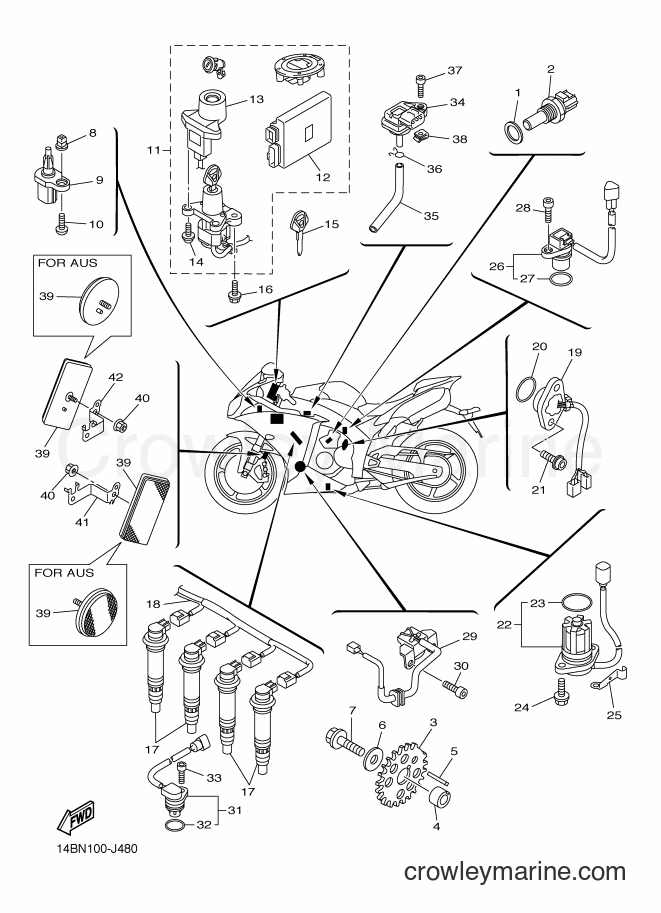

2010 Sport Bike YZF-R1 - YZF-R1 (14BN) [010] ELECTRICAL 1 diagram
![Yamaha Motors YZF-R1 (14BN) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/Y2dDRueI.png)
-10%
1
Yamaha Motors
Plate Washer90201-12790-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
2
Yamaha Motors
Thermosensor Assembly8CC-85790-01-00
Required: 1
THERMOSENSOR ASSY
$93.59
You save $10.40
-10%
$50.39
You save $5.60
-10%
$29.69
You save $3.30
-10%
5
Yamaha Motors
Straight Key90282-03005-00
Required: 1
KEY, STRAIGHT
$13.49
You save $1.50
-10%
6
Yamaha Motors
Plain Washer90201-10034-00
Required: 1
WASHER, PLATE
$7.64
You save $0.85
-10%
$13.94
You save $1.55
-10%
$8.54
You save $0.95
-10%
9
Yamaha Motors
AIR TEMP SENSOR8FP-85886-00-00
Required: 1
SENSOR, AIR TEMPERATURE
$59.39
You save $6.60
-10%
10
Yamaha Motors
Tapping Screw97702-50016-00
Required: 1
SCREW, TAPPING
$2.34
You save $0.26
11
Yamaha Motors
MAIN SW. IMMOBILIZER KIT14B-W8250-31
Required: 1
MAIN SW. IMMOBILIZER KIT
Price unavailable
12
Yamaha Motors
. ENGINE CONTROL UNIT ASSY14B-8591A-30
Required: 1
. ENGINE CONTROL UNIT ASSY
Price unavailable
13
Yamaha Motors
. IMMOBILIZER. UNIT COMP.45B-8255P-01
Required: 1
. IMMOBILIZER. UNIT COMP.
Price unavailable
14
Yamaha Motors
. SCREW5SL-82113-01
Required: 2
. SCREW
Price unavailable
-10%
$83.69
You save $9.30
-10%
16
Yamaha Motors
BOLT90109-08196-00
Required: 2
BOLT
Supersedes: 90109-080G5-00
$8.54
You save $0.95
-10%
17
Yamaha Motors
Ignition Coil Assembly14B-82310-00-00
Required: 4
IGNITION COIL ASSY
$196.19
You save $21.80
-10%
18
Yamaha Motors
Sub Lead Wire14B-82309-00-00
Required: 1
WIRE, SUB LEAD
No longer availableSearch Nationwide Inventory
$110.69
You save $12.30
-10%
19
Yamaha Motors
Neutral Switch Assembly14B-82540-01-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 14B-82540-00-00
No longer availableSearch Nationwide Inventory
$125.99
You save $14.00
-15%
$5.52
You save $0.97
-10%
21
Yamaha Motors
Hexagon Socket Bolt90110-05038-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05063-00
$7.64
You save $0.85
-10%
22
Yamaha Motors
Oil Level Gauge Assembly14B-85720-00-00
Required: 1
OIL LEVEL GAUGE ASSY
$71.99
You save $8.00
-10%
$13.94
You save $1.55
-10%
$3.51
You save $0.39
-10%
$5.84
You save $0.65
-10%
26
Yamaha Motors
Speed Sensor14B-83755-01-00
Required: 1
SENSOR, SPEED
Supersedes: 14B-83755-00-00
$148.49
You save $16.50
-50%
In stock
Only 1 remaining
$3.75
You save $3.75
-10%
28
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06161-00
$1.17
You save $0.13
-10%
29
Yamaha Motors
PICK-UP ASSY14B-81670-01-00
Required: 1
PICK-UP ASSY
Supersedes: 14B-81670-00-00
$169.95
You save $19.04
-10%
30
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06168-00
$4.94
You save $0.55
-10%
31
Yamaha Motors
Cam Position Sensor5VY-85896-02-00
Required: 1
SENSOR, CAM POSITION
Supersedes: 5VY-85896-00-00
$140.39
You save $15.60
-50%
In stock
Only 1 remaining
$3.75
You save $3.75
-10%
33
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06175-00
$2.39
You save $0.27
-10%
34
Yamaha Motors
Pressure Sensor1WS-82380-00-00
Required: 1
SENSOR, PRESSURE
Supersedes: 2C0-82380-00-00
$188.99
You save $21.00
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
37
Yamaha Motors
BOLT91317-05020-00
Required: 1
BOLT
Supersedes: 91312-05020-00
$3.19
You save $0.35
38
Yamaha Motors
Spring Nut90183-050A6-00
Required: 1
NUT, SPRING
Supersedes: 90183-05076-00
$4.03
-10%
$27.89
You save $3.10
-10%
$8.54
You save $0.95
-10%
41
Yamaha Motors
Reflector Bracket14B-85112-00-00
Required: 1
BRACKET, REFLECTOR 1
$13.94
You save $1.55
-10%
42
Yamaha Motors
Reflector Bracket14B-85122-00-00
Required: 1
BRACKET, REFLECTOR 2
$12.59
You save $1.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
