2012 Sport Bike YZF-R6 - YZF-R6 (1JSF) [010] REAR SUSPENSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

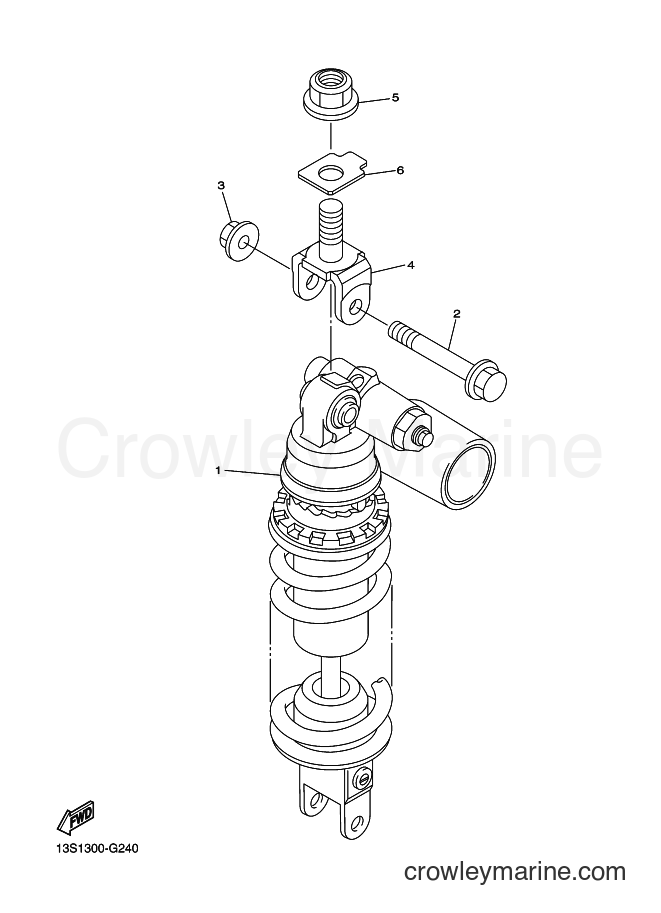

Yamaha Motors YZF-R6 (1JSF) [010] - REAR SUSPENSION
Change View:
SHOCK ABSORBER ASSY, REAR
1
Yamaha Motors
SHOCK ABSORBER ASSY, REAR13S-22210-42
Required: 1
SHOCK ABSORBER ASSY, REAR
Price unavailable
-10%
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10402-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Self Locking Nut
3
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.43
You save $0.27
More details
-10%
UPPER BRACKET
4
Yamaha Motors
UPPER BRACKET13S-22219-00-00
Required: 1
BRACKET, UPPER
Cross Ship
Leaves in 2-5 days
$103.99
$93.59
You save $10.40
More details
-10%
95601-14200-00
5
Yamaha Motors
95601-14200-0095602-14200-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Washer
6
Yamaha Motors
Washer13S-22243-00-00
Required: 1
WASHER 1
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
