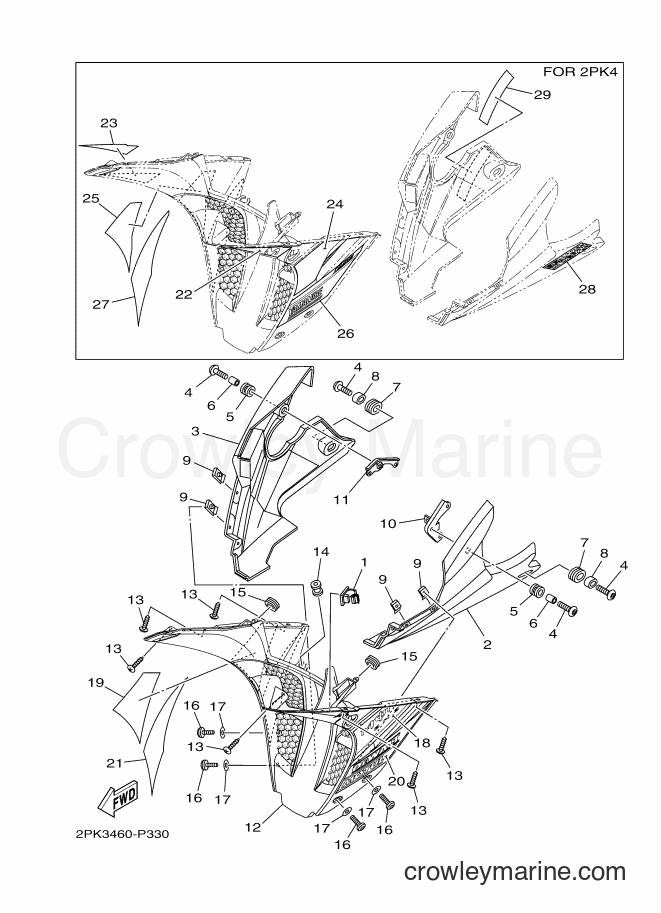

2015 Sport Bike YZF-R15 - YZF-R15 (2PK3) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YZF-R15 (2PK3) [010] - LEG SHIELD
Change View:
-10%
Clamp (1GJ)
1
Yamaha Motors
Clamp (1GJ)90464-54086-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$3.60
$3.24
You save $0.36
More details
COVER, UNDER
2
Yamaha Motors
COVER, UNDER2PK-F8385-00-P2
Required: 1
COVER, UNDER
Price unavailable
COVER, UNDER (0564,DPBMC)
2
Yamaha Motors
COVER, UNDER (0564,DPBMC)2PK-F8385-00-P1
Required: 1
COVER, UNDER (0564,DPBMC)
Price unavailable
COVER, UNDER 2 (0564,DPBMC)
3
Yamaha Motors
COVER, UNDER 2 (0564,DPBMC)2PK-F8395-00-P1
Required: 1
COVER, UNDER 2 (0564,DPBMC)
Price unavailable
COVER, UNDER 2
3
Yamaha Motors
COVER, UNDER 22PK-F8395-00-P2
Required: 1
COVER, UNDER 2
Price unavailable
-10%
BOLT,HEX. SOCKET BUT
4
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-06117-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
-10%
GROMMET, WATER TUBE (UPPER)
5
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14003-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
COLLAR
6
Yamaha Motors
COLLAR90387-068C2-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
GROMMET
7
Yamaha Motors
GROMMET90480-01811
Required: 2
GROMMET
Price unavailable
COLLAR
8
Yamaha Motors
COLLAR2PK-F1749-00
Required: 2
COLLAR
Price unavailable
-10%
Spring Nut
9
Yamaha Motors
Spring Nut90183-050A7-00
Required: 4
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$3.80
$3.42
You save $0.38
More details
STAY, SIDE 1
10
Yamaha Motors
STAY, SIDE 154C-F831U-00
Required: 1
STAY, SIDE 1
Price unavailable
STAY, SIDE 1
11
Yamaha Motors
STAY, SIDE 120P-F832U-01
Required: 1
STAY, SIDE 1
Price unavailable
PANEL, INNER 3 (1124,WM6)
12
Yamaha Motors
PANEL, INNER 3 (1124,WM6)2PK-F836M-00-5X
Required: 1
PANEL, INNER 3 (1124,WM6)
Price unavailable
PANEL, INNER 3
12
Yamaha Motors
PANEL, INNER 32PK-F836M-00-8X
Required: 1
PANEL, INNER 3
Price unavailable
-10%
Truss Screw
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
GROMMET
14
Yamaha Motors
GROMMET2PK-F1773-00
Required: 1
GROMMET
Price unavailable
-10%
Grommet
15
Yamaha Motors
Grommet90480-01559-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
BOLT
16
Yamaha Motors
BOLT90111-05003-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plate Washer
17
Yamaha Motors
Plate Washer90202-05180-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
GRAPHIC, 11
18
Yamaha Motors
GRAPHIC, 112PK-F83GE-00
Required: 1
GRAPHIC, 11
Price unavailable
GRAPHIC, 12
19
Yamaha Motors
GRAPHIC, 122PK-F83GF-00
Required: 1
GRAPHIC, 12
Price unavailable
GRAPHIC, 13
20
Yamaha Motors
GRAPHIC, 132PK-F83GG-00
Required: 1
GRAPHIC, 13
Price unavailable
GRAPHIC, 14
21
Yamaha Motors
GRAPHIC, 142PK-F83GH-00
Required: 1
GRAPHIC, 14
Price unavailable
GRAPHIC, 16
22
Yamaha Motors
GRAPHIC, 162PK-F83AN-00
Required: 1
GRAPHIC, 16
Price unavailable
GRAPHIC 17
23
Yamaha Motors
GRAPHIC 172PK-F83AP-00
Required: 1
GRAPHIC 17
Price unavailable
GRAPHIC, 18
24
Yamaha Motors
GRAPHIC, 182PK-F83AR-00
Required: 1
GRAPHIC, 18
Price unavailable
GRAPHIC 19
25
Yamaha Motors
GRAPHIC 192PK-F83AS-00
Required: 1
GRAPHIC 19
Price unavailable
GRAPHIC 20
26
Yamaha Motors
GRAPHIC 202PK-F83AT-00
Required: 1
GRAPHIC 20
Price unavailable
GRAPHIC 21
27
Yamaha Motors
GRAPHIC 212PK-F83AU-00
Required: 1
GRAPHIC 21
Price unavailable
GRAPHIC 22
28
Yamaha Motors
GRAPHIC 222PK-F83AV-00
Required: 1
GRAPHIC 22
Price unavailable
GRAPHIC 23
29
Yamaha Motors
GRAPHIC 232PK-F83B7-00
Required: 1
GRAPHIC 23
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
