2015 Sport Bike YZF-R15 - YZF-R15 (2PL2) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

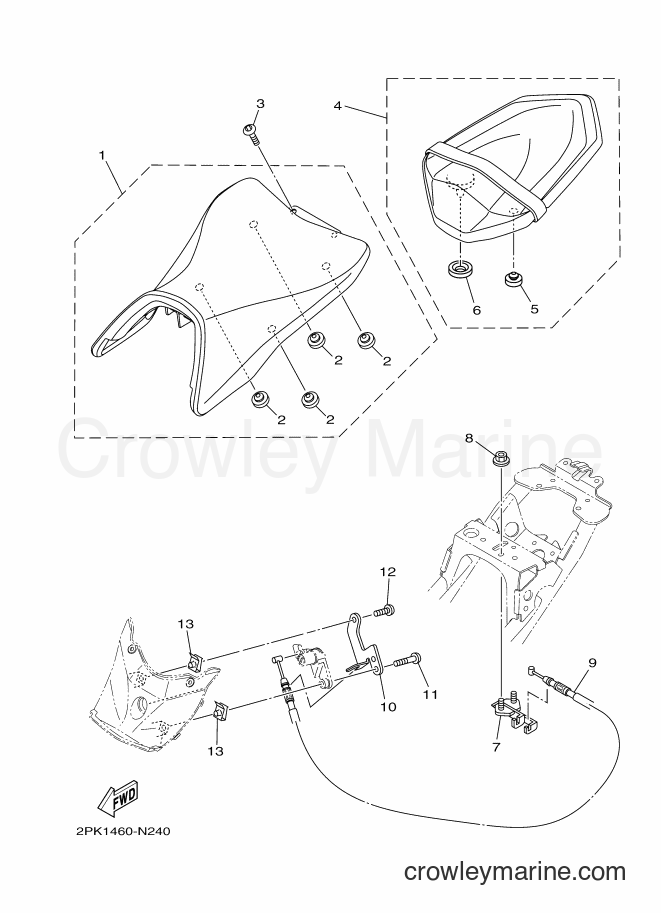

Yamaha Motors YZF-R15 (2PL2) [010] - SEAT
Change View:
SINGLE SEAT ASSY
1
Yamaha Motors
SINGLE SEAT ASSY2PK-F4710-00
Required: 1
SINGLE SEAT ASSY
Price unavailable
-10%
Seat Pad (3C11)
2
Yamaha Motors
Seat Pad (3C11)3C1-F4741-00-00
Required: 4
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$2.35
$2.12
You save $0.23
More details
-10%
Button head bolt
3
Yamaha Motors
Button head bolt92012-08012-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
TANDEM SEAT ASSY
4
Yamaha Motors
TANDEM SEAT ASSY2PK-F4750-00
Required: 1
TANDEM SEAT ASSY
Price unavailable
-10%
SEAT PAD (SX4 T105L)
5
Yamaha Motors
SEAT PAD (SX4 T105L)5BP-F4741-00-00
Required: 1
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$3.50
$3.15
You save $0.35
More details
. PAD, SEAT 2
6
Yamaha Motors
. PAD, SEAT 245P-F4763-00
Required: 1
. PAD, SEAT 2
Price unavailable
SEAT LOCK ASSY
7
Yamaha Motors
SEAT LOCK ASSY5BP-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-10%
Flange Nut
8
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
CABLE, SEAT LOCK
9
Yamaha Motors
CABLE, SEAT LOCK2PK-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
STAY, LOCK
10
Yamaha Motors
STAY, LOCK2PK-F117K-00
Required: 1
STAY, LOCK
Price unavailable
Pan Head Screw
11
Yamaha Motors
Pan Head Screw98517-05020-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05020-00
Cross Ship
Leaves in 2-5 days
$3.15
More details
-10%
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05012-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
Spring Nut
13
Yamaha Motors
Spring Nut90183-050A6-00
Required: 2
NUT, SPRING
Supersedes: 90183-05076-00
Cross Ship
Leaves in 2-5 days
$4.03
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
