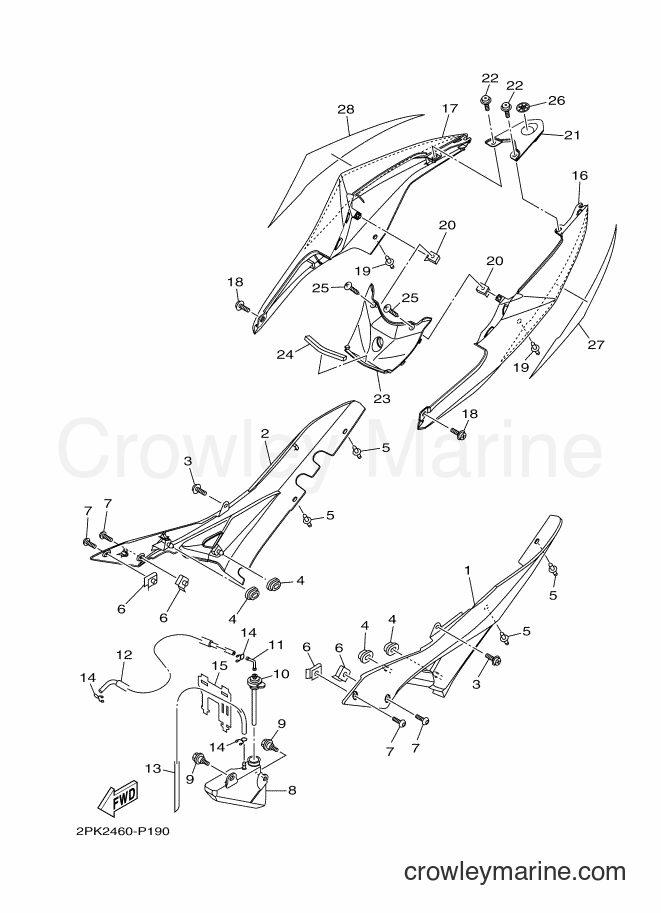

2015 Sport Bike YZF-R15 - YZF-R15 (2PL2) [010] SIDE COVER diagram
![Yamaha Motors YZF-R15 (2PL2) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/p1LMkyJE.png)
1
Yamaha Motors
COVER, SIDE 11CK-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
2
Yamaha Motors
COVER, SIDE 21CK-F1721-00
Required: 1
COVER, SIDE 2
Price unavailable
3
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
-10%
$4.19
You save $0.46
-10%
$1.17
You save $0.13
-10%
$3.42
You save $0.38
-10%
7
Yamaha Motors
BOLT90111-05003-00
Required: 4
BOLT,HEX. SOCKET BUTTON
$8.54
You save $0.95
8
Yamaha Motors
TANK, RECOVERY2FB-F1871-00
Required: 1
TANK, RECOVERY
Price unavailable
-10%
$8.54
You save $0.95
10
Yamaha Motors
CAP3C1-F1875-00
Required: 1
CAP
Price unavailable
-10%
11
Yamaha Motors
Elbow26H-21828-00-00
Required: 1
ELBOW
Supersedes: 3C1-F1828-00-00
$27.89
You save $3.10
12
Yamaha Motors
HOSE90445-08831
Required: 1
HOSE
Price unavailable
13
Yamaha Motors
HOSE90445-08832
Required: 1
HOSE
Price unavailable
-10%
$10.34
You save $1.15
15
Yamaha Motors
CLAMP, HOSE2PK-F1823-00
Required: 1
CLAMP, HOSE
Price unavailable
16
Yamaha Motors
COVER, SIDE 32PK-F1731-00-P2
Required: 1
COVER, SIDE 3
Price unavailable
17
Yamaha Motors
COVER, SIDE 42PK-F1741-00-P2
Required: 1
COVER, SIDE 4
Price unavailable
18
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
-10%
$1.17
You save $0.13
-50%
20
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
21
Yamaha Motors
COVER, SIDE 5 (0121,VRC1)2PK-F171E-00-P0
Required: 1
COVER, SIDE 5 (0121,VRC1)
Price unavailable
22
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
23
Yamaha Motors
COVER, SIDE 6 (0121,VRC1)2PK-F171X-00-P0
Required: 1
COVER, SIDE 6 (0121,VRC1)
Price unavailable
24
Yamaha Motors
DAMPER, PLATE90520-08801
Required: 1
DAMPER, PLATE
Price unavailable
-10%
25
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$4.17
You save $0.46
26
Yamaha Motors
EMBLEM2PK-F1737-00
Required: 1
EMBLEM
Price unavailable
27
Yamaha Motors
GRAPHIC 32PK-F174G-30
Required: 1
GRAPHIC 3
Price unavailable
28
Yamaha Motors
GRAPHIC 42PK-F174H-30
Required: 1
GRAPHIC 4
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
