2015 Sport Bike YZF-R1M - YZF-R1M (2KS4) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

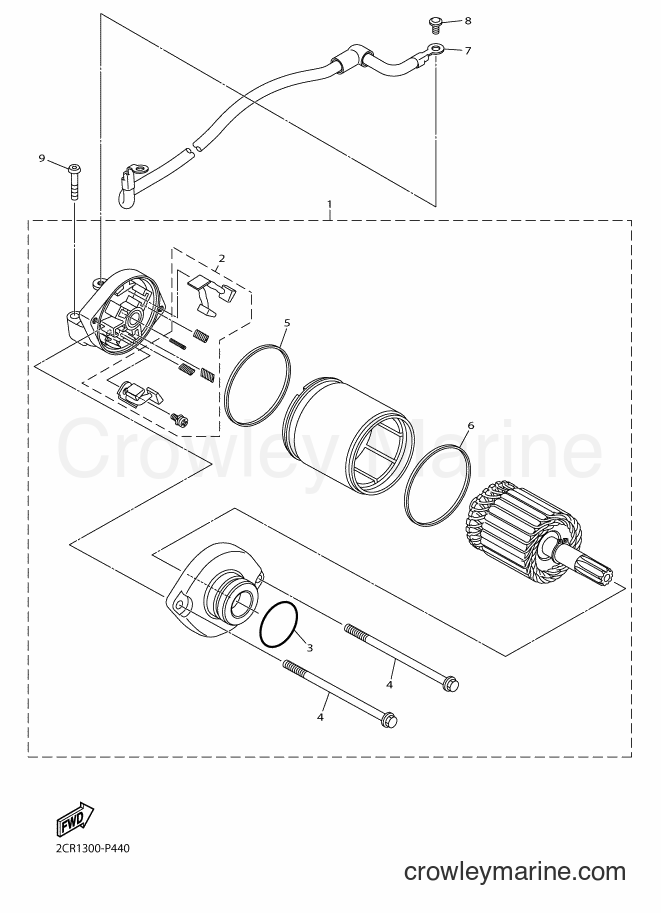

Yamaha Motors YZF-R1M (2KS4) [010] - STARTING MOTOR
Change View:
-10%
STARTING MOTOR SET
1
Yamaha Motors
STARTING MOTOR SET99999-04219-00
Required: 1
MOTOR ASSY
Supersedes: 2CR-81890-00-00
Cross Ship
Leaves in 2-5 days
$711.99
$640.79
You save $71.20
More details
-10%
Brush Set
2
Yamaha Motors
Brush Set2CR-81801-00-00
Required: 1
. BRUSH SET
Cross Ship
Leaves in 2-5 days
$19.99
$17.99
You save $2.00
More details
-10%
O-Ring
3
Yamaha Motors
O-Ring5VV-H182L-00-00
Required: 1
. O-RING 1
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Screw (M8 X 40)
4
Yamaha Motors
Screw (M8 X 40)2CR-81846-00-00
Required: 2
. SCREW
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
-10%
O-Ring
5
Yamaha Motors
O-Ring93210-09008-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Tank Cap Gasket
6
Yamaha Motors
Tank Cap Gasket2CR-81861-10-00
Required: 1
. GASKET
Supersedes: 2CR-81861-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
