2016 Sport Bike MT125 - MT125 (BR31) [050] REAR BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

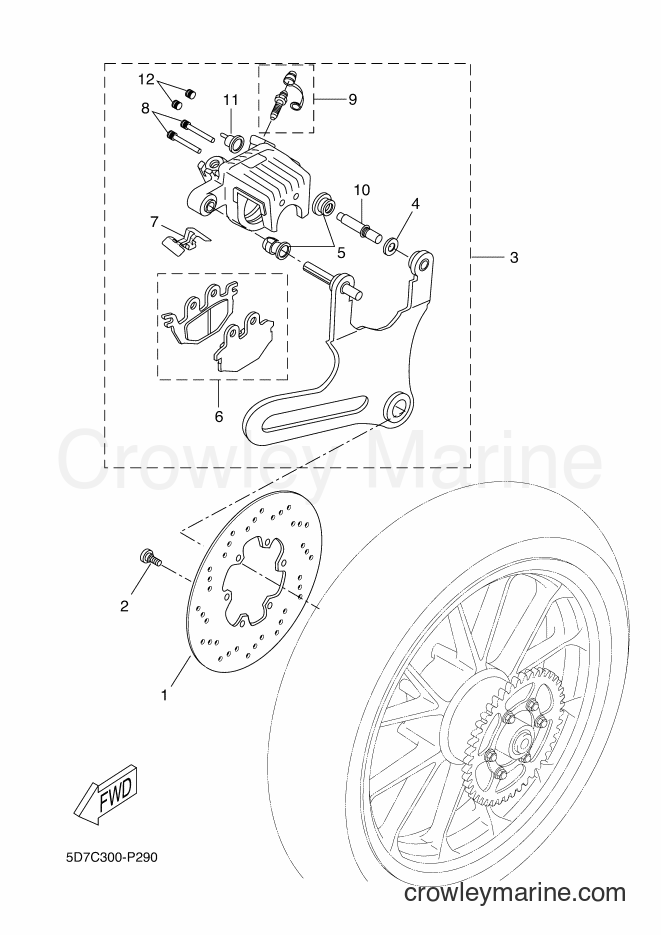

Yamaha Motors MT125 (BR31) [050] - REAR BRAKE CALIPER

Change View:

Yamaha Motors

DISK, REAR BRAKE 25D7-F582W-10

Required: 1

DISK, REAR BRAKE 2

Price unavailable

-10%

Yamaha Motors

BOLT90109-06254-00

Required: 6

BOLT

Supersedes: 90109-064G6-00

~~$3.60~~

$3.24

You save $0.36

More details

Yamaha Motors

CALIPER ASSY, REAR 25D7-F580W-30

Required: 1

CALIPER ASSY, REAR 2

Price unavailable

Yamaha Motors

. WASHER, SPRING5D7-F5938-00

Required: 1

. WASHER, SPRING

Price unavailable

Yamaha Motors

. BOOT, CALIPER5D7-F5917-10

Required: 1

. BOOT, CALIPER

Price unavailable

Yamaha Motors

. PAD, CALIPER 25D7-F5911-00

Required: 1

. PAD, CALIPER 2

Price unavailable

Yamaha Motors

. SUPPORT, PAD5D7-F5919-00

Required: 1

. SUPPORT, PAD

Price unavailable

Yamaha Motors

. PIN, PAD5D7-F5924-01

Required: 1

. PIN, PAD

Price unavailable

Yamaha Motors

. BLEED SCREW KIT1S6-W0048-00

Required: 1

. BLEED SCREW KIT

Price unavailable

Yamaha Motors

. BOLT5D7-F5926-00

Required: 1

. BOLT

Price unavailable

Yamaha Motors

. CAP5D7-F5825-00

Required: 1

. CAP

Price unavailable

Yamaha Motors

. PLUG, BLIND5D7-F5339-00

Required: 1

. PLUG, BLIND

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
