2016 Sport Bike YZF-R15 - YZF-R15 (2PL5) [010] REAR BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

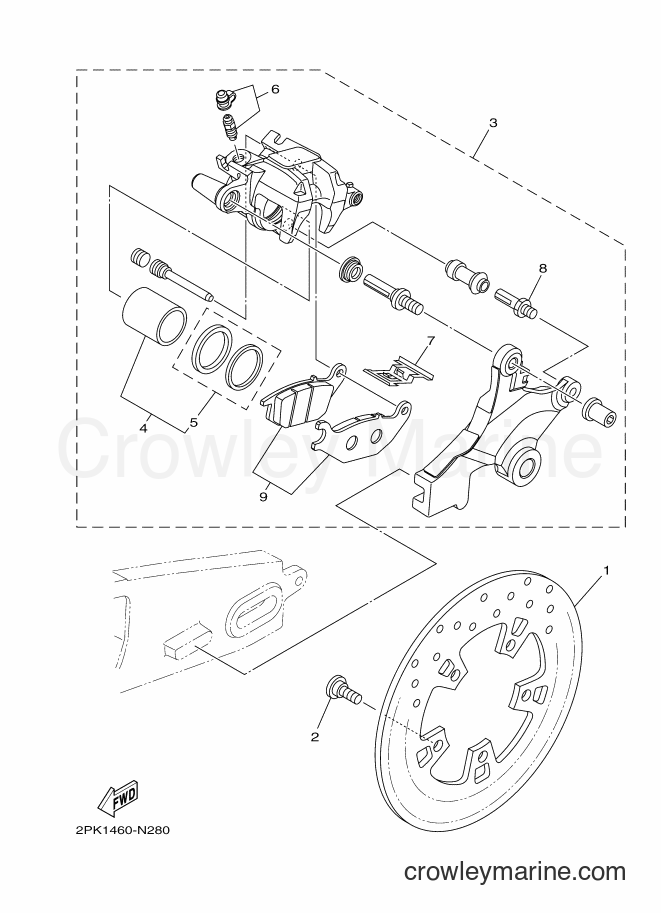

Yamaha Motors YZF-R15 (2PL5) [010] - REAR BRAKE CALIPER
Change View:
DISK, REAR BRAKE 2
1
Yamaha Motors
DISK, REAR BRAKE 21CK-F582W-00
Required: 1
DISK, REAR BRAKE 2
Price unavailable
CALIPER ASSY, REAR 2
3
Yamaha Motors
CALIPER ASSY, REAR 22PK-F580W-00
Required: 1
CALIPER ASSY, REAR 2
Price unavailable
. PISTON ASSY, CALIPER
4
Yamaha Motors
. PISTON ASSY, CALIPER4S3-F5802-00
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
. . CALIPER SEAL KIT
5
Yamaha Motors
. . CALIPER SEAL KIT3GD-F5803-00
Required: 1
. . CALIPER SEAL KIT
Price unavailable
. BLEED SCREW KIT
6
Yamaha Motors
. BLEED SCREW KIT4S3-W0048-00
Required: 1
. BLEED SCREW KIT
Price unavailable
. SUPPORT, PAD
7
Yamaha Motors
. SUPPORT, PAD4S3-F5919-00
Required: 1
. SUPPORT, PAD
Price unavailable
. PIN, SLIDE
8
Yamaha Motors
. PIN, SLIDE3SP-F5914-51
Required: 1
. PIN, SLIDE
Price unavailable
. BRAKE PAD KIT
9
Yamaha Motors
. BRAKE PAD KIT4S3-F5805-00
Required: 1
. BRAKE PAD KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
