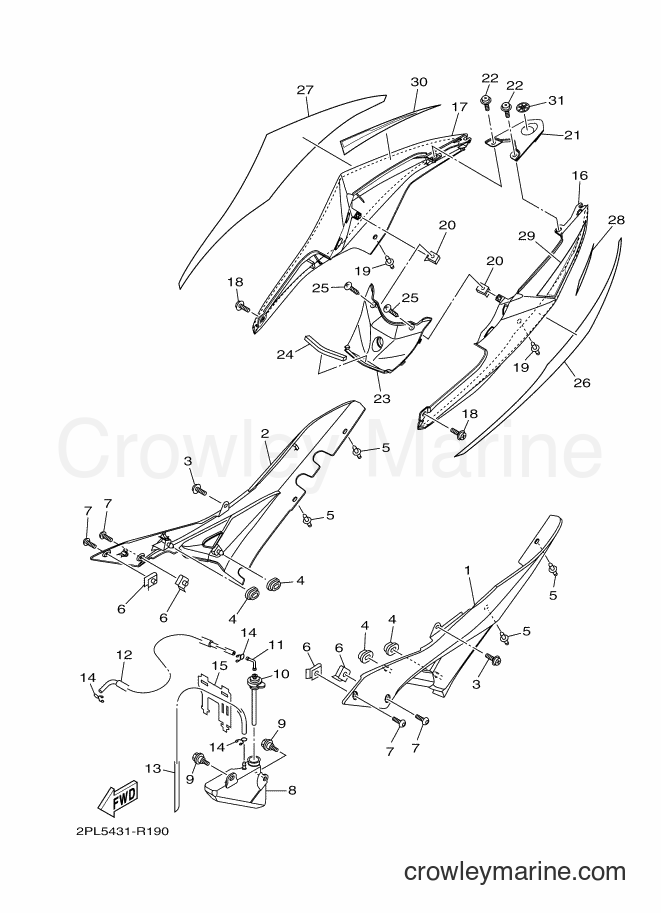

2016 Sport Bike YZF-R15 - YZF-R15 (2PL5) [010] SIDE COVER diagram
![Yamaha Motors YZF-R15 (2PL5) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/2x6qhn8v.png)
1
Yamaha Motors
COVER, SIDE 11CK-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
2
Yamaha Motors
COVER, SIDE 21CK-F1721-00
Required: 1
COVER, SIDE 2
Price unavailable
3
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
-10%
$4.19
You save $0.46
-10%
$1.17
You save $0.13
-10%
$3.42
You save $0.38
-10%
7
Yamaha Motors
BOLT90111-05003-00
Required: 4
BOLT,HEX. SOCKET BUTTON
$8.54
You save $0.95
8
Yamaha Motors
TANK, RECOVERY2FB-F1871-00
Required: 1
TANK, RECOVERY
Price unavailable
-10%
$8.54
You save $0.95
10
Yamaha Motors
CAP20P-F1875-00
Required: 1
CAP
Price unavailable
-10%
11
Yamaha Motors
Elbow26H-21828-00-00
Required: 1
ELBOW
Supersedes: 3C1-F1828-00-00
$27.89
You save $3.10
12
Yamaha Motors
HOSE90445-08831
Required: 1
HOSE
Price unavailable
13
Yamaha Motors
HOSE90445-08832
Required: 1
HOSE
Price unavailable
-10%
$10.34
You save $1.15
15
Yamaha Motors
CLAMP, HOSE2PK-F1823-00
Required: 1
CLAMP, HOSE
Price unavailable
16
Yamaha Motors
COVER, SIDE 3 (0564,DPBMC)2PK-F1731-00-P1
Required: 1
COVER, SIDE 3 (0564,DPBMC)
Price unavailable
17
Yamaha Motors
COVER, SIDE 4 (0564,DPBMC)2PK-F1741-00-P1
Required: 1
COVER, SIDE 4 (0564,DPBMC)
Price unavailable
18
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
-10%
$1.17
You save $0.13
-50%
20
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
21
Yamaha Motors
COVER, SIDE 52PK-F171E-00-P5
Required: 1
COVER, SIDE 5
Price unavailable
22
Yamaha Motors
SCREW, WITH WASHER90159-06817
Required: 2
SCREW, WITH WASHER
Price unavailable
23
Yamaha Motors
COVER, SIDE 62PK-F171X-00-P5
Required: 1
COVER, SIDE 6
Price unavailable
24
Yamaha Motors
DAMPER, PLATE90520-08801
Required: 1
DAMPER, PLATE
Price unavailable
-10%
25
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$4.17
You save $0.46
26
Yamaha Motors
GRAPHIC 32PK-F174G-A0
Required: 1
GRAPHIC 3
Price unavailable
27
Yamaha Motors
GRAPHIC 42PK-F174H-A0
Required: 1
GRAPHIC 4
Price unavailable
28
Yamaha Motors
GRAPHIC 52PK-F174J-20
Required: 2
GRAPHIC 5
Price unavailable
29
Yamaha Motors
GRAPHIC 72PK-F173X-10
Required: 1
GRAPHIC 7
Price unavailable
30
Yamaha Motors
GRAPHIC 82PK-F173Y-10
Required: 1
GRAPHIC 8
Price unavailable
31
Yamaha Motors
EMBLEM1LB-F1737-00
Required: 1
EMBLEM
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
