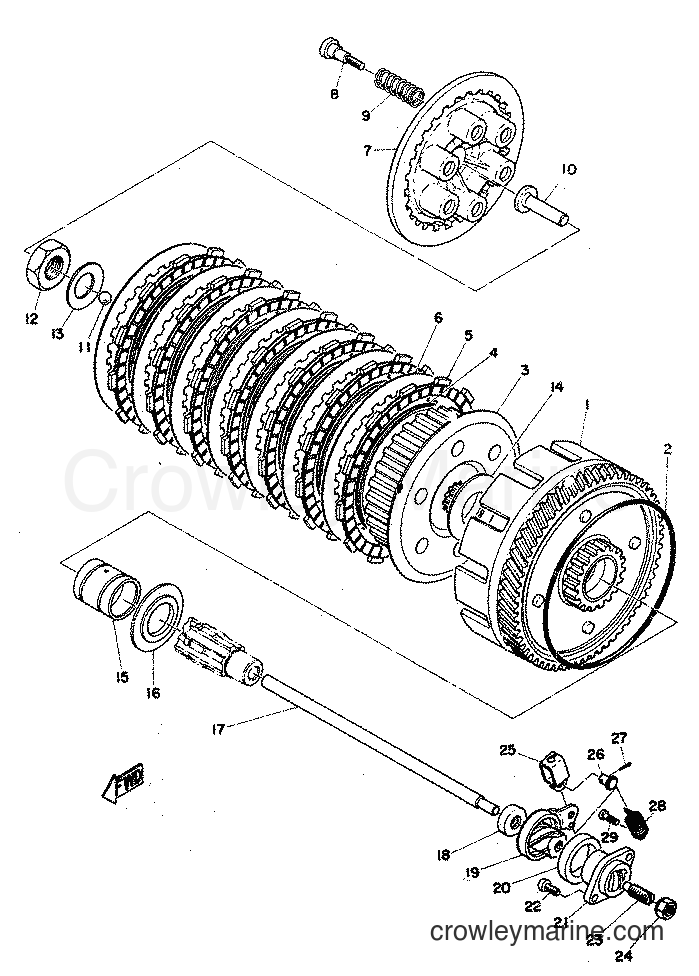

1974 Street Bike RD350 - RD350 (RD1) [999] CLUTCH diagram
![Yamaha Motors RD350 (RD1) [999] - CLUTCH](https://cdn.crowleymarine.com/yamaha/zqgLULQy.png)
-10%
1
Yamaha Motors
Primary Driven Gear280-16150-01-00
Required: 1
. PRIMARY DRIVEN GEAR COMP.
Supersedes: 280-16150-00-00
No longer availableSearch Nationwide Inventory
$125.09
You save $13.90
-10%
No longer availableSearch Nationwide Inventory
$121.49
You save $13.50
-10%
1
Yamaha Motors
Primary Driven Gear278-16150-02-00
Required: 1
. PRIMARY DRIVEN GEAR COMP.
Supersedes: 278-16150-01-00
No longer availableSearch Nationwide Inventory
$102.59
You save $11.40
-10%
No longer availableSearch Nationwide Inventory
$107.99
You save $12.00
-10%
No longer availableSearch Nationwide Inventory
$3.92
You save $0.44
-10%
3
Yamaha Motors
CLUTCH BOSS ASY360-16370-00-00
Required: 1
. CLUTCH BOSS ASSY
No longer availableSearch Nationwide Inventory
$107.99
You save $12.00
-10%
4
Yamaha Motors
Cushion Ring278-16367-00-00
Required: 7
. RING, CUSHION
$24.29
You save $2.70
-10%
5
Yamaha Motors
5Y1-16331-01-00360-16321-09-00
Required: 7
. PLATE, FRICTION
Supersedes: 360-16321-00-00
No longer availableSearch Nationwide Inventory
$13.49
You save $1.50
-10%
6
Yamaha Motors
PLATE, CLUTCH 2360-16325-10-00
Required: 7
. PLATE, CLUTCH 2
Supersedes: 360-16325-00-00
$35.09
You save $3.90
-10%
7
Yamaha Motors
PRESSURE PLATE 1214-16351-00-00
Required: 1
. PLATE, PRESSURE 1
Supersedes: 360-16351-00-00
No longer availableSearch Nationwide Inventory
$37.79
You save $4.20
-10%
8
Yamaha Motors
SPECIAL SHAPE SCREW90149-05147-00
Required: 6
. SCREW, SPRING
Supersedes: 137-16337-01-00
No longer availableSearch Nationwide Inventory
$0.99
You save $0.11
-10%
9
Yamaha Motors
Compression Spring90501-20361-00
Required: 6
. SPRING, CLUTCH 1
Supersedes: 183-16333-70-00
$13.04
You save $1.45
-10%
$20.69
You save $2.30
-50%
In stock
Only 3 remaining
$1.45
You save $1.45
-10%
12
Yamaha Motors
Hexagon Nut90170-18089-00
Required: 1
NUT, LOCK
Supersedes: 156-16174-00-00
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
13
Yamaha Motors
BELLEVILLE SPRING214-16119-00-00
Required: 1
SPRING, BELLEVILLE
$10.79
You save $1.20
-10%
14
Yamaha Motors
Thrust Plate170-16164-00-00
Required: 1
PLATE, THRUST 2
$9.89
You save $1.10
-10%
$42.29
You save $4.70
-10%
16
Yamaha Motors
Thrust Plate278-16154-00-00
Required: 1
PLATE, THRUST 1
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
18
Yamaha Motors
SDO TYPE OIL SEAL93109-08061-00
Required: 1
SEAL, PUSH ROD
Supersedes: 237-15389-00-00
$7.64
You save $0.85
-10%
19
Yamaha Motors
PUSH LEVER ASSEMBLY360-16340-00-00
Required: 1
PUSH LEVER ASSY
No longer availableSearch Nationwide Inventory
$30.42
You save $3.38
-10%
No longer availableSearch Nationwide Inventory
$5.84
You save $0.65
-10%
21
Yamaha Motors
Push Screw Housing371-16396-00-00
Required: 1
HOUSING, PUSH SCREW
Supersedes: 256-16396-01-00
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
22
Yamaha Motors
98517-05012-0098501-05012-00
Required: 2
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.04
You save $0.11
-10%
23
Yamaha Motors
90113-08021-00256-16343-01-00
Required: 1
SCREW, ADJUSTING
No longer availableSearch Nationwide Inventory
$4.00
You save $0.45
-10%
24
Yamaha Motors
SPECIAL SHAPE NUT90179-08179-00
Required: 1
NUT, ADJUSTING
Supersedes: 214-16344-00-00
$7.64
You save $0.85
-10%
$8.54
You save $0.95
-10%
$12.14
You save $1.35
$0.30
-10%
28
Yamaha Motors
TENSION SPRING90506-10069-00
Required: 1
SPRING, RETURN
Supersedes: 360-16345-00-00
$9.44
You save $1.05
-10%
$9.89
You save $1.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
