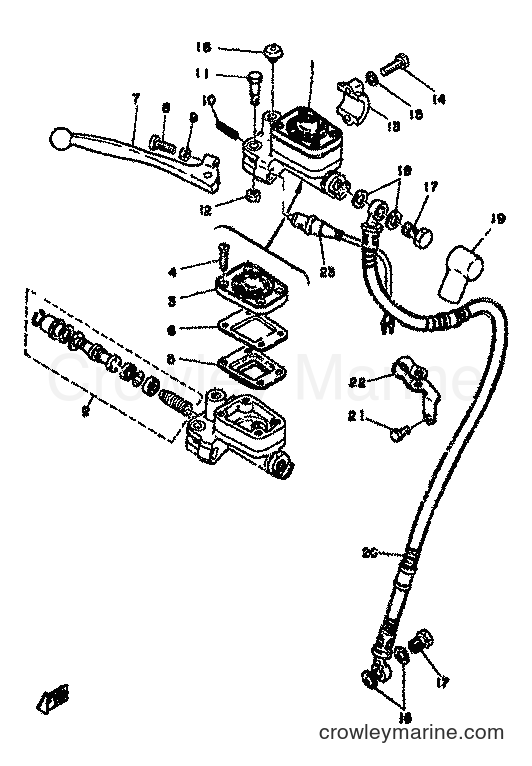

1976 Street Bike XS500 - XS500 (1H2) [999] FRONT MASTER CYLINDER diagram
![Yamaha Motors XS500 (1H2) [999] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/KVEw1Mpe.png)
-10%
1
Yamaha Motors
Master Cylinder Assembly1J3-25850-02-00
Required: 1
MASTER CYLINDER ASSY
Supersedes: 1J3-25850-01-00
No longer availableSearch Nationwide Inventory
$191.69
You save $21.30
-10%
2
Yamaha Motors
Master Cylinder Kit535-W0041-60-00
Required: 1
. CYLINDER KIT,MASTER CYLINDER
Supersedes: 535-20000-60-00
$141.29
You save $15.70
-10%
3
Yamaha Motors
Reservoir Cap1J3-25852-01-00
Required: 1
. CAP, RESERVOIR
No longer availableSearch Nationwide Inventory
$45.89
You save $5.10
-10%
4
Yamaha Motors
Flat Head Screw98707-05014-00
Required: 4
. SCREW, COUNTERSUNK
Supersedes: 90151-05008-00
$9.44
You save $1.05
-10%
7
Yamaha Motors
LEVER R341-83922-00-00
Required: 1
LEVER 2
Supersedes: 1J3-83922-10-00
No longer availableSearch Nationwide Inventory
$13.49
You save $1.50
-10%
8
Yamaha Motors
Oval Fillister Screw90146-06005-00
Required: 1
SCREW, OVAL FILLISTER
No longer availableSearch Nationwide Inventory
$2.70
You save $0.30
-10%
$8.54
You save $0.95
-10%
10
Yamaha Motors
Compression Spring90501-10312-00
Required: 1
SPRING, COMPRESSION
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-15%
12
Yamaha Motors
Nut95380-06700-00
Required: 1
NUT
Supersedes: 95301-06700-00
In stock
5+ in stock
$8.07
You save $1.42
-10%
13
Yamaha Motors
Master Cylinder Bracket1J3-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
14
Yamaha Motors
Bolt97017-06025-00
Required: 2
BOLT
Supersedes: 97301-06025-00
$4.09
You save $0.46
-10%
$9.44
You save $1.05
-10%
17
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Supersedes: 90401-10034-00
$11.24
You save $1.25
-20%
18
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
-10%
19
Yamaha Motors
MASTER CYLINDER BOOT360-25862-00-00
Required: 1
BOOT, MASTER CYLINDER
$22.49
You save $2.50
-10%
19
Yamaha Motors
MASTER CYLINDER BOOT306-25862-00-00
Required: 1
BOOT, MASTER CYLINDER
$47.69
You save $5.30
-10%
20
Yamaha Motors
Brake Hose1J3-25872-01-00
Required: 1
HOSE, BRAKE 1
No longer availableSearch Nationwide Inventory
$22.05
You save $2.45
20
Yamaha Motors
HOSE, BRAKE 11H2-25872-01
Required: 1
HOSE, BRAKE 1
Price unavailable
-50%
21
Yamaha Motors
Bolt97013-06012-00
Required: 1
BOLT
Supersedes: 97301-06012-00
In stock
Only 3 remaining
$3.25
You save $3.25
-10%
22
Yamaha Motors
BRAKE HOSE HOLDER1J3-25886-00-00
Required: 1
HOLDER, BRAKE HOSE
No longer availableSearch Nationwide Inventory
$3.56
You save $0.40
-10%
23
Yamaha Motors
STOP SWITCH ASSEMBLY26H-83980-00-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 1A0-83980-30-00
$72.89
You save $8.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
