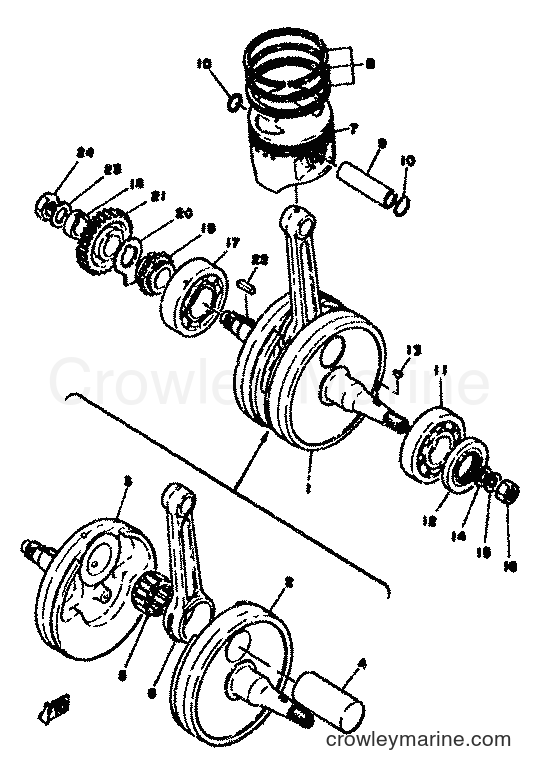

1978 Street Bike SR500 - SR500 (2J4) [999] CRANKSHAFT & PISTON diagram
![Yamaha Motors SR500 (2J4) [999] - CRANKSHAFT & PISTON](https://cdn.crowleymarine.com/yamaha/mSUtsD8p.png)
-10%
1
Yamaha Motors
Crankshaft Assembly2J2-11400-00-00
Required: 1
CRANKSHAFT ASSY
No longer availableSearch Nationwide Inventory
$283.49
You save $31.50
-10%
No longer availableSearch Nationwide Inventory
$77.91
You save $8.66
-10%
No longer availableSearch Nationwide Inventory
$77.91
You save $8.66
-10%
4
Yamaha Motors
CRANK PIN 1583-11681-01-00
Required: 1
. PIN, CRANK 1
Supersedes: 583-11681-00-00
$62.99
You save $7.00
-10%
$75.59
You save $8.40
-10%
6
Yamaha Motors
Connecting Rod583-11651-00-00
Required: 1
. ROD, CONNECTING
$104.39
You save $11.60
-10%
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
7
Yamaha Motors
Piston2J2-11636-00-00
Required: 1
PISTON (0.50MM O/S)
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
7
Yamaha Motors
PISTON 4 O/S 1.002J2-11638-00-00
Required: 1
PISTON (1.00MM O/S)
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
7
Yamaha Motors
Piston 1 O/S 0.252J2-11635-00-00
Required: 1
PISTON (0.25MM O/S)
No longer availableSearch Nationwide Inventory
$81.89
You save $9.10
-10%
7
Yamaha Motors
PISTON 3 O/S 0.752J2-11637-00-00
Required: 1
PISTON (0.75MM O/S)
No longer availableSearch Nationwide Inventory
$53.09
You save $5.90
7
Yamaha Motors
PISTON (STD)2J2-11631-00-97
Required: 1
PISTON (STD)
Price unavailable
-10%
8
Yamaha Motors
583-11610-12-00583-11610-11-00
Required: 1
PISTON RING SET
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
8
Yamaha Motors
Piston Ring Set 2ND583-11610-22-00
Required: 1
PISTON RING SET
Supersedes: 583-11610-21-00
$71.09
You save $7.90
-10%
8
Yamaha Motors
Piston Ring Set - 4th583-11610-42-00
Required: 1
PISTON RING SET
Supersedes: 583-11610-41-00
No longer availableSearch Nationwide Inventory
$42.29
You save $4.70
-10%
8
Yamaha Motors
Piston Ring Set (STD)583-11610-02-00
Required: 1
PISTON RING SET
Supersedes: 583-11610-01-00
$71.99
You save $8.00
-10%
8
Yamaha Motors
583-11610-32-00583-11610-31-00
Required: 1
PISTON RING SET
No longer availableSearch Nationwide Inventory
$42.29
You save $4.70
-10%
$21.59
You save $2.40
-10%
$7.64
You save $0.85
-10%
11
Yamaha Motors
Bearing93306-30630-00
Required: 1
BEARING
Supersedes: 93306-30616-00
$71.99
You save $8.00
-10%
$13.94
You save $1.55
-20%
13
Yamaha Motors
Woodruff Key90280-05001-00
Required: 1
KEY, WOODRUFF
Supersedes: 90280-05013-00
In stock
Only 2 remaining
$10.79
You save $2.70
-10%
14
Yamaha Motors
Plate Washer90201-12593-00
Required: 1
WASHER, PLATE
$9.44
You save $1.05
-10%
15
Yamaha Motors
Spring Washer92990-12100-00
Required: 1
WASHER, SPRING
Supersedes: 92901-12100-00
$8.54
You save $0.95
-10%
$10.34
You save $1.15
-10%
$72.89
You save $8.10
-10%
$12.14
You save $1.35
-10%
19
Yamaha Motors
CAM CHAIN SPROCKET583-11549-00-00
Required: 1
SPROCKET, CAM CHAIN
$43.19
You save $4.80
-10%
20
Yamaha Motors
Absorber Plate583-11533-00-00
Required: 1
PLATE, ABSORBER
$6.74
You save $0.75
-10%
21
Yamaha Motors
PRIMARY DRIVE GEAR583-16111-00-00
Required: 1
GEAR, PRIMARY DRIVE
No longer availableSearch Nationwide Inventory
$156.59
You save $17.40
-10%
22
Yamaha Motors
Straight Key90282-07021-00
Required: 1
KEY, STRAIGHT
$8.54
You save $0.95
-50%
23
Yamaha Motors
Conical Spring Washer90208-16019-00
Required: 1
WASHER, CONICAL SPRING
In stock
Only 1 remaining
$4.75
You save $4.75
-10%
24
Yamaha Motors
Nut90170-16425-00
Required: 1
NUT
Supersedes: 90170-16182-00
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
