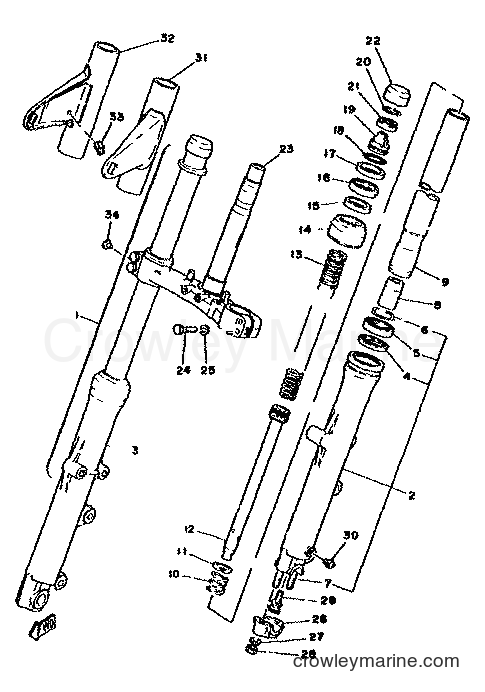

1979 Street Bike XS750 - XS750 (3G9) [999] FRONT FORK diagram
![Yamaha Motors XS750 (3G9) [999] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/ARDaOpQH.png)
-10%
1
Yamaha Motors
Front Fork Assembly2F3-23101-00-00
Required: 1
FRONT FORK ASSY
No longer availableSearch Nationwide Inventory
$258.29
You save $28.70
1
Yamaha Motors
FRONT FORK ASSY2K3-23101-30
Required: 1
FRONT FORK ASSY
Price unavailable
-10%
2
Yamaha Motors
Outer Tube1T4-23126-00-00
Required: 1
. TUBE, OUTER (LEFT)
No longer availableSearch Nationwide Inventory
$90.89
You save $10.10
-10%
3
Yamaha Motors
OUTER TUBE1T4-23136-00-00
Required: 1
. TUBE, OUTER (RIGHT)
No longer availableSearch Nationwide Inventory
$90.89
You save $10.10
-10%
4
Yamaha Motors
Spacer Seal1KH-23147-00-00
Required: 2
. . O-RING
Supersedes: 1T4-23147-00-00
$26.09
You save $2.90
-10%
5
Yamaha Motors
Oil Seal1KH-23145-00-00
Required: 2
. . OIL SEAL
Supersedes: 1T4-23145-00-00
$28.79
You save $3.20
-10%
6
Yamaha Motors
Oil Seal Clip34X-23156-00-00
Required: 2
. . CLIP, OIL SEAL
Supersedes: 1J3-23156-00-00
$8.54
You save $0.95
-10%
7
Yamaha Motors
Stud Bolt90116-08260-00
Required: 2
. . BOLT, STUD
No longer availableSearch Nationwide Inventory
$4.19
You save $0.46
-10%
8
Yamaha Motors
Oil Lock Spacer1J3-23166-00-00
Required: 2
. SPACER, OIL LOCK
No longer availableSearch Nationwide Inventory
$4.10
You save $0.46
-10%
9
Yamaha Motors
Inner Tube2F3-23110-00-00
Required: 2
. INNER TUBE COMP.1
No longer availableSearch Nationwide Inventory
$154.79
You save $17.20
-10%
10
Yamaha Motors
Rebound Spring1J3-23151-00-00
Required: 2
. SPRING, REBOUND
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
12
Yamaha Motors
CYL.COMP.FRT.FORK99999-01185-00
Required: 2
. CYLINDER COMP., FRONT FORK
Supersedes: 1T4-23170-00-00
No longer availableSearch Nationwide Inventory
$17.99
You save $2.00
-10%
13
Yamaha Motors
FRONT FORK SPRING2F3-23141-00-00
Required: 2
. SPRING, FRONT FORK
No longer availableSearch Nationwide Inventory
$31.49
You save $3.50
-10%
No longer availableSearch Nationwide Inventory
$15.29
You save $1.70
-10%
15
Yamaha Motors
Tank Cap Gasket23W-23163-00-00
Required: 2
. GASKET
Supersedes: 1J3-23163-00-00
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
No longer availableSearch Nationwide Inventory
$4.72
You save $0.52
-10%
No longer availableSearch Nationwide Inventory
$5.44
You save $0.60
-10%
18
Yamaha Motors
Tank Cap Gasket93210-221A0-00
Required: 2
. GASKET
Supersedes: 2F3-23114-00-00
$8.54
You save $0.95
-10%
19
Yamaha Motors
SPRING,ADJUSTER2F3-2311A-00-00
Required: 2
. SPRING, ADJUSTER
No longer availableSearch Nationwide Inventory
$13.36
You save $1.48
-10%
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
No longer availableSearch Nationwide Inventory
$7.22
You save $0.80
-10%
22
Yamaha Motors
Front Fork Cap2F3-23168-01-00
Required: 2
. CAP, FRONT FORK
Supersedes: 2F3-23168-00-00
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
23
Yamaha Motors
. UNDER BRACKET COMP.1T5-23340-31-33
Required: 1
. UNDER BRACKET COMP.
Price unavailable
-10%
23
Yamaha Motors
UNDER BRACKET1T4-23340-01-33
Required: 1
. UNDER BRACKET COMP.
Supersedes: 1T4-23340-00-33
No longer availableSearch Nationwide Inventory
$187.19
You save $20.80
-15%
24
Yamaha Motors
BOLT97014-08040-00
Required: 4
. BOLT
Supersedes: 97323-08040-00
In stock
5+ in stock
$7.22
You save $1.27
-15%
25
Yamaha Motors
Spring Washer92990-08100-00
Required: 4
. WASHER, SPRING
Supersedes: 92901-08100-00
In stock
5+ in stock
$4.76
You save $0.84
-10%
26
Yamaha Motors
AXLE HOLDER1J7-23167-00-00
Required: 1
. HOLDER, AXLE
No longer availableSearch Nationwide Inventory
$8.17
You save $0.91
-15%
27
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
. WASHER, PLATE
Supersedes: 92901-08600-00
In stock
5+ in stock
$2.38
You save $0.42
-10%
28
Yamaha Motors
Self-Locking Nut90185-08089-00
Required: 2
. NUT, SELF-LOCKING
Supersedes: 90185-08054-00
$9.44
You save $1.05
-10%
29
Yamaha Motors
HEX SOCKET HEAD BOLT3M7-23181-00-00
Required: 2
. BOLT, HEXAGON SOCKET HEAD
Supersedes: 1E7-23181-00-00
$8.54
You save $0.95
-10%
30
Yamaha Motors
Drain Plug1E7-23119-00-00
Required: 2
. PLUG, DRAIN
No longer availableSearch Nationwide Inventory
$1.85
You save $0.21
-10%
31
Yamaha Motors
UPPER COVER1J7-23121-01-93
Required: 1
COVER, UPPER 1
No longer availableSearch Nationwide Inventory
$41.39
You save $4.60
-10%
32
Yamaha Motors
COVER,UPPER 21J7-23131-01-93
Required: 1
COVER, UPPER 2
No longer availableSearch Nationwide Inventory
$35.99
You save $4.00
-10%
No longer availableSearch Nationwide Inventory
$9.44
You save $1.05
-10%
No longer availableSearch Nationwide Inventory
$1.57
You save $0.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
