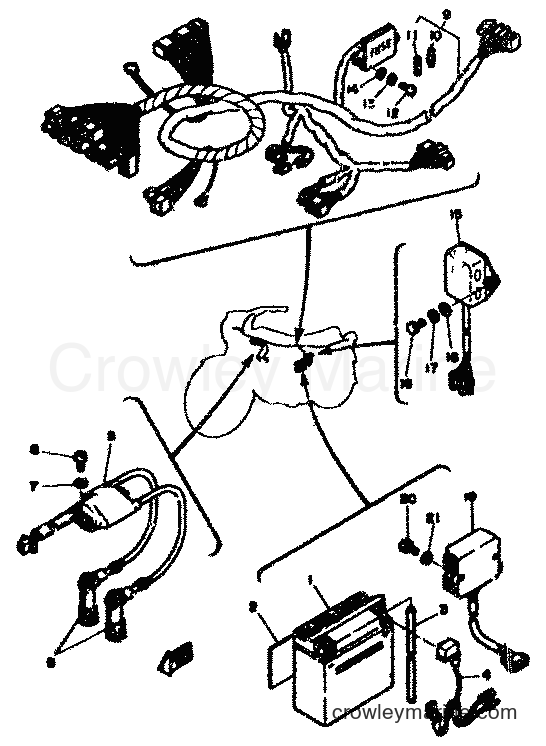

1981 Street Bike RD250LC - RD250LC (4L1) [999] ELECTRICAL 1 diagram
![Yamaha Motors RD250LC (4L1) [999] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/HG5D6GE9.png)
-10%
1
Yamaha Motors
12N5.5-3B GS BATTERY12N-553BA-00-00
Required: 1
BATTERY ASSY
Supersedes: 131-82110-79-00
No longer availableSearch Nationwide Inventory
$44.09
You save $4.90
2
Yamaha Motors
SEAT, BATTERY3W1-82122-00
Required: 1
SEAT, BATTERY
Price unavailable
-10%
3
Yamaha Motors
Hose (3GG)90445-084J0-00
Required: 1
HOSE
Supersedes: 90445-08336-00
$18.89
You save $2.10
-10%
4
Yamaha Motors
Wire Lead51X-82117-00-00
Required: 1
WIRE, LEAD
Supersedes: 4L0-82117-00-00
$20.69
You save $2.30
-15%
7
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$3.02
You save $0.53
9
Yamaha Motors
WIRE HARNESS ASSY4L0-82590-40
Required: 1
WIRE HARNESS ASSY
Price unavailable
-10%
$16.19
You save $1.80
-10%
$7.64
You save $0.85
-10%
12
Yamaha Motors
Pan Head Screw98511-05020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05020-00
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-50%
13
Yamaha Motors
Spring Washer92902-05100-00
Required: 2
WASHER, SPRING
In stock
Only 2 remaining
$0.77
You save $0.77
-15%
14
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-05600-00
In stock
Only 1 remaining
$0.68
You save $0.12
15
Yamaha Motors
C.D.I. UNIT ASSY4L0-85540-50
Required: 1
C.D.I. UNIT ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
-15%
17
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-50%
18
Yamaha Motors
Plain Washer90201-06052-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06336-00
In stock
Only 5 remaining
$1.25
You save $1.25
-10%
19
Yamaha Motors
RECTIFIER/REGULATOR ASSEMBLY2J2-81960-A1-00
Required: 1
RECTIFIER & REGULATOR ASSY
Supersedes: 4L0-81960-A0-00
No longer availableSearch Nationwide Inventory
$198.89
You save $22.10
-15%
20
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
-15%
21
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$3.02
You save $0.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
