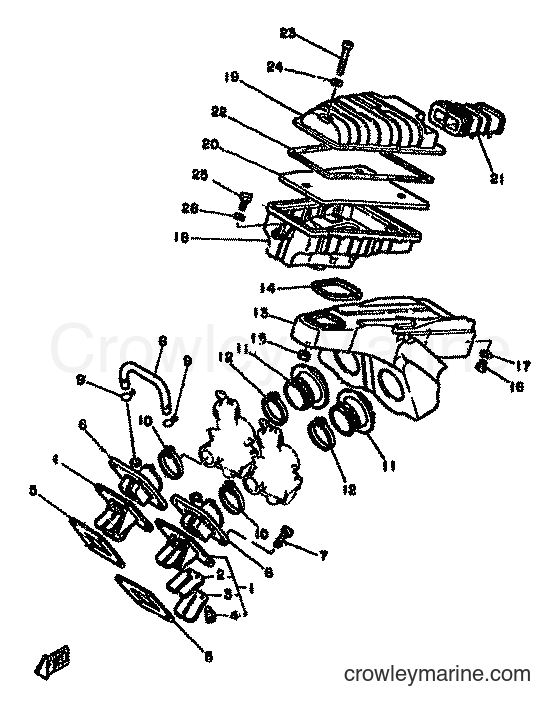

1981 Street Bike RD250LC - RD250LC (4L1) [999] INTAKE diagram
![Yamaha Motors RD250LC (4L1) [999] - INTAKE](https://cdn.crowleymarine.com/yamaha/NMn903WB.png)
1
Yamaha Motors
REED VALVE ASSY4L0-13610-01
Required: 2
REED VALVE ASSY
Price unavailable
2
Yamaha Motors
. REED, VALVE4L0-13613-00
Required: 2
. REED, VALVE
Price unavailable
-10%
3
Yamaha Motors
REED VALVE STOPPER345-13616-70-00
Required: 2
. STOPPER, REED VALVE
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
4
Yamaha Motors
98501-03008-0097602-03108-00
Required: 4
. SCREW, PAN HEAD WITH WASHER
No longer availableSearch Nationwide Inventory
$0.90
You save $0.10
-50%
5
Yamaha Motors
Valve Seat Gasket87A-13621-00-00
Required: 2
GASKET, VALVE SEAT
Supersedes: 314-13621-02-00
In stock
Only 2 remaining
$4.75
You save $4.75
6
Yamaha Motors
JOINT, CARBURETOR2R9-13565-00
Required: 2
JOINT, CARBURETOR
Price unavailable
-50%
7
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 8
BOLT
Supersedes: 91316-06025-00
In stock
Only 1 remaining
$1.33
You save $1.33
8
Yamaha Motors
PIPE2R9-14465-00
Required: 1
PIPE
Price unavailable
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
11
Yamaha Motors
JOINT, AIR CLEANER 14L0-14453-00
Required: 2
JOINT, AIR CLEANER 1
Price unavailable
-10%
$7.64
You save $0.85
13
Yamaha Motors
SILENCER, INTAKE 24L0-14441-00
Required: 1
SILENCER, INTAKE 2
Price unavailable
14
Yamaha Motors
SEAL4L0-14452-00
Required: 1
SEAL
Price unavailable
-10%
15
Yamaha Motors
95701-06500-0095701-06100-00
Required: 2
NUT, FLANGE
Supersedes: 95702-06100-00
No longer availableSearch Nationwide Inventory
$2.02
You save $0.23
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-15%
17
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
18
Yamaha Motors
CASE, AIR CLEANER 14L0-14411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
19
Yamaha Motors
CAP, CLEANER CASE 14L0-14412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
20
Yamaha Motors
ELEMENT, AIR CLEANER4L0-14451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
21
Yamaha Motors
DUCT4L0-14437-00
Required: 1
DUCT
Price unavailable
-10%
$17.99
You save $2.00
-10%
23
Yamaha Motors
Pan Head Screw98580-06550-00
Required: 3
SCREW, PAN HEAD
Supersedes: 92501-06050-00
$8.54
You save $0.95
-15%
24
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$1.67
You save $0.19
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
