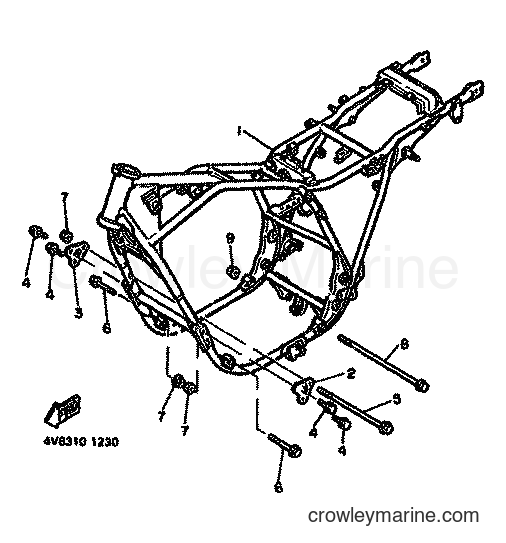

1981 Street Bike XJ550 - XJ550 (4V8) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XJ550 (4V8) [999] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.4V8-21110-10-33
Required: 1
FRAME COMP.
Price unavailable
-10%
Washer Based Bolt
4
Yamaha Motors
Washer Based Bolt90105-08066-00
Required: 4
BOLT, WASHER BASED
Supersedes: 90105-08155-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Washer Based Bolt
5
Yamaha Motors
Washer Based Bolt90105-10055-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
FLANGE NUT (95704-10500-00)
7
Yamaha Motors
FLANGE NUT (95704-10500-00)90179-10658-00
Required: 3
NUT
Supersedes: 90179-10247-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
