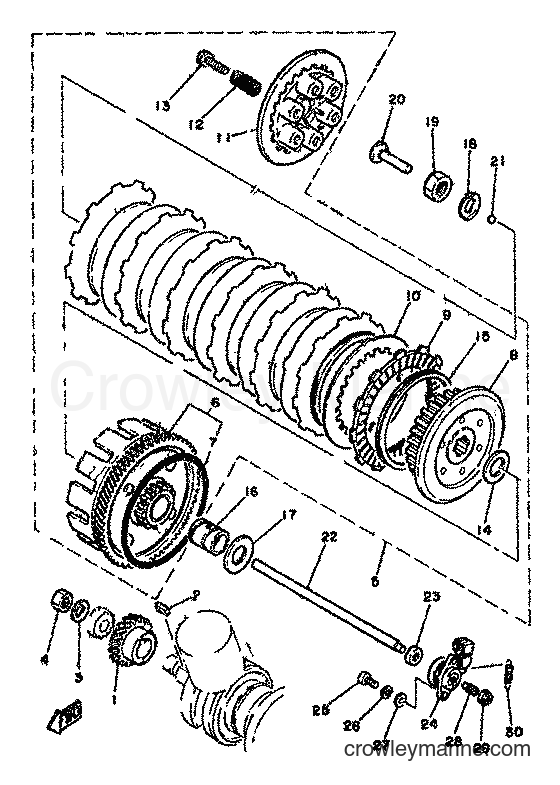

1982 Street Bike RD350LC - RD350LC (4L0) [999] CLUTCH diagram
![Yamaha Motors RD350LC (4L0) [999] - CLUTCH](https://cdn.crowleymarine.com/yamaha/Xtg0rN43.png)
-10%
1
Yamaha Motors
4L0-16111-00-YX4L0-16111-00-00
Required: 1
GEAR, PRIMARY DRIVE
$97.19
You save $10.80
-10%
2
Yamaha Motors
STRAIGHT KEY90282-07023-00
Required: 1
KEY, STRAIGHT
$9.44
You save $1.05
-50%
3
Yamaha Motors
Conical Spring Washer90208-16019-00
Required: 1
WASHER, CONICAL SPRING
In stock
Only 1 remaining
$4.75
You save $4.75
-10%
4
Yamaha Motors
Nut90170-16425-00
Required: 1
NUT
Supersedes: 90170-16182-00
$9.44
You save $1.05
5
Yamaha Motors
CLUTCH ASSY4L0-16300-01
Required: 1
CLUTCH ASSY
Price unavailable
6
Yamaha Motors
. PRIMARY DRIVEN GEAR COMP.4L0-16150-02
Required: 1
. PRIMARY DRIVEN GEAR COMP.
Price unavailable
-10%
$12.59
You save $1.40
-10%
8
Yamaha Motors
CLUTCH BOSS1A0-16371-00-00
Required: 1
. BOSS, CLUTCH
$78.29
You save $8.70
-10%
9
Yamaha Motors
5Y1-16331-01-004L0-16321-01-00
Required: 7
. PLATE, FRICTION
Supersedes: 4L0-16321-00-00
No longer availableSearch Nationwide Inventory
$13.49
You save $1.50
-10%
10
Yamaha Motors
PLATE, CLUTCH 2498-16325-10-00
Required: 6
. PLATE, CLUTCH 2
Supersedes: 498-16325-00-00
$14.39
You save $1.60
-10%
11
Yamaha Motors
PRESSURE PLATE 11A0-16351-00-00
Required: 1
. PLATE, PRESSURE 1
No longer availableSearch Nationwide Inventory
$36.89
You save $4.10
-10%
12
Yamaha Motors
Compression Spring90501-234L3-00
Required: 6
. SPRING, COMPRESSION
Supersedes: 90501-23428-00
$9.44
You save $1.05
-10%
13
Yamaha Motors
Screw with Washer90159-06010-00
Required: 6
. SCREW, WITH WASHER
$7.64
You save $0.85
-10%
14
Yamaha Motors
Thrust Plate360-16154-00-00
Required: 1
. PLATE, THRUST 1
$21.59
You save $2.40
-10%
15
Yamaha Motors
Cushion Ring278-16367-00-00
Required: 7
. RING, CUSHION
$24.29
You save $2.70
-10%
$42.29
You save $4.70
-10%
17
Yamaha Motors
Thrust Plate360-16154-00-00
Required: 1
PLATE, THRUST 1
$21.59
You save $2.40
-10%
$10.34
You save $1.15
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
$20.69
You save $2.30
-50%
In stock
Only 3 remaining
$1.45
You save $1.45
-10%
$48.59
You save $5.40
-10%
23
Yamaha Motors
SDO TYPE OIL SEAL93109-08061-00
Required: 1
SEAL, PUSH ROD
Supersedes: 237-15389-00-00
$7.64
You save $0.85
24
Yamaha Motors
PUSH LEVER ASSY4L0-16340-01
Required: 1
PUSH LEVER ASSY
Price unavailable
-50%
25
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98501-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
-15%
26
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-15%
27
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, PLATE
Supersedes: 92901-05600-00
In stock
Only 1 remaining
$0.68
You save $0.12
-10%
$10.34
You save $1.15
-10%
$7.64
You save $0.85
-50%
30
Yamaha Motors
TENSION SPRING90506-11488-00
Required: 1
SPRING, TENSION
Supersedes: 90506-09232-00
In stock
Only 1 remaining
$5.25
You save $5.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
