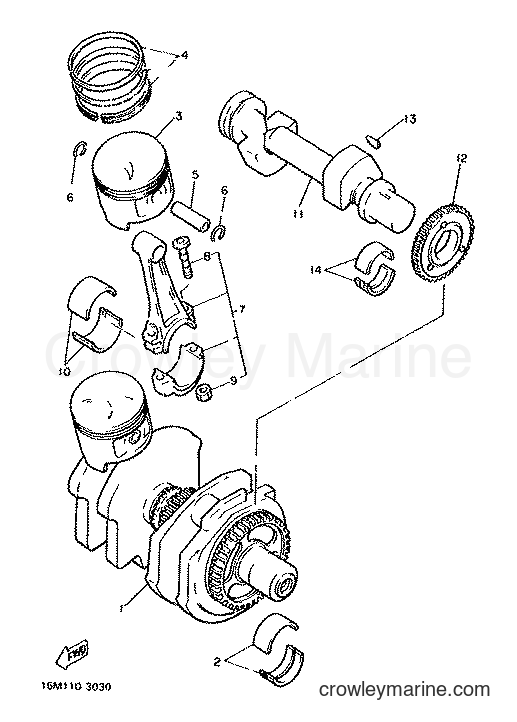

1982 Street Bike XS400 - XS400 (12E) [999] CRANKSHAFT & PISTON diagram
![Yamaha Motors XS400 (12E) [999] - CRANKSHAFT & PISTON](https://cdn.crowleymarine.com/yamaha/0037LfWO.png)
-10%
1
Yamaha Motors
Crankshaft Assembly16M-11400-00-00
Required: 1
CRANKSHAFT ASSY
No longer availableSearch Nationwide Inventory
$395.99
You save $44.00
-10%
2
Yamaha Motors
Crankshaft Plain Bearing12R-11416-10-00
Required: 6
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
2
Yamaha Motors
Crankshaft Plain Bearing12R-11416-30-00
Required: 6
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
2
Yamaha Motors
Crankshaft Plain Bearing12R-11416-00-00
Required: 6
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$28.79
You save $3.20
-10%
2
Yamaha Motors
Crankshaft Plain Bearing12R-11416-20-00
Required: 6
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$26.99
You save $3.00
-10%
3
Yamaha Motors
Piston12R-11636-00-00
Required: 2
PISTON (0.50MM O/S)
No longer availableSearch Nationwide Inventory
$63.89
You save $7.10
-10%
3
Yamaha Motors
PISTON 4 O/S 1.0012R-11638-00-00
Required: 2
PISTON (1.00MM O/S)
No longer availableSearch Nationwide Inventory
$62.09
You save $6.90
-10%
No longer availableSearch Nationwide Inventory
$63.89
You save $7.10
-10%
4
Yamaha Motors
Piston Ring Set 2ND12R-11610-20-00
Required: 2
PISTON RING SET
No longer availableSearch Nationwide Inventory
$59.39
You save $6.60
-10%
4
Yamaha Motors
Piston Ring Set (STD)26M-11610-40-00
Required: 2
PISTON RING SET
Supersedes: 12R-11610-00-00
$31.49
You save $3.50
-10%
No longer availableSearch Nationwide Inventory
$28.79
You save $3.20
-10%
5
Yamaha Motors
Piston Pin29U-11633-00-00
Required: 2
PIN, PISTON
Supersedes: 2A2-11633-00-00
$41.39
You save $4.60
-10%
$8.54
You save $0.95
-10%
7
Yamaha Motors
CONNECTING ROD Assembly12E-Y1165-00-00
Required: 2
CONNECTING ROD ASSY
No longer availableSearch Nationwide Inventory
$51.07
You save $5.67
-10%
8
Yamaha Motors
Con Rod Bolt12R-11654-00-00
Required: 2
. BOLT, CONNECTING ROD
$5.84
You save $0.65
-10%
$9.44
You save $1.05
-10%
10
Yamaha Motors
CONNECTER ROD PLANE BEARING12E-11656-20-00
Required: 4
PLANE BEARING, CONNECTING ROD
No longer availableSearch Nationwide Inventory
$19.79
You save $2.20
-10%
10
Yamaha Motors
CONNECTER ROD PLANE BEARING12E-11656-00-00
Required: 4
PLANE BEARING, CONNECTING ROD
No longer availableSearch Nationwide Inventory
$9.89
You save $1.10
-10%
10
Yamaha Motors
CONNECTER ROD PLANE BEARING12E-11656-10-00
Required: 4
PLANE BEARING, CONNECTING ROD
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
12
Yamaha Motors
BALANCER WEIGHT12R-11530-00-00
Required: 1
BALANCER WEIGHT GEAR COMP.
No longer availableSearch Nationwide Inventory
$53.99
You save $6.00
-10%
13
Yamaha Motors
Woodruff Key90280-04005-00
Required: 1
KEY, WOODRUFF
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
14
Yamaha Motors
BALANCE PLANE BEARING26H-11413-62-00
Required: 4
PLANE BEARING, BALANCE WEIGHT
Supersedes: 12R-11413-20-00
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
14
Yamaha Motors
BALANCE PLANE BEARING26H-11413-52-00
Required: 4
PLANE BEARING, BALANCE WEIGHT
Supersedes: 12R-11413-10-00
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
14
Yamaha Motors
BALANCE PLANE BEARING26H-11413-32-00
Required: 4
PLANE BEARING, BALANCE WEIGHT
Supersedes: 12R-11413-00-00
$10.79
You save $1.20
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
