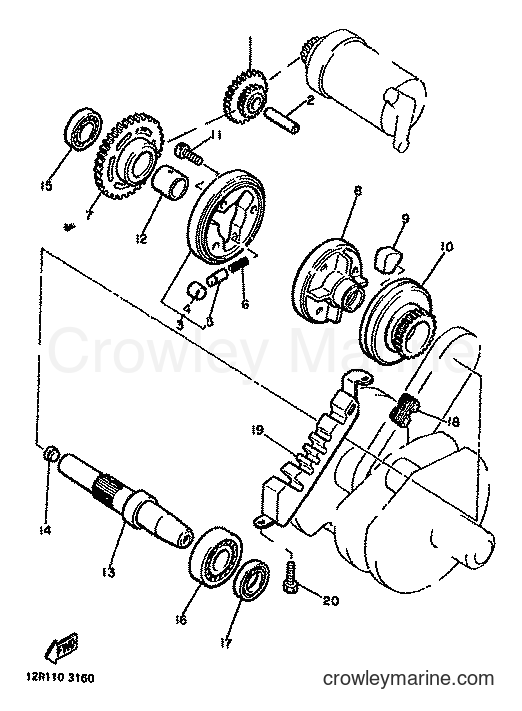

1982 Street Bike XS400 - XS400 (12E) [999] STARTER CLUTCH diagram
![Yamaha Motors XS400 (12E) [999] - STARTER CLUTCH](https://cdn.crowleymarine.com/yamaha/EzBxMR2i.png)
-10%
1
Yamaha Motors
IDLER GEAR 11AE-15512-00-00
Required: 1
GEAR, IDLER 1
Supersedes: 12R-15512-00-00
No longer availableSearch Nationwide Inventory
$76.49
You save $8.50
-10%
No longer availableSearch Nationwide Inventory
$9.89
You save $1.10
-10%
3
Yamaha Motors
STARTER CLUTCH OUTER ASSEMBLY3GM-15580-00-00
Required: 1
STARTER CLUTCH OUTER ASSY
Supersedes: 4G0-15580-00-00
No longer availableSearch Nationwide Inventory
$201.59
You save $22.40
-10%
4
Yamaha Motors
Dowel Pin93615-12088-00
Required: 3
. PIN, DOWEL
$7.64
You save $0.85
-10%
5
Yamaha Motors
Starter Clutch Spring Cap1J7-15583-01-00
Required: 3
. CAP, STARTER CLUTCH SPRING
$17.99
You save $2.00
-10%
6
Yamaha Motors
Compression Spring90501-04623-00
Required: 3
SPRING, COMPRESSION
$7.64
You save $0.85
-10%
7
Yamaha Motors
Idler Gear12R-15517-00-00
Required: 1
GEAR, IDLER 2
No longer availableSearch Nationwide Inventory
$128.69
You save $14.30
-10%
8
Yamaha Motors
Starter Wheel12R-15524-00-00
Required: 1
WHEEL, STARTER
No longer availableSearch Nationwide Inventory
$163.79
You save $18.20
-10%
9
Yamaha Motors
Absorber4H7-16155-01-00
Required: 8
ABSORBER 1
Supersedes: 4H7-16155-00-00
$5.84
You save $0.65
-10%
10
Yamaha Motors
Starter Sprocket 212R-15519-00-00
Required: 1
SPROCKET, STARTER 2
No longer availableSearch Nationwide Inventory
$56.33
You save $6.26
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$17.54
You save $1.95
-10%
No longer availableSearch Nationwide Inventory
$51.86
You save $5.76
-10%
$3.83
You save $0.42
-10%
15
Yamaha Motors
Bearing93306-00426-00
Required: 1
BEARING
Supersedes: 93306-00401-00
$42.29
You save $4.70
-10%
$38.69
You save $4.30
-10%
$11.24
You save $1.25
-10%
18
Yamaha Motors
PRIMARY CHAIN12R-11456-01-00
Required: 1
CHAIN, PRIMARY
Supersedes: 12R-11456-00-00
$135.89
You save $15.10
-10%
19
Yamaha Motors
Upper Guide12E-11474-00-00
Required: 1
GUIDE, UPPER
Supersedes: 12R-11474-00-00
No longer availableSearch Nationwide Inventory
$54.89
You save $6.10
-10%
20
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06043-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$3.74
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
