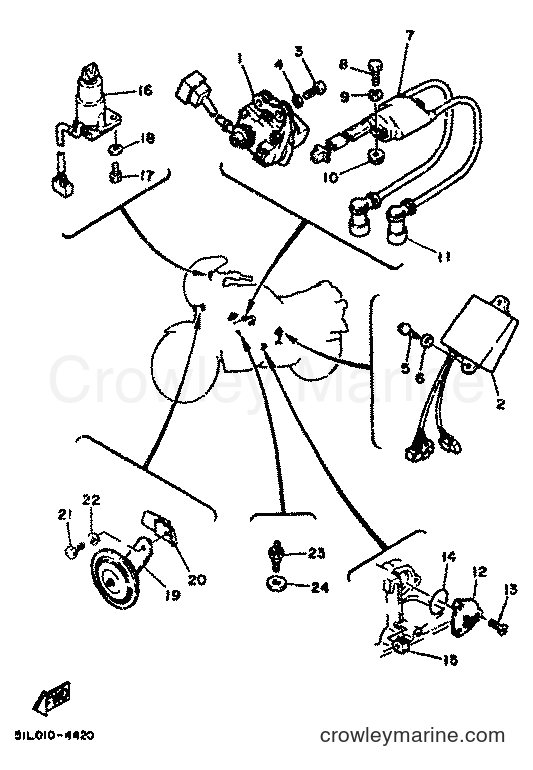

1985 Street Bike RD350LC - RD350LC (57V) [999] ELECTRICAL 2 diagram
![Yamaha Motors RD350LC (57V) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/lDrSNXCW.png)
-10%
1
Yamaha Motors
SERVOMOTOR ASSEMBLY29L-85820-M2-00
Required: 1
SERVO MOTOR ASSY
No longer availableSearch Nationwide Inventory
$437.39
You save $48.60
-10%
2
Yamaha Motors
Control Unit Assembly51L-85830-M0-00
Required: 1
CONTROL UNIT ASSY
No longer availableSearch Nationwide Inventory
$97.19
You save $10.80
-10%
3
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92502-06025-00
$3.65
You save $0.40
-15%
4
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
5
Yamaha Motors
Tapping Screw97780-60116-00
Required: 2
SCREW, TAPPING
Supersedes: 97701-60116-00
$2.43
You save $0.27
-15%
6
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER, PLAIN
Supersedes: 92901-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-10%
7
Yamaha Motors
IGNITION COIL ASSEMBLY4L0-82310-50-00
Required: 1
IGNITION COIL ASSY
No longer availableSearch Nationwide Inventory
$206.09
You save $22.90
-10%
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
-15%
9
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
10
Yamaha Motors
95701-06500-0095701-06100-00
Required: 1
NUT, FLANGE
Supersedes: 95702-06100-00
No longer availableSearch Nationwide Inventory
$2.02
You save $0.23
-10%
11
Yamaha Motors
PLUG CAP ASSY4BP-82370-01-00
Required: 2
PLUG CAP ASSY
Supersedes: 29L-82370-00-00
$35.09
You save $3.90
-10%
12
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1L9-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 278-82540-01-00
$46.79
You save $5.20
-10%
13
Yamaha Motors
Flat Screw98707-05012-00
Required: 3
SCREW, FLAT HEAD
Supersedes: 98702-05012-00
$1.67
You save $0.19
-10%
14
Yamaha Motors
O-Ring93210-29196-00
Required: 1
O-RING
Supersedes: 93210-29147-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$4.14
You save $0.46
16
Yamaha Motors
MAIN SWITCH STEERING LOCK51L-82501-31
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.67
You save $0.19
-15%
18
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92902-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
No longer availableSearch Nationwide Inventory
$89.99
You save $10.00
20
Yamaha Motors
STAY, HORN51L-83378-00
Required: 1
STAY, HORN
Price unavailable
-10%
21
Yamaha Motors
Bolt97017-08016-00
Required: 1
BOLT
Supersedes: 97326-08016-00
$8.54
You save $0.95
-10%
22
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-08100-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$79.25
You save $8.81
-20%
24
Yamaha Motors
Plate Washer90201-10118-00
Required: 1
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
