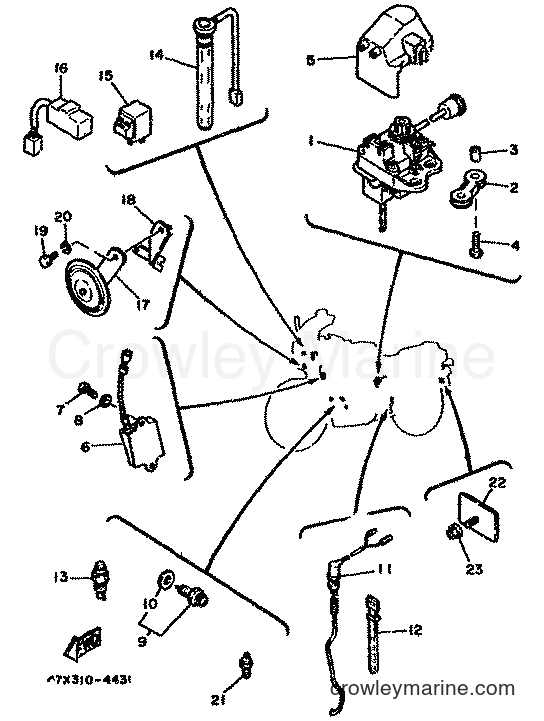

1985 Street Bike RD500LC - RD500LC (1GE) [999] ELECTRICAL 2 diagram
![Yamaha Motors RD500LC (1GE) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/MGzbAHWV.png)
1
Yamaha Motors
SERVO MOTOR ASSY47X-85820-00
Required: 1
SERVO MOTOR ASSY
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
3
Yamaha Motors
COLLAR90387-06088-00
Required: 2
COLLAR
Supersedes: 90387-064A5-00
$2.03
-10%
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
5
Yamaha Motors
COVER, WIRE47X-85825-00
Required: 1
COVER, WIRE
Price unavailable
6
Yamaha Motors
CONTROL UNIT ASSY47X-85830-M0
Required: 1
CONTROL UNIT ASSY
Price unavailable
-15%
7
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
-15%
8
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-10%
9
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 341-82540-01-00
$37.79
You save $4.20
-10%
10
Yamaha Motors
Tank Cap Gasket296-82543-00-00
Required: 1
. GASKET
Supersedes: 341-82543-00-00
$5.39
You save $0.60
11
Yamaha Motors
STOP SWITCH ASSY47X-82530-00
Required: 1
STOP SWITCH ASSY
Price unavailable
-10%
12
Yamaha Motors
CLAMP90464-30014-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-00-00
$5.04
You save $0.56
-10%
13
Yamaha Motors
Thermo Switch Assembly47X-82560-00-00
Required: 1
THERMO SWITCH ASSY
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
14
Yamaha Motors
OIL LUL GAUGE ASY47X-85720-02-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 47X-85720-01-00
No longer availableSearch Nationwide Inventory
$80.09
You save $8.90
15
Yamaha Motors
FLASHER RELAY ASSY4K0-83350-20
Required: 1
FLASHER RELAY ASSY
Price unavailable
-10%
16
Yamaha Motors
FLASHER CANCL UNIT1A0-83395-03-00
Required: 1
FLASHER CANCELLING UNIT
No longer availableSearch Nationwide Inventory
$116.09
You save $12.90
-10%
No longer availableSearch Nationwide Inventory
$89.99
You save $10.00
18
Yamaha Motors
STAY, HORN47X-83378-00
Required: 1
STAY, HORN
Price unavailable
-10%
19
Yamaha Motors
Bolt97017-08016-00
Required: 1
BOLT
Supersedes: 97326-08016-00
$8.54
You save $0.95
-10%
20
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-08100-00
$8.54
You save $0.95
-10%
$103.49
You save $11.50
-10%
22
Yamaha Motors
4KM-85130-00-003G1-85130-01-00
Required: 1
REAR REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$11.69
You save $1.30
-10%
No longer availableSearch Nationwide Inventory
$2.43
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
