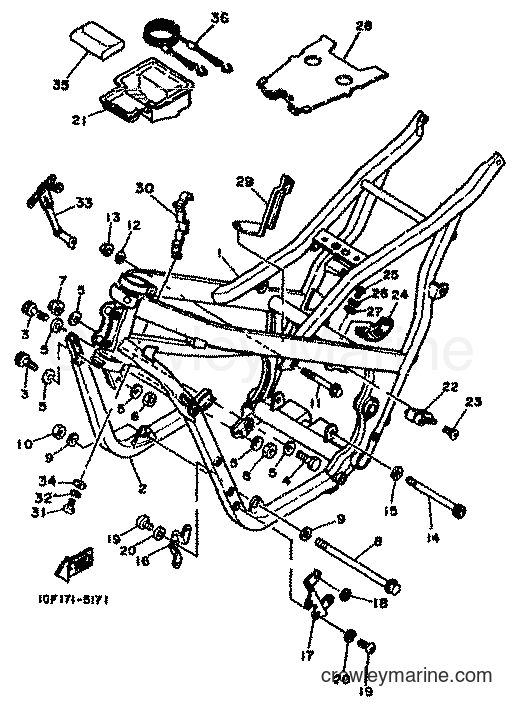

1985 Street Bike RD500LC - RD500LC (1GE) [999] FRAME diagram
![Yamaha Motors RD500LC (1GE) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/IsmWigvw.png)
1
Yamaha Motors
FRAME COMP.1GE-21110-10-35
Required: 1
FRAME COMP.
Price unavailable
2
Yamaha Motors
DOWN TUBE COMP.47X-21140-00-35
Required: 1
DOWN TUBE COMP.
Price unavailable
-10%
3
Yamaha Motors
BOLT91317-08035-00
Required: 3
BOLT
Supersedes: 91316-08035-00
$7.64
You save $0.85
4
Yamaha Motors
BOLT90101-08629
Required: 1
BOLT
Price unavailable
-50%
5
Yamaha Motors
Plate Washer90201-086J0-00
Required: 8
WASHER, PLATE
In stock
Only 2 remaining
$5.25
You save $5.25
-10%
6
Yamaha Motors
Nut95337-08600-00
Required: 3
NUT
Supersedes: 95316-08600-00
$8.54
You save $0.95
-10%
7
Yamaha Motors
NUT95617-08100-00
Required: 1
NUT, U
Supersedes: 95616-08100-00
$9.44
You save $1.05
-10%
8
Yamaha Motors
Flange Bolt90105-08346-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
-10%
9
Yamaha Motors
Washer (6TC)92907-08200-00
Required: 2
WASHER, PLAIN
Supersedes: 92906-08200-00
$8.54
You save $0.95
-10%
10
Yamaha Motors
Nut95337-08600-00
Required: 1
NUT
Supersedes: 95316-08600-00
$8.54
You save $0.95
11
Yamaha Motors
BOLT97316-08115
Required: 1
BOLT
Price unavailable
-10%
12
Yamaha Motors
Plate Washer90201-087F0-00
Required: 1
WASHER, PLATE
Supersedes: 90201-083F7-00
$5.84
You save $0.65
-15%
13
Yamaha Motors
Flange Nut95707-08500-00
Required: 1
NUT, FLANGE
Supersedes: 95706-08500-00
$1.66
You save $0.29
14
Yamaha Motors
BOLT91316-08165
Required: 1
BOLT
Price unavailable
-10%
15
Yamaha Motors
Washer (6TC)92907-08200-00
Required: 1
WASHER, PLAIN
Supersedes: 92906-08200-00
$8.54
You save $0.95
16
Yamaha Motors
BRACKET, REGULATOR47X-21287-01
Required: 1
BRACKET, REGULATOR
Price unavailable
17
Yamaha Motors
BRACKET, COIL51X-21359-00
Required: 1
BRACKET, COIL
Price unavailable
-10%
18
Yamaha Motors
Plate Washer90201-07081-00
Required: 2
WASHER, PLATE
$10.34
You save $1.15
-10%
19
Yamaha Motors
98516-06020-0092506-06020-00
Required: 3
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.98
You save $0.22
-50%
20
Yamaha Motors
Spring Washer92907-06100-00
Required: 3
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
21
Yamaha Motors
BOX47X-21171-00
Required: 1
BOX
Price unavailable
22
Yamaha Motors
HELMET HANGER ASSY47X-21308-00
Required: 1
HELMET HANGER ASSY
Price unavailable
-10%
$9.44
You save $1.05
24
Yamaha Motors
BRACKET 647X-2139H-00
Required: 1
BRACKET 6
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.67
You save $0.19
-10%
26
Yamaha Motors
Wave Washer92907-06700-00
Required: 1
WASHER, WAVE
Supersedes: 92901-06700-00
$1.80
You save $0.20
-15%
27
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
28
Yamaha Motors
PROTECTOR1GE-2117G-00
Required: 1
PROTECTOR
Price unavailable
29
Yamaha Motors
BRACKET, BATTERY BOX 347X-21395-00
Required: 1
BRACKET, BATTERY BOX 3
Price unavailable
30
Yamaha Motors
BRACKET, IGNITION COIL47X-2135Y-00
Required: 1
BRACKET, IGNITION COIL
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.67
You save $0.19
-15%
32
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
33
Yamaha Motors
BRACKET 747X-2139J-00
Required: 1
BRACKET 7
Price unavailable
-15%
34
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER, PLAIN
Supersedes: 92901-06200-00
In stock
5+ in stock
$0.85
You save $0.15
35
Yamaha Motors
TOOL KIT47X-28100-00
Required: 1
TOOL KIT
Price unavailable
36
Yamaha Motors
WIRE, HOOK47X-2814A-00
Required: 1
WIRE, HOOK
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
