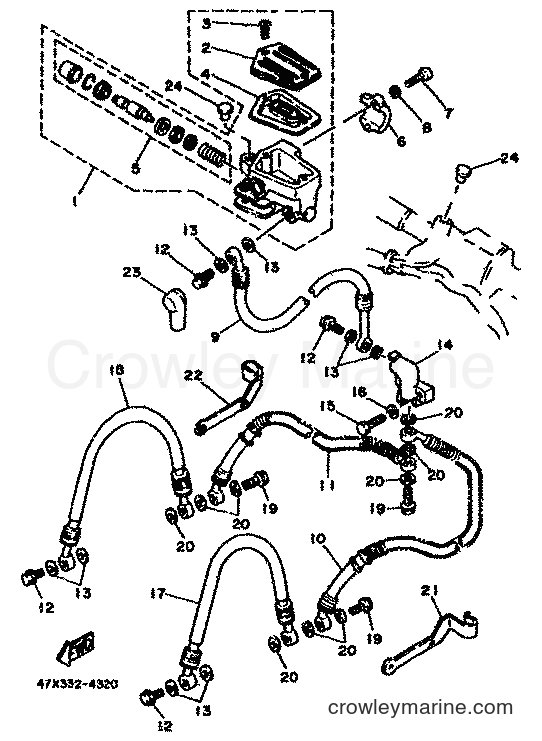

1985 Street Bike RD500LC - RD500LC (1GE) [999] FRONT MASTER CYLINDER diagram
![Yamaha Motors RD500LC (1GE) [999] - FRONT MASTER CYLINDER](https://cdn.crowleymarine.com/yamaha/12arTmni.png)
-15%
1
Yamaha Motors
MASTER CYLINDER ASSY3HE-2583T-02-00
Required: 1
MASTER CYLINDER ASSY
Supersedes: 36Y-25850-00-00
$186.95
You save $33.04
-10%
2
Yamaha Motors
Reservoir Cap3HE-25852-01-00
Required: 1
. CAP, RESERVOIR
Supersedes: 36Y-25852-00-00
$29.69
You save $3.30
-10%
3
Yamaha Motors
Flat Screw98707-04012-00
Required: 2
. SCREW, FLAT HEAD
Supersedes: 98706-04012-00
$1.67
You save $0.19
-10%
4
Yamaha Motors
DIAPHRAGM RESERVOR36Y-25854-00-00
Required: 1
. DIAPHRAGM, RESERVOIR
$35.09
You save $3.90
-10%
5
Yamaha Motors
Master Cylinder Kit36Y-W0041-00-00
Required: 1
. CYLINDER KIT,MASTER
$86.39
You save $9.60
-10%
6
Yamaha Motors
Master Cylinder Bracket4L0-25867-00-00
Required: 1
BRACKET, MASTER CYLINDER
$32.39
You save $3.60
-50%
7
Yamaha Motors
Bolt (4MY)91317-06025-00
Required: 2
BOLT
Supersedes: 91316-06025-00
In stock
Only 1 remaining
$1.33
You save $1.33
-50%
8
Yamaha Motors
Spring Washer92907-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
9
Yamaha Motors
HOSE, BRAKE 147X-25872-00
Required: 1
HOSE, BRAKE 1
Price unavailable
10
Yamaha Motors
HOSE, BRAKE 247X-25873-01
Required: 1
HOSE, BRAKE 2
Price unavailable
11
Yamaha Motors
HOSE, BRAKE 247X-25873-10
Required: 1
HOSE, BRAKE 2
Price unavailable
-10%
12
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 4
BOLT, UNION
Supersedes: 90401-10096-00
$11.24
You save $1.25
-20%
13
Yamaha Motors
Plate Washer90201-10118-00
Required: 8
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
14
Yamaha Motors
JOINT47X-25885-00
Required: 1
JOINT
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
-50%
16
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
17
Yamaha Motors
HOSE, BRAKE47X-25874-00
Required: 1
HOSE, BRAKE
Price unavailable
18
Yamaha Motors
HOSE, BRAKE47X-25874-10
Required: 1
HOSE, BRAKE
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-20%
20
Yamaha Motors
Plate Washer90201-10118-00
Required: 9
WASHER, PLATE
In stock
Only 5 remaining
$3.04
You save $0.76
21
Yamaha Motors
HOLDER, BRAKE HOSE 147X-25875-00
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
22
Yamaha Motors
HOLDER, BRAKE HOSE 247X-25876-00
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
-10%
23
Yamaha Motors
MASTER CYLINDER BOOT4L0-25862-01-00
Required: 1
BOOT, MASTER CYLINDER
Supersedes: 4L0-25862-00-00
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
$9.44
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
