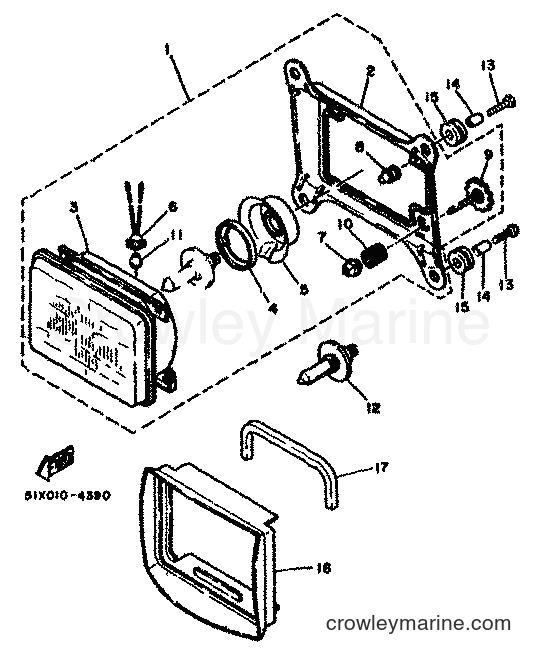

1985 Street Bike RD500LC - RD500LC (1GE) [999] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RD500LC (1GE) [999] - HEADLIGHT
Change View:
HEADLIGHT UNIT ASSY
1
Yamaha Motors
HEADLIGHT UNIT ASSY47X-84303-H0
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
. BODY, HEADLIGHT
2
Yamaha Motors
. BODY, HEADLIGHT47X-84311-00
Required: 1
. BODY, HEADLIGHT
Price unavailable
. LENS ASSY
3
Yamaha Motors
. LENS ASSY47X-84320-H0
Required: 1
. LENS ASSY
Price unavailable
-10%
BULB FITTING PLATE
4
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
. FITTING PLATE, BULB
Cross Ship
Leaves in 2-5 days
$14.99
$13.49
You save $1.50
More details
-10%
Socket Cover
5
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
. COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
. SOCKET, PILOT LIGHT
6
Yamaha Motors
. SOCKET, PILOT LIGHT457-84146-85
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
-10%
Adjusting Nut
7
Yamaha Motors
Adjusting Nut51L-84334-00-00
Required: 2
. NUT, ADJUSTING
Cross Ship
Leaves in 2-5 days
$9.99
$8.99
You save $1.00
More details
-10%
Neutral Lock Holder
8
Yamaha Motors
Neutral Lock Holder3AJ-8431U-00-00
Required: 1
. HOLDER
Supersedes: 51L-8431U-00-00
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
. BOLT, SPECIAL
9
Yamaha Motors
. BOLT, SPECIAL47X-84337-00
Required: 2
. BOLT, SPECIAL
Price unavailable
-10%
Screw Spring
10
Yamaha Motors
Screw Spring51L-84332-00-00
Required: 2
. SPRING, SCREW
Cross Ship
Leaves in 2-5 days
$4.80
$4.32
You save $0.48
More details
-10%
123-83516-21-XX
11
Yamaha Motors
123-83516-21-XX123-83516-21-00
Required: 1
. BULB
Cross Ship
Leaves in 2-5 days
$4.60
$4.14
You save $0.46
More details
CLUTCH TUNE-UP KIT
12
Yamaha Motors
CLUTCH TUNE-UP KIT*
Required: 1
CLUTCH TUNE-UP KIT
Price unavailable
-10%
COLLAR
14
Yamaha Motors
COLLAR90387-07391-00
Required: 4
COLLAR
Supersedes: 90387-067F1-00
Cross Ship
Backordered
$10.49
$9.44
You save $1.05
More details
-10%
GROMMET, WATER TUBE (UPPER)
15
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14229-00
Required: 4
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
COVER, SOCKET
16
Yamaha Motors
COVER, SOCKET51L-84196-01
Required: 1
COVER, SOCKET
Price unavailable
DAMPER, HEADLIGHT
17
Yamaha Motors
DAMPER, HEADLIGHT47X-84345-00
Required: 1
DAMPER, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
