1985 Street Bike RD500LC - RD500LC (1GE) [999] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

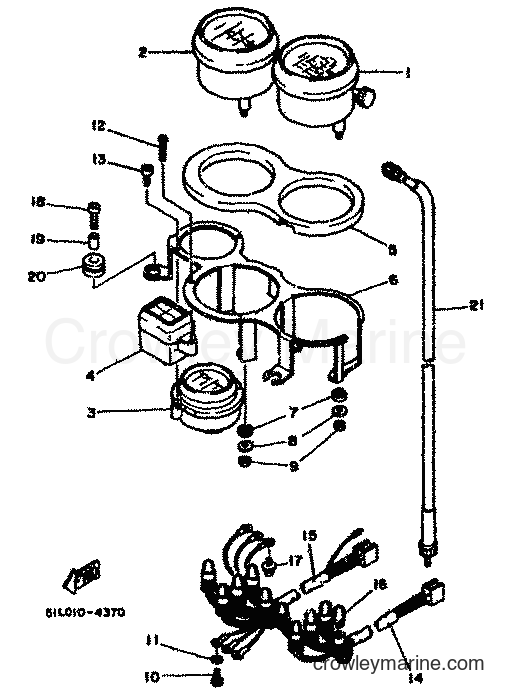

Yamaha Motors RD500LC (1GE) [999] - METER
Change View:
TACHOMETER ASSY
2
Yamaha Motors
TACHOMETER ASSY47X-83540-00
Required: 1
TACHOMETER ASSY
Price unavailable
WATER TEMPERATURE ASSY
3
Yamaha Motors
WATER TEMPERATURE ASSY47X-83590-00
Required: 1
WATER TEMPERATURE ASSY
Price unavailable
BRACKET, METER
6
Yamaha Motors
BRACKET, METER47X-83519-00
Required: 1
BRACKET, METER
Price unavailable
-10%
DAMPER 2
7
Yamaha Motors
DAMPER 2584-83523-00-00
Required: 4
DAMPER
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Plate Washer
8
Yamaha Motors
Plate Washer90201-05032-00
Required: 4
WASHER, SPECIAL
Supersedes: 4U5-83524-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Hexagon Nut
9
Yamaha Motors
Hexagon Nut95317-05600-00
Required: 4
NUT
Supersedes: 95306-05600-00
Cross Ship
Leaves in 2-5 days
$2.50
$2.25
You save $0.25
More details
-10%
PAN HEAD SCREW (3KS)
10
Yamaha Motors
PAN HEAD SCREW (3KS)98507-03012-00
Required: 3
SCREW, PAN HEAD
Supersedes: 98501-03012-00
Cross Ship
Leaves in 2-5 days
$0.55
$0.50
You save $0.05
More details
-10%
Tapping Screw
12
Yamaha Motors
Tapping Screw97706-30620-00
Required: 1
SCREW, TAPPING
Supersedes: 47X-83616-00-00
Cross Ship
Leaves in 2-5 days
$1.60
$1.44
You save $0.16
More details
SOCKET CORD ASSY
14
Yamaha Motors
SOCKET CORD ASSY47X-83509-00
Required: 1
SOCKET CORD ASSY
Price unavailable
SOCKET CORD ASSY
15
Yamaha Motors
SOCKET CORD ASSY47X-83520-00
Required: 1
SOCKET CORD ASSY
Price unavailable
-10%
4G1-84744-00-XX
16
Yamaha Motors
4G1-84744-00-XX4G1-84744-00-00
Required: 1
BULB (12V-5W)
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
-10%
Screw with Washer
17
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$2.07
You save $0.23
More details
-10%
HEXHEAD BOLT (59W)
18
Yamaha Motors
HEXHEAD BOLT (59W)90110-06087-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
COLLAR
19
Yamaha Motors
COLLAR90387-06026-00
Required: 3
COLLAR
Supersedes: 90387-065L7-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
GROMMET, WATER TUBE (UPPER)
20
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14229-00
Required: 3
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
SPEEDOMETER CABLE
21
Yamaha Motors
SPEEDOMETER CABLE3VP-83550-02-00
Required: 1
SPEEDOMETER CABLE ASSY
Supersedes: 51L-83550-00-00
Cross Ship
Leaves in 2-5 days
$48.99
$44.09
You save $4.90
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
