1985 Street Bike RD500LC - RD500LC (1GE) [999] SHIFT CAM & FORK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

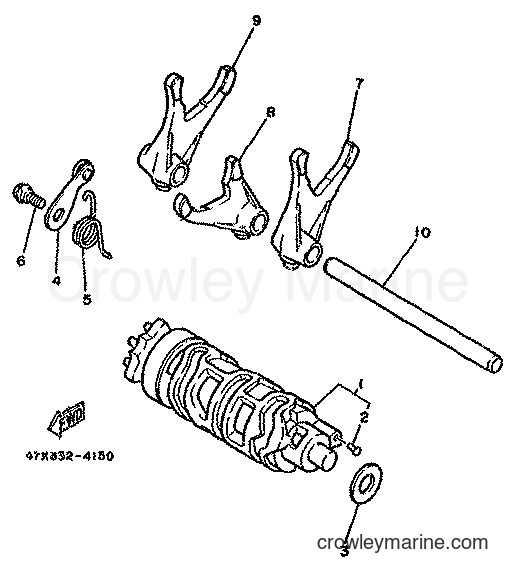

Yamaha Motors RD500LC (1GE) [999] - SHIFT CAM & FORK

Change View:

Yamaha Motors

SHIFT CAM ASSY47X-18540-00

Required: 1

SHIFT CAM ASSY

Price unavailable

-10%

Yamaha Motors

Neutral Point136-18542-00-00

Required: 1

. POINT, NEUTRAL

~~$7.49~~

$6.74

You save $0.75

More details

-10%

Yamaha Motors

Plate Washer90201-127E1-00

Required: 1

WASHER, PLATE

~~$4.65~~

$4.19

You save $0.46

More details

-10%

Yamaha Motors

STOPPER LEVER ASSEMBLY3R4-18140-00-00

Required: 1

STOPPER LEVER ASSY

No longer availableSearch Nationwide Inventory

~~$27.99~~

$25.19

You save $2.80

More details

Yamaha Motors

SPRING, TORSION90508-26674

Required: 1

SPRING, TORSION

Price unavailable

-10%

Yamaha Motors

BOLT90109-06190-00

Required: 1

BOLT, STOPPER

Supersedes: 1W1-18177-00-00

~~$5.99~~

$5.39

You save $0.60

More details

Yamaha Motors

FORK, SHIFT 147X-18511-00

Required: 1

FORK, SHIFT 1

Price unavailable

Yamaha Motors

FORK, SHIFT 247X-18512-00

Required: 1

FORK, SHIFT 2

Price unavailable

Yamaha Motors

FORK, SHIFT 347X-18513-00

Required: 1

FORK, SHIFT 3

Price unavailable

Yamaha Motors

BAR, SHIFT FORK GUIDE 147X-18531-00

Required: 1

BAR, SHIFT FORK GUIDE 1

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
