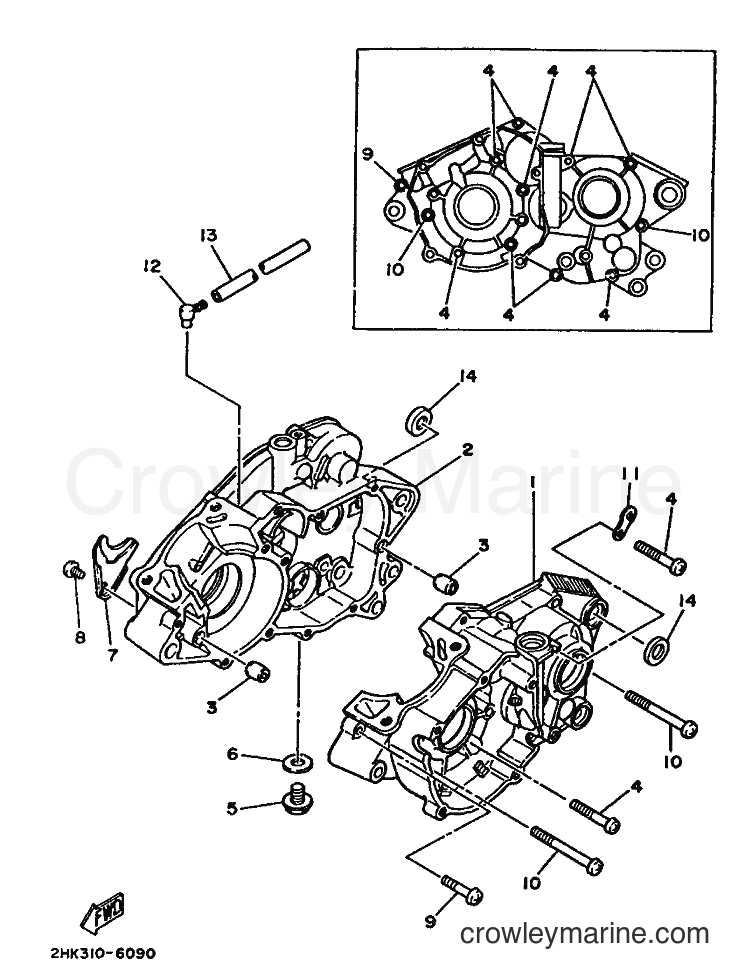

1986 Street Bike RD125LC - RD125LC (1GL) [999] CRANKCASE diagram
![Yamaha Motors RD125LC (1GL) [999] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/RoxcDhFz.png)
1
Yamaha Motors
CRANKCASE 110V-15111-01
Required: 1
CRANKCASE 1
Price unavailable
2
Yamaha Motors
CRANKCASE 210V-15121-02
Required: 1
CRANKCASE 2
Price unavailable
-50%
In stock
Only 2 remaining
$2.45
You save $2.45
-10%
4
Yamaha Motors
Pan Head Screw98580-06545-00
Required: 9
SCREW, PAN HEAD
Supersedes: 92503-06045-00
$5.84
You save $0.65
-50%
5
Yamaha Motors
Straight Screw Plug90340-12006-00
Required: 1
PLUG, STRAIGHT SCREW
Supersedes: 90340-12059-00
In stock
Only 2 remaining
$2.27
You save $2.27
-50%
6
Yamaha Motors
Tank Cap Gasket90430-12207-00
Required: 1
GASKET
Supersedes: 90430-12038-00
In stock
Only 5 remaining
$4.25
You save $4.25
7
Yamaha Motors
HOLDER10V-15128-00
Required: 1
HOLDER
Price unavailable
-10%
8
Yamaha Motors
PAN SCREW98507-08010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-08010-00
$8.54
You save $0.95
-10%
9
Yamaha Motors
98580-06030-0098501-06030-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92501-06030-00
No longer availableSearch Nationwide Inventory
$4.55
You save $0.50
-10%
10
Yamaha Motors
Pan Head Screw98580-06575-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06075-00
$12.14
You save $1.35
11
Yamaha Motors
CLAMP90462-12105
Required: 1
CLAMP
Price unavailable
-10%
12
Yamaha Motors
SUCTION PIPE CONNECTER353-13115-01-00
Required: 1
CONNECTOR, SUCTION PIPE
$6.74
You save $0.75
-15%
13
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09085-00
In stock
Only 2 remaining
$10.62
You save $1.87
-10%
14
Yamaha Motors
Plain Washer90201-12043-00
Required: 2
WASHER, PLATE
Supersedes: 90201-122F8-00
$3.92
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
