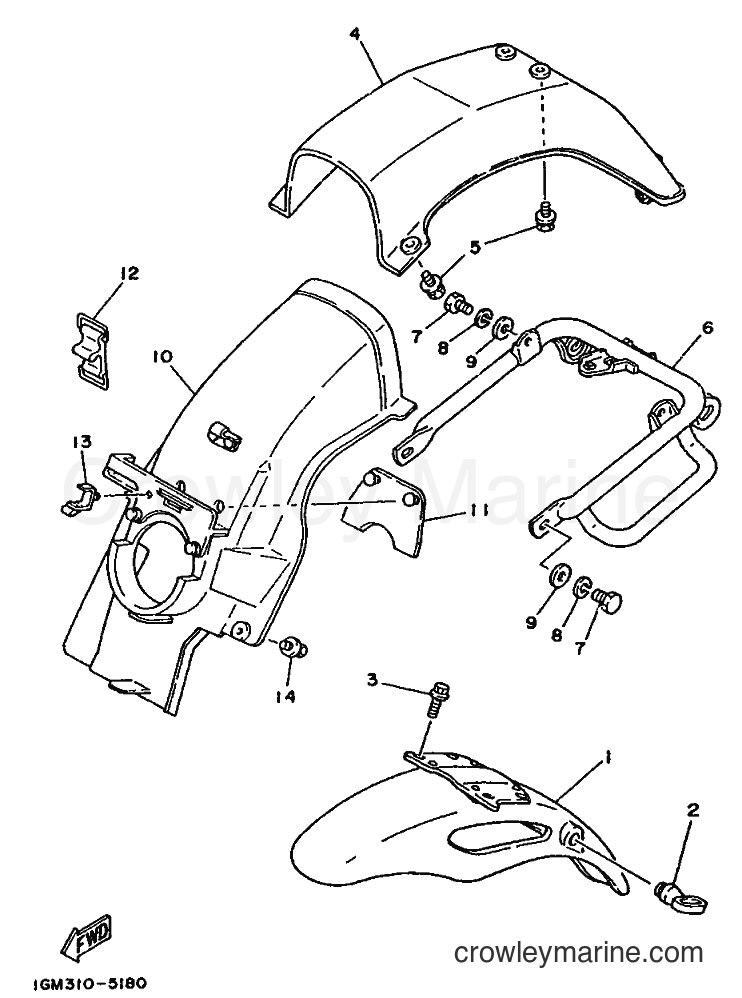

1986 Street Bike RD125LC - RD125LC (1GL) [999] FENDER diagram
![Yamaha Motors RD125LC (1GL) [999] - FENDER](https://cdn.crowleymarine.com/yamaha/e722Mfux.png)
1
Yamaha Motors
FRONT FENDER COMP.1GU-21510-00-E1
Required: 1
FRONT FENDER COMP.
Price unavailable
-10%
2
Yamaha Motors
Cable Holder1A8-21518-00-00
Required: 1
HOLDER, CABLE
$7.64
You save $0.85
-10%
3
Yamaha Motors
Flange Bolt95024-06012-00
Required: 4
BOLT
Supersedes: 95023-06012-00
$4.28
You save $0.47
4
Yamaha Motors
REAR FENDER COMP.10W-21610-00
Required: 1
REAR FENDER COMP.
Price unavailable
-10%
5
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06056-00
$3.19
You save $0.35
6
Yamaha Motors
STAY, REAR1GU-21645-00
Required: 1
STAY, REAR
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
-10%
8
Yamaha Motors
Spring Washer92907-08100-00
Required: 4
WASHER, SPRING
Supersedes: 92906-08100-00
$8.54
You save $0.95
-10%
9
Yamaha Motors
WASHER92907-08600-00
Required: 4
WASHER, PLATE
Supersedes: 92906-08600-00
$2.93
You save $0.32
10
Yamaha Motors
MUD GUARD COMP.10W-21620-00
Required: 1
MUD GUARD COMP.
Price unavailable
11
Yamaha Motors
FLAP3M7-21621-00
Required: 1
FLAP
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
$12.14
You save $1.35
-10%
14
Yamaha Motors
Bolt with Washer90119-06152-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06056-00
$3.19
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
