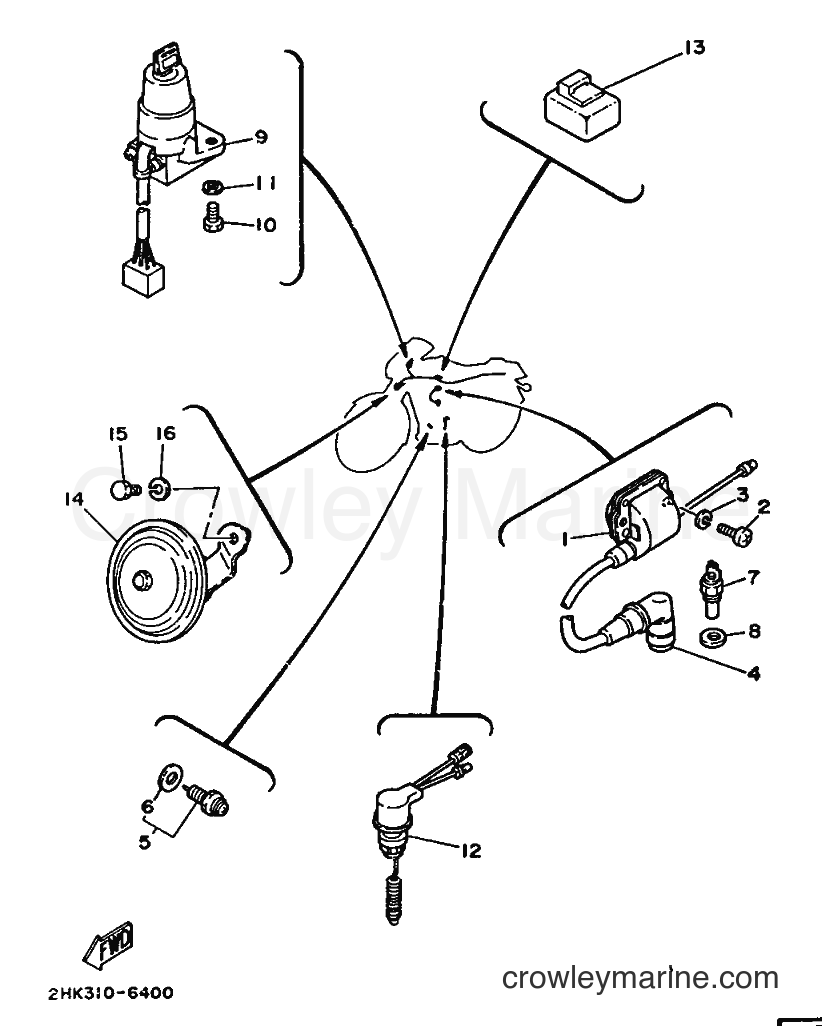

1986 Street Bike RD125LC - RD125LC (2HK) [999] ELECTRICAL 2 diagram
![Yamaha Motors RD125LC (2HK) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/ltugnV71.png)
1
Yamaha Motors
IGNITION COIL ASSY34X-82310-M0
Required: 1
IGNITION COIL ASSY
Price unavailable
-10%
2
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06025-00
No longer availableSearch Nationwide Inventory
$1.94
You save $0.21
-15%
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
4
Yamaha Motors
4PE-82370-10-004PE-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 1M1-82370-21-00
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
5
Yamaha Motors
Neutral Switch Assembly4GY-82540-10-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 341-82540-01-00
$37.79
You save $4.20
-10%
6
Yamaha Motors
Tank Cap Gasket296-82543-00-00
Required: 1
. GASKET
Supersedes: 341-82543-00-00
$5.39
You save $0.60
7
Yamaha Motors
THERMO UNIT10V-83591-00
Required: 1
THERMO UNIT
Price unavailable
-10%
8
Yamaha Motors
Tank Cap Gasket90430-10005-00
Required: 1
GASKET
Supersedes: 90430-10164-00
$8.54
You save $0.95
9
Yamaha Motors
MAIN SWITCH STEERING LOCK31K-82501-45
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-15%
In stock
Only 3 remaining
$2.35
You save $0.41
-15%
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-10%
12
Yamaha Motors
5R2-82530-02-005R2-82530-01-00
Required: 1
STOP SWITCH ASSY
Supersedes: 5R2-82530-00-00
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
13
Yamaha Motors
FLASHER RELAY ASSY5Y3-83350-20
Required: 1
FLASHER RELAY ASSY
Price unavailable
-10%
$89.09
You save $9.90
-10%
No longer availableSearch Nationwide Inventory
$2.39
You save $0.27
-15%
16
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$4.76
You save $0.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
