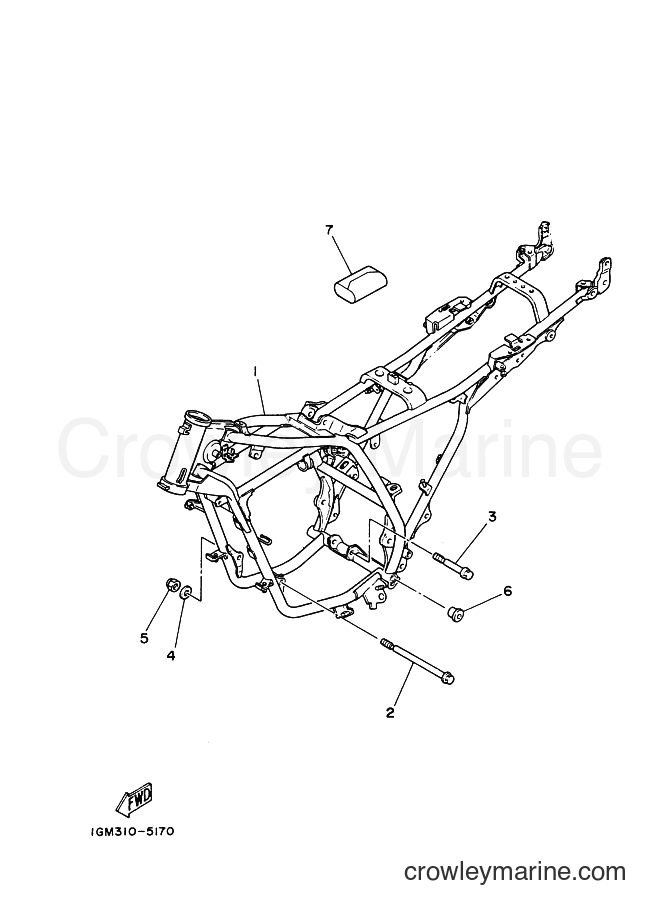

1986 Street Bike RD125LC - RD125LC (2HK) [999] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RD125LC (2HK) [999] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1GM-21110-00-33
Required: 1
FRAME COMP.
Price unavailable
FRAME COMP.
1
Yamaha Motors
FRAME COMP.1GM-21110-00-98
Required: 1
FRAME COMP.
Price unavailable
-10%
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-08364-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$11.99
$10.79
You save $1.20
More details
-10%
Washer Based Bolt
3
Yamaha Motors
Washer Based Bolt90105-08721-00
Required: 1
BOLT, WASHER BASED
Supersedes: 90105-08221-00
Cross Ship
Leaves in 2-5 days
$4.80
$4.32
You save $0.48
More details
-10%
Self-Locking Nut
5
Yamaha Motors
Self-Locking Nut90185-08089-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-08054-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Plug
6
Yamaha Motors
Plug90338-18122-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
TOOL KIT
7
Yamaha Motors
TOOL KIT10W-28100-00
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
