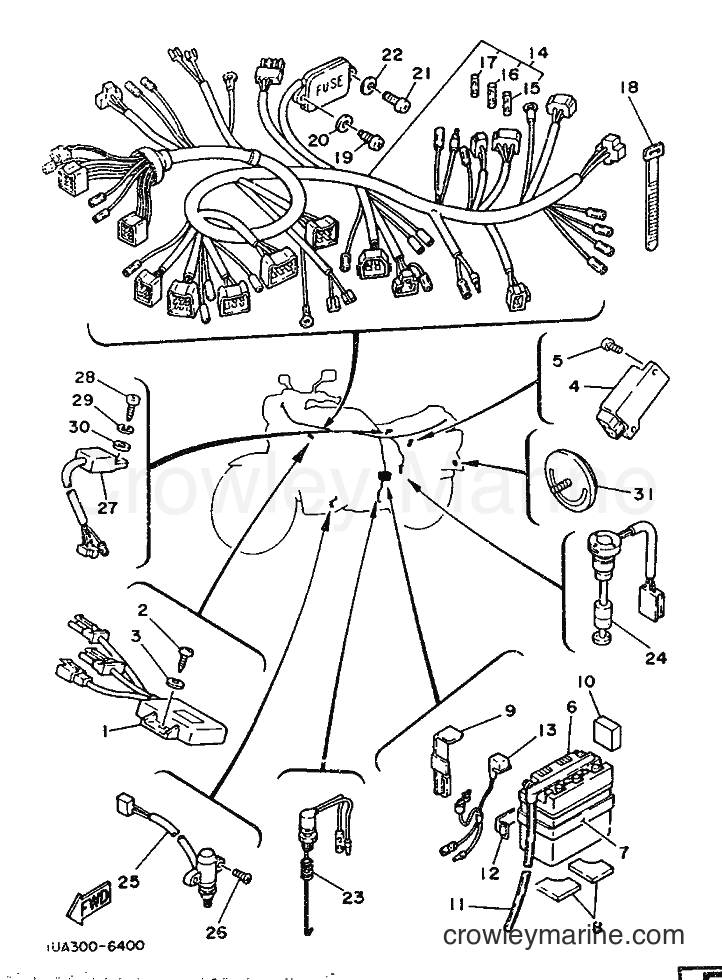

1986 Street Bike RD350LC - RD350LC (1UA) [99A] ELECTRICAL 1 diagram
![Yamaha Motors RD350LC (1UA) [99A] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/Hh521uKa.png)
1
Yamaha Motors
C.D.I. UNIT ASSY1UA-85540-50
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Yamaha Motors
Tapping Screw97702-60520-00
Required: 2
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.42
-15%
3
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER, PLAIN
In stock
5+ in stock
$0.85
You save $0.15
4
Yamaha Motors
RECTIFIER & REGULATOR ASSY47X-81960-AO
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
-10%
5
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06012-00
$3.69
You save $0.41
-10%
6
Yamaha Motors
YB5LB YUASA BATTERYYB5-LB000-00-00
Required: 1
BATTERY ASSY
Supersedes: 43F-82110-60-00
No longer availableSearch Nationwide Inventory
$31.45
You save $3.49
-10%
7
Yamaha Motors
Battery Band1UA-82124-00-00
Required: 1
BAND, BATTERY
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
8
Yamaha Motors
SEAT, BATTERY1UA-82122-00
Required: 2
SEAT, BATTERY
Price unavailable
-10%
9
Yamaha Motors
Battery Cover29L-82129-00-00
Required: 1
COVER, BATTERY
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
-10%
10
Yamaha Motors
Damper1YW-21638-00-00
Required: 1
SEAT, BATTERY
Supersedes: 1UA-82123-00-00
No longer availableSearch Nationwide Inventory
$4.14
You save $0.46
-10%
11
Yamaha Motors
Hose (3GG)90445-084J0-00
Required: 1
HOSE
Supersedes: 90445-08336-00
$18.89
You save $2.10
-10%
12
Yamaha Motors
Battery Band26H-82131-00-00
Required: 1
BAND, BATTERY
Supersedes: 29L-82131-00-00
$23.39
You save $2.60
13
Yamaha Motors
WIRE, LEAD4LO-82117-00
Required: 1
WIRE, LEAD
Price unavailable
14
Yamaha Motors
WIRE HARNESS ASSY1UA-82590-10
Required: 1
WIRE HARNESS ASSY
Price unavailable
15
Yamaha Motors
. FUSE1AO-82161-00
Required: 1
. FUSE
Price unavailable
-10%
$3.87
You save $0.43
-10%
$3.19
You save $0.35
-10%
18
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 1
BAND, SWITCH CORD
Supersedes: 437-83936-10-00
No longer availableSearch Nationwide Inventory
$4.50
You save $0.50
-10%
19
Yamaha Motors
Tapping Screw97780-60116-00
Required: 1
SCREW, TAPPING
$2.43
You save $0.27
-15%
20
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
WASHER, PLAIN
Supersedes: 92901-06200-00
In stock
5+ in stock
$0.85
You save $0.15
-10%
21
Yamaha Motors
98501-06014-0092501-06014-00
Required: 1
SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
-15%
22
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-06600-00
In stock
5+ in stock
$2.51
You save $0.44
-10%
23
Yamaha Motors
1T2-82530-02-001T2-82530-01-00
Required: 1
STOP SWITCH ASSY
Supersedes: 1T2-82530-00-00
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
24
Yamaha Motors
Oil Level Gauge Assembly34X-85720-02-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 34X-85720-00-00
No longer availableSearch Nationwide Inventory
$73.79
You save $8.20
-10%
25
Yamaha Motors
SIDE STAND SWITCH33E-82566-00-00
Required: 1
SWITCH, SIDE STAND
$135.89
You save $15.10
-10%
26
Yamaha Motors
Flat Screw98707-05016-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 98706-05016-00
$7.19
You save $0.80
27
Yamaha Motors
CONTROL UNIT ASSY4Y3-85590-MO
Required: 1
CONTROL UNIT ASSY
Price unavailable
28
Yamaha Motors
Tapping Screw97702-60520-00
Required: 1
SCREW, TAPPING
No longer availableSearch Nationwide Inventory
$1.42
-15%
29
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
30
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.51
You save $0.44
-10%
31
Yamaha Motors
Rear Reflector449-85131-02-00
Required: 1
REFLECTOR, REAR 1
$30.59
You save $3.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
