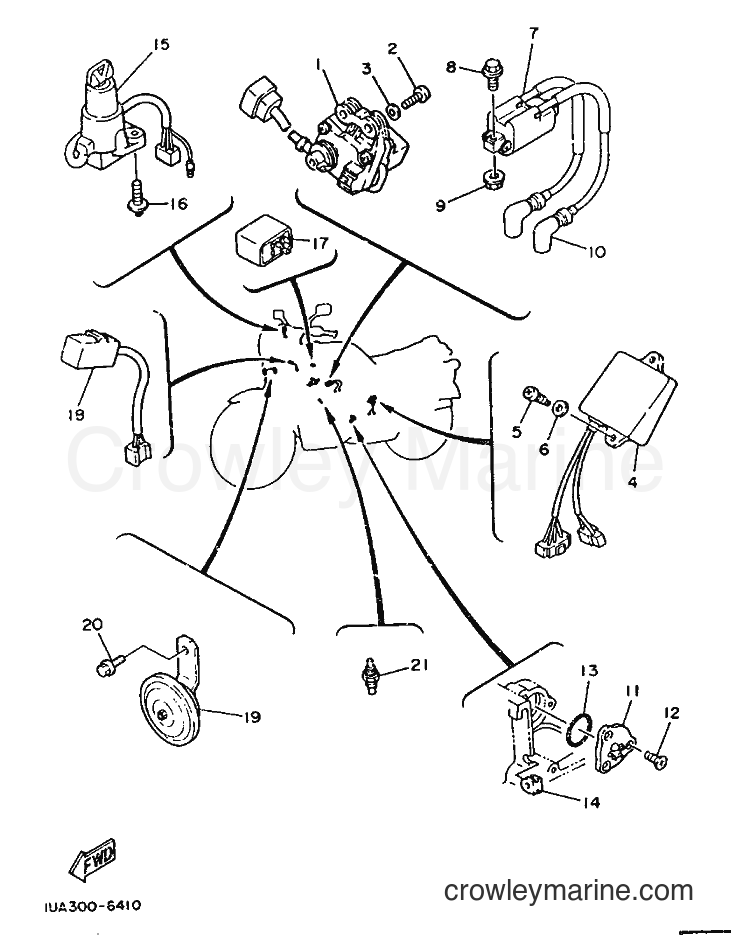

1986 Street Bike RD350LC - RD350LC (1UA) [99A] ELECTRICAL 2 diagram
![Yamaha Motors RD350LC (1UA) [99A] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/RNLY7BiY.png)
1
Yamaha Motors
SERVO MOTOR ASSY1UA-85820-00
Required: 1
SERVO MOTOR ASSY
Price unavailable
-10%
2
Yamaha Motors
Pan Head Screw98511-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92501-06025-00
No longer availableSearch Nationwide Inventory
$1.94
You save $0.21
-10%
3
Yamaha Motors
Plate Washer90201-06380-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06067-00
$0.59
You save $0.06
4
Yamaha Motors
CONTROL UNIT ASSY1UA-85830-00
Required: 1
CONTROL UNIT ASSY
Price unavailable
-10%
5
Yamaha Motors
Tapping Screw97780-60116-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-60116-00
$2.43
You save $0.27
-15%
6
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
WASHER, PLAIN
In stock
5+ in stock
$0.85
You save $0.15
7
Yamaha Motors
IGNITION COIL ASSY1UA-82310-50
Required: 1
IGNITION COIL ASSY
Price unavailable
8
Yamaha Motors
BOLT98002-06018
Required: 2
BOLT
Price unavailable
-10%
9
Yamaha Motors
95701-06500-0095701-06100-00
Required: 1
NUT, FLANGE
Supersedes: 95702-06100-00
No longer availableSearch Nationwide Inventory
$2.02
You save $0.23
-10%
10
Yamaha Motors
4PE-82370-10-004PE-82370-00-00
Required: 2
PLUG CAP ASSY
Supersedes: 1M1-82370-21-00
No longer availableSearch Nationwide Inventory
$29.69
You save $3.30
-10%
11
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1L9-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$46.79
You save $5.20
-10%
12
Yamaha Motors
Flat Screw98707-05012-00
Required: 3
SCREW, FLAT HEAD
Supersedes: 98702-05012-00
$1.67
You save $0.19
-10%
13
Yamaha Motors
O-Ring93210-29196-00
Required: 1
O-RING
Supersedes: 93210-29147-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$4.14
You save $0.46
15
Yamaha Motors
MAIN SWITCH STEERING LOCK1UA-82501-00
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
16
Yamaha Motors
Bolt (4FM)90109-06282-00
Required: 2
BOLT
Supersedes: 90109-06614-00
$4.94
You save $0.55
17
Yamaha Motors
FLASHER RELAY ASSY4KO-83350-20
Required: 1
FLASHER RELAY ASSY
Price unavailable
18
Yamaha Motors
FLASHER CANCELLING UNIT1AO-83395-03
Required: 1
FLASHER CANCELLING UNIT
Price unavailable
19
Yamaha Motors
HORN1UA-83371-00
Required: 1
HORN
Price unavailable
20
Yamaha Motors
BOLT98006-08012
Required: 1
BOLT
Price unavailable
-10%
$103.49
You save $11.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
