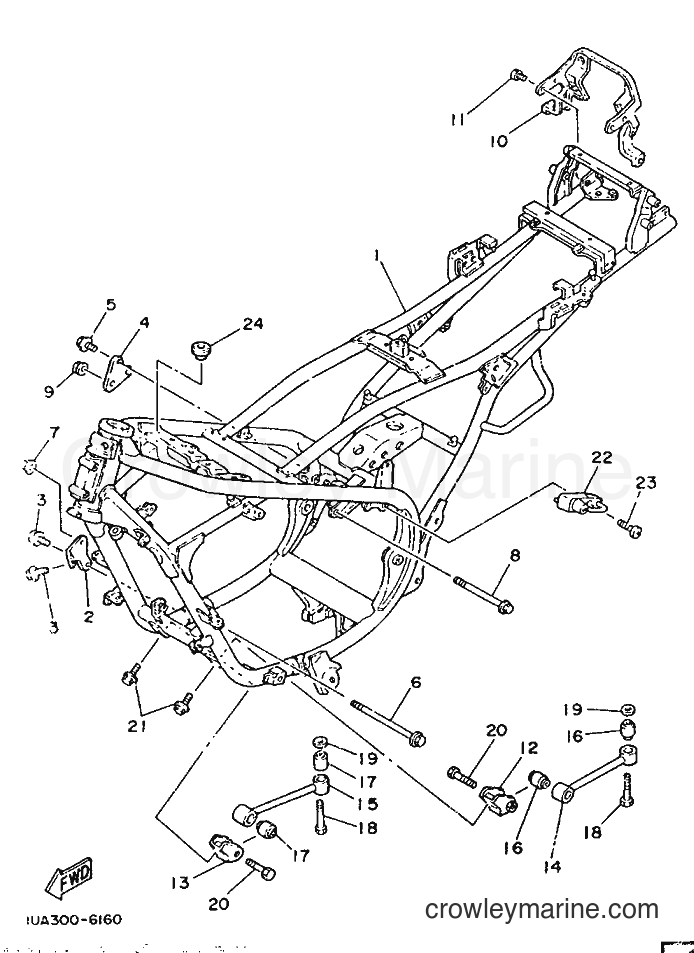

1986 Street Bike RD350LC - RD350LC (1UA) [99A] FRAME diagram
![Yamaha Motors RD350LC (1UA) [99A] - FRAME](https://cdn.crowleymarine.com/yamaha/d6LMKK1b.png)
1
Yamaha Motors
FRAME COMP.1WT-21110-00-33
Required: 1
FRAME COMP.
Price unavailable
-10%
2
Yamaha Motors
ENGINE STAY 229L-21315-01-00
Required: 1
STAY, ENGINE 2
No longer availableSearch Nationwide Inventory
$16.64
You save $1.85
-10%
3
Yamaha Motors
Flange Bolt (3JPE)95024-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95021-08016-00
$9.44
You save $1.05
-10%
4
Yamaha Motors
Engine Stay29L-21316-00-00
Required: 1
STAY, ENGINE 3
No longer availableSearch Nationwide Inventory
$6.39
You save $0.71
-10%
5
Yamaha Motors
Flange Bolt (3JPE)95024-08016-00
Required: 2
BOLT, FLANGE
Supersedes: 95021-08016-00
$9.44
You save $1.05
6
Yamaha Motors
BOLT, FLANGE95021-10150
Required: 1
BOLT, FLANGE
Price unavailable
7
Yamaha Motors
Flange Bolt95704-10500-00
Required: 1
NUT, FLANGE
Supersedes: 95701-10500-00
$2.28
8
Yamaha Motors
BOLT, FLANGE95021-10115
Required: 1
BOLT, FLANGE
Price unavailable
9
Yamaha Motors
Flange Bolt95704-10500-00
Required: 1
NUT, FLANGE
Supersedes: 95701-10500-00
$2.28
10
Yamaha Motors
REAR FENDER BRACKET COMP.1UA-21260-00
Required: 1
REAR FENDER BRACKET COMP.
Price unavailable
11
Yamaha Motors
BOLT98002-06010
Required: 4
BOLT
Price unavailable
12
Yamaha Motors
STAY, ENGINE 34LO-21317-00
Required: 1
STAY, ENGINE 3
Price unavailable
13
Yamaha Motors
STAY, ENGINE 54LO-21318-00
Required: 1
STAY, ENGINE 5
Price unavailable
-10%
14
Yamaha Motors
ENGINE STAY 11UA-21314-00-00
Required: 1
STAY, ENGINE 5
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
15
Yamaha Motors
Engine Stay1UA-21319-00-00
Required: 1
STAY, ENGINE 6
No longer availableSearch Nationwide Inventory
$44.09
You save $4.90
16
Yamaha Motors
DAMPER, RUBBER 14LO-21485-00
Required: 2
DAMPER, RUBBER 1
Price unavailable
17
Yamaha Motors
DAMPER, RUBBER 14LO-21485-00
Required: 2
DAMPER, RUBBER 1
Price unavailable
18
Yamaha Motors
BOLT98001-10040
Required: 2
BOLT
Price unavailable
-15%
19
Yamaha Motors
Plate Washer92990-10600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.64
You save $0.46
20
Yamaha Motors
BOLT98001-10040
Required: 2
BOLT
Price unavailable
-50%
21
Yamaha Motors
Flange Bolt95817-08012-00
Required: 2
BOLT, FLANGE
Supersedes: 95806-08012-00
In stock
Only 1 remaining
$2.75
You save $2.75
22
Yamaha Motors
HELMET HANGER ASSY47X-21308-00
Required: 1
HELMET HANGER ASSY
Price unavailable
-10%
$9.44
You save $1.05
-10%
24
Yamaha Motors
Locating Damper137-24181-00-00
Required: 1
DAMPER, LOCATING 1
No longer availableSearch Nationwide Inventory
$3.56
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
