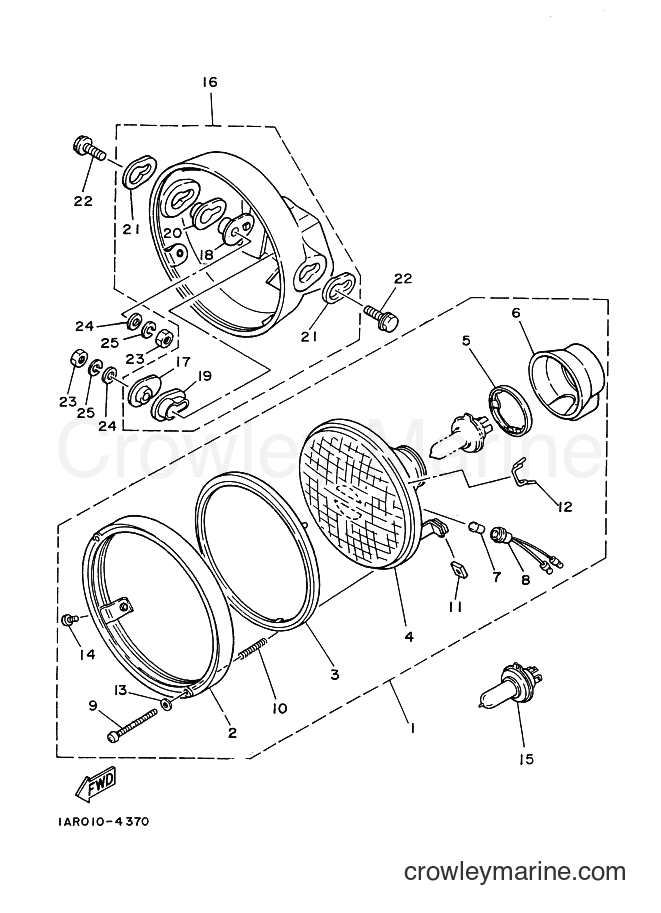

1986 Street Bike RD350LC - RD350LC (1UA) [99A] HEADLIGHT diagram
![Yamaha Motors RD350LC (1UA) [99A] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/cTsUV83g.png)
1
Yamaha Motors
HEADLIGHT UNIT ASSY1AR-84303-HO
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
-10%
2
Yamaha Motors
Headlight Rim1AR-84315-00-00
Required: 1
. RIM, HEADLIGHT
No longer availableSearch Nationwide Inventory
$106.19
You save $11.80
-10%
3
Yamaha Motors
Retaining Ring29L-84395-00-00
Required: 1
. RING, RETAINING
$31.49
You save $3.50
4
Yamaha Motors
. LENS ASSY29L-84320-HO
Required: 1
. LENS ASSY
Price unavailable
-10%
5
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
. FITTING PLATE, BULB
$13.49
You save $1.50
-10%
6
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
. COVER, SOCKET
$30.59
You save $3.40
-10%
$4.14
You save $0.46
8
Yamaha Motors
. SOCKET, PILOT LIGHT457-84146-85
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
-10%
9
Yamaha Motors
43F-84131-00-0010X-84131-00-00
Required: 2
. SCREW, RIM ADJUSTER
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
10
Yamaha Motors
Screw Spring341-84332-60-00
Required: 2
. SPRING, SCREW
$9.89
You save $1.10
-10%
11
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 2
. NUT, ADJUSTING
$7.64
You save $0.85
-10%
12
Yamaha Motors
SPRING SET14T-84124-00-00
Required: 1
. SPRING, SET
$4.94
You save $0.55
13
Yamaha Motors
. WASHER, SPECIAL1AR-84327-00
Required: 2
. WASHER, SPECIAL
Price unavailable
-10%
14
Yamaha Motors
98516-05012-0098506-05012-00
Required: 2
. SCREW, PAN HEAD
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-10%
16
Yamaha Motors
Body Assembly29L-84330-01-00
Required: 1
BODY ASSY
Supersedes: 29L-84330-00-00
$46.79
You save $5.20
-10%
$13.94
You save $1.55
-10%
18
Yamaha Motors
MOUNTING RING SCREW5G2-84398-00-00
Required: 1
. SCREW, MOUNTING RING
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
19
Yamaha Motors
Headlight Damper5G2-84366-00-00
Required: 1
. DAMPER, HEADLIGHT 1
$13.94
You save $1.55
-10%
20
Yamaha Motors
HEADLIGHT DAMPER5G2-84367-00-00
Required: 1
. DAMPER, HEADLIGHT 2
No longer availableSearch Nationwide Inventory
$18.89
You save $2.10
-10%
$8.54
You save $0.95
-10%
22
Yamaha Motors
95817-08030-0095816-08030-00
Required: 2
BOLT, FLANGE
Supersedes: 95806-08030-00
No longer availableSearch Nationwide Inventory
$1.44
You save $0.16
-10%
23
Yamaha Motors
Nut95303-08600-00
Required: 2
NUT
Supersedes: 95301-08600-00
No longer availableSearch Nationwide Inventory
$1.81
You save $0.20
-15%
24
Yamaha Motors
Plain Washer92990-08200-00
Required: 2
WASHER, PLAIN
Supersedes: 92901-08200-00
In stock
Only 1 remaining
$2.59
You save $0.46
-15%
25
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$4.76
You save $0.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
