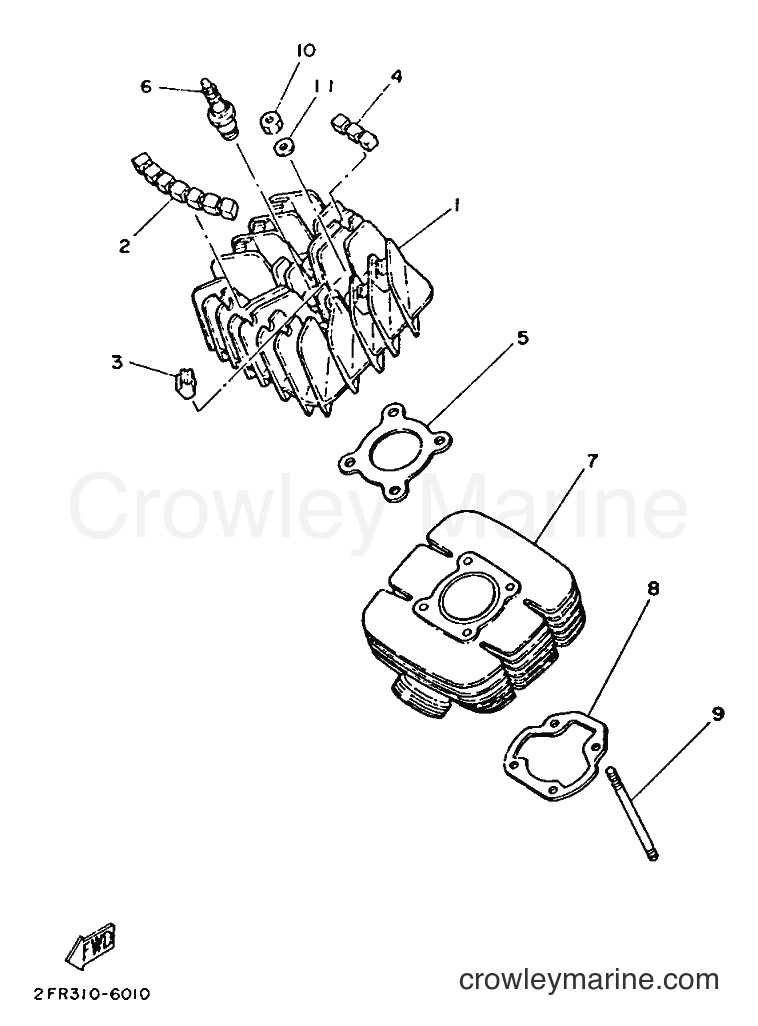

1986 Street Bike RD50M - RD50M (2FR) [999] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors RD50M (2FR) [999] - CYLINDER
Change View:
HEAD, CYLINDER 1
1
Yamaha Motors
HEAD, CYLINDER 15L3-11111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
ABSORBER 1
2
Yamaha Motors
ABSORBER 15G1-11161-00
Required: 1
ABSORBER 1
Price unavailable
ABSORBER 4
4
Yamaha Motors
ABSORBER 41V1-11128-00
Required: 1
ABSORBER 4
Price unavailable
GASKET, CYLINDER HEAD 1
5
Yamaha Motors
GASKET, CYLINDER HEAD 1378-11181-60
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
CYLINDER 1
7
Yamaha Motors
CYLINDER 12L7-11311-00
Required: 1
CYLINDER 1
Price unavailable
-10%
Cylinder Gasket
8
Yamaha Motors
Cylinder Gasket4AD-11351-00-00
Required: 1
GASKET, CYLINDER
Supersedes: 353-11351-00-00
Cross Ship
Leaves in 2-5 days
$4.25
$3.83
You save $0.42
More details
-10%
Stud Bolt
9
Yamaha Motors
Stud Bolt90116-06026-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$4.60
$4.14
You save $0.46
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
