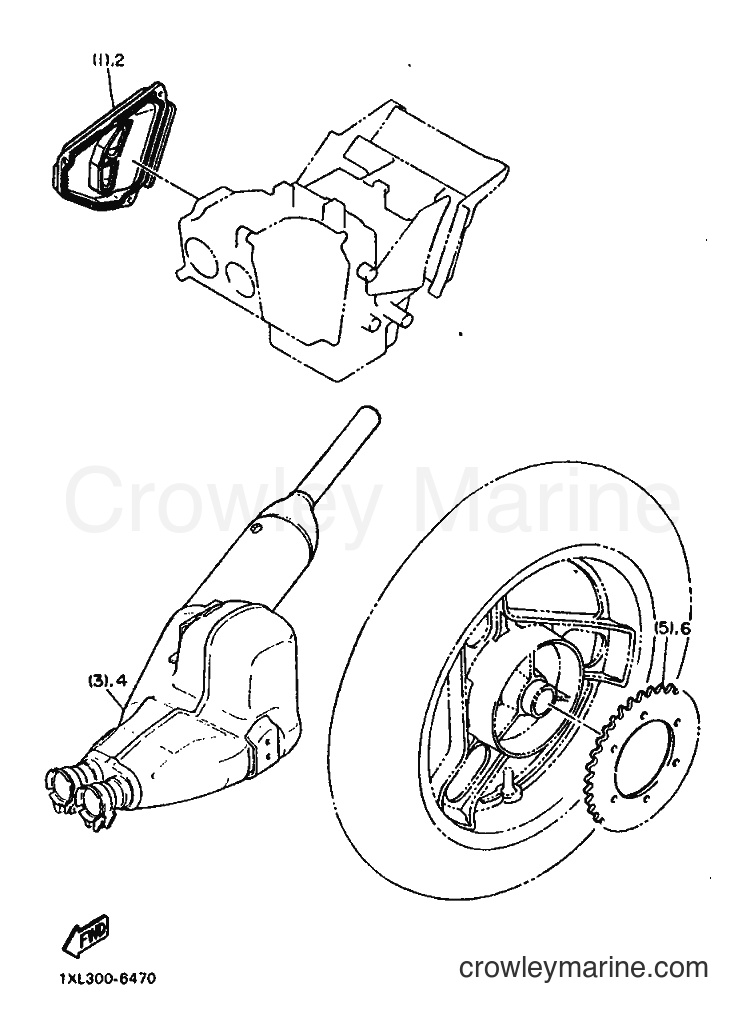

1986 Street Bike SRX600 - SRX600 (1XL) [999] ENGINE 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SRX600 (1XL) [999] - ENGINE 2
Change View:
CAP, CLEANER CASE 2
2
Yamaha Motors
CAP, CLEANER CASE 21XN-14422-00
Required: 1
CAP, CLEANER CASE 2
Price unavailable
MUFFLER 1
3
Yamaha Motors
MUFFLER 11JK-14711-01
Required: 1
MUFFLER 1
Price unavailable
MUFFLER 1
4
Yamaha Motors
MUFFLER 11XN-14711-00
Required: 1
MUFFLER 1
Price unavailable
SPROCKET, DRIVEN
6
Yamaha Motors
SPROCKET, DRIVEN1XN-25436-20-33
Required: 1
SPROCKET, DRIVEN
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
