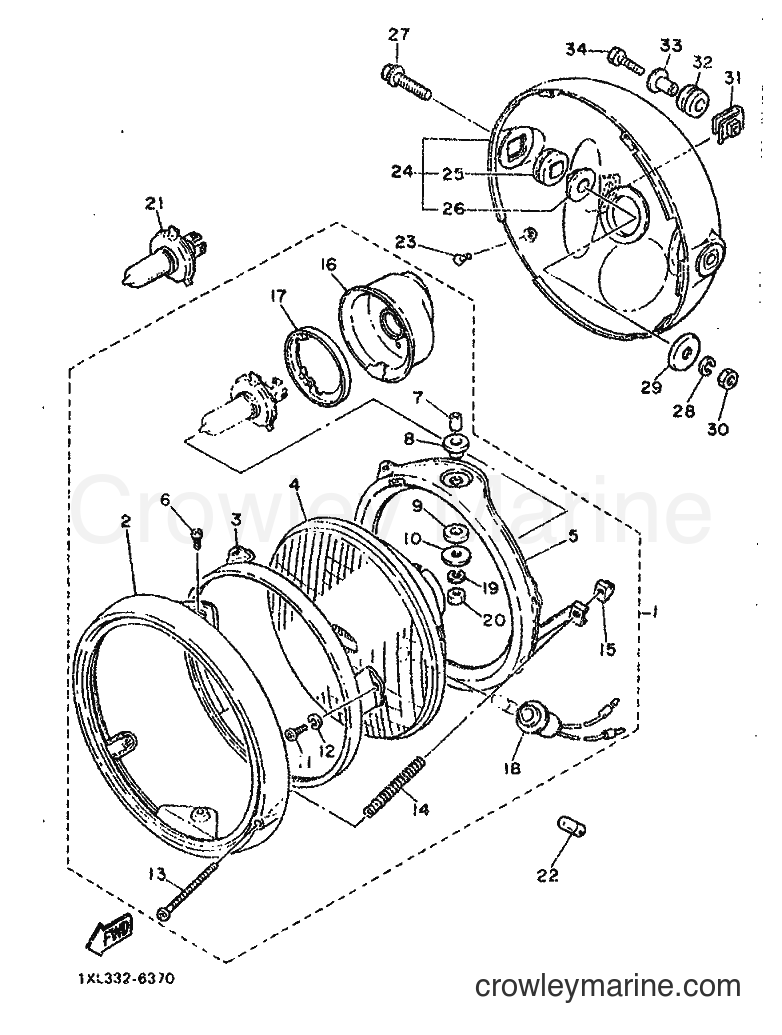

1986 Street Bike SRX600 - SRX600 (1XM) [999] SCHEINWERFER diagram
![Yamaha Motors SRX600 (1XM) [999] - SCHEINWERFER](https://cdn.crowleymarine.com/yamaha/oOg7eDH0.png)
1
Yamaha Motors
HEADLIGHT UNIT ASSY2K3-84303-40
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Yamaha Motors
. RIM, HEADLIGHT447-84315-40
Required: 1
. RIM, HEADLIGHT
Price unavailable
-10%
3
Yamaha Motors
Retaining Ring447-84395-60-00
Required: 1
. RING, RETAINING
No longer availableSearch Nationwide Inventory
$70.19
You save $7.80
4
Yamaha Motors
. LENS ASSY2K3-84321-40
Required: 1
. LENS ASSY
Price unavailable
5
Yamaha Motors
. RING, MOUNTING564-84394-61
Required: 1
. RING, MOUNTING
Price unavailable
6
Yamaha Motors
. SCREW, MOUNTING RING564-84398-60
Required: 2
. SCREW, MOUNTING RING
Price unavailable
7
Yamaha Motors
. COLLAR 1564-84392-60
Required: 2
. COLLAR 1
Price unavailable
-10%
8
Yamaha Motors
DAMPER 2584-84393-60-00
Required: 2
. DAMPER, MOUNTING RING
No longer availableSearch Nationwide Inventory
$8.54
You save $0.95
-10%
9
Yamaha Motors
DAMPER,MNTNG RNG 1584-84399-60-00
Required: 2
. DAMPER, MOUNTING RING 1
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
10
Yamaha Motors
Plate Washer90201-05032-00
Required: 2
. WASHER, PLAIN
Supersedes: 584-84344-60-00
$8.54
You save $0.95
-10%
11
Yamaha Motors
Screw98580-04008-00
Required: 3
. SCREW, PAN HEAD
Supersedes: 98501-04008-00
$5.84
You save $0.65
-15%
12
Yamaha Motors
Spring Washer92990-04100-00
Required: 3
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
-10%
13
Yamaha Motors
RIM ADJUSTMENT SCREW447-84331-61-00
Required: 1
. SCREW, RIM ADJUSTING
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
14
Yamaha Motors
Screw Spring447-84332-60-00
Required: 1
. SPRING, SCREW
$10.34
You save $1.15
-10%
15
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 1
. NUT, ADJUSTING
$7.64
You save $0.85
-10%
16
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
. COVER, SOCKET
$30.59
You save $3.40
-10%
17
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
. SETTING PLATE, BULB
$13.49
You save $1.50
18
Yamaha Motors
. SOCKET, PILOT LIGHT457-84146-85
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
-15%
19
Yamaha Motors
Spring Washer92990-05100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-05100-00
$0.30
You save $0.05
-10%
20
Yamaha Motors
Nut95303-05600-00
Required: 2
. NUT
Supersedes: 95301-05600-00
No longer availableSearch Nationwide Inventory
$1.76
You save $0.20
-10%
23
Yamaha Motors
Countersunk Screw90152-05005-00
Required: 2
SCREW, COUNTERSUNK
$4.19
You save $0.46
-10%
$244.79
You save $27.20
-10%
25
Yamaha Motors
Headlight Damper584-84345-60-00
Required: 2
. DAMPER, HEADLIGHT
$9.89
You save $1.10
-10%
26
Yamaha Motors
BODY FITTING COLLAR584-84338-60-00
Required: 2
. COLLAR, BODY FITTING
$21.59
You save $2.40
-10%
No longer availableSearch Nationwide Inventory
$2.43
You save $0.27
-10%
28
Yamaha Motors
Spring Washer92907-08100-00
Required: 2
WASHER, SPRING
Supersedes: 92902-08100-00
$8.54
You save $0.95
-10%
29
Yamaha Motors
WASHER90209-08008-00
Required: 2
WASHER
Supersedes: 90209-08098-00
$7.64
You save $0.85
-10%
30
Yamaha Motors
Nut95302-08600-00
Required: 2
NUT, HEXAGON
$9.44
You save $1.05
31
Yamaha Motors
NUT, SPRING90183-08023
Required: 1
NUT, SPRING
Price unavailable
-10%
$7.64
You save $0.85
33
Yamaha Motors
COLLAR90387-083E6
Required: 1
COLLAR
Price unavailable
-10%
34
Yamaha Motors
Hexagon Screw90153-06008-00
Required: 1
SCREW, HEXAGON
Supersedes: 90153-06052-00
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
