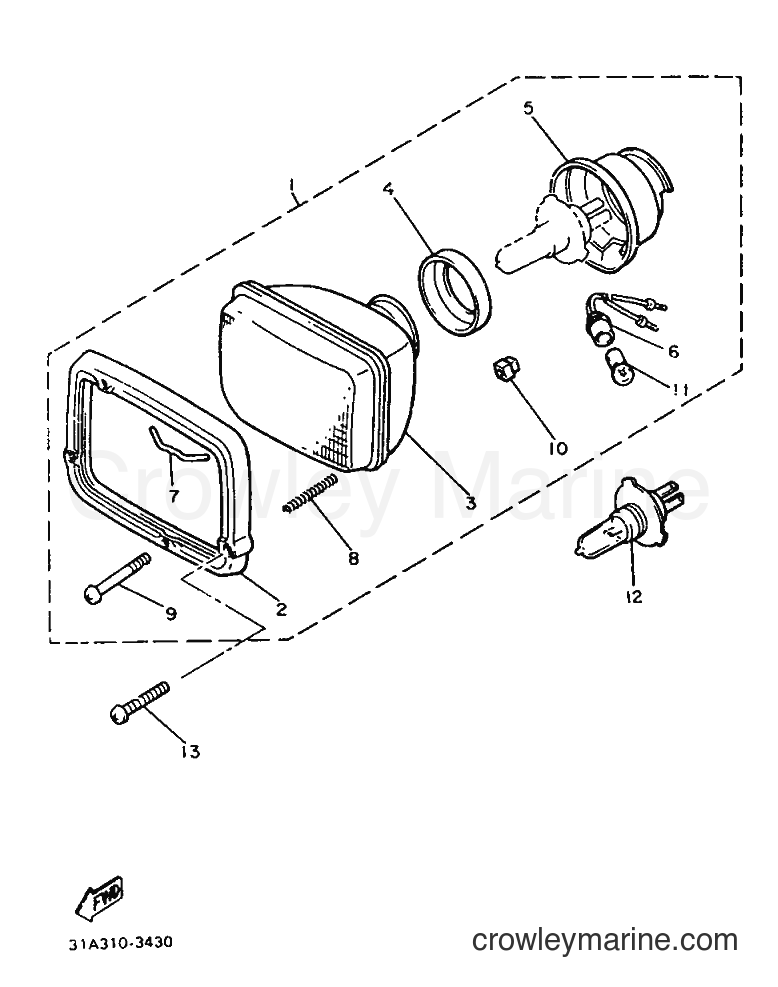

1986 Street Bike XJ600 - XJ600 (51J) [99A] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XJ600 (51J) [99A] - HEADLIGHT
Change View:
HEADLIGHT UNIT ASSY
1
Yamaha Motors
HEADLIGHT UNIT ASSY31A-84303-E0
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
. LENS ASSY
3
Yamaha Motors
. LENS ASSY11U-84321-E0
Required: 1
. LENS ASSY
Price unavailable
-10%
BULB FITTING PLATE
4
Yamaha Motors
BULB FITTING PLATE2F9-84375-00-00
Required: 1
. FITTING PLATE, BULB
Cross Ship
Leaves in 2-5 days
$14.99
$13.49
You save $1.50
More details
-10%
Socket Cover
5
Yamaha Motors
Socket Cover2F9-84397-01-00
Required: 1
. COVER, SOCKET
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
. SOCKET, PILOT LIGHT
6
Yamaha Motors
. SOCKET, PILOT LIGHT457-84146-85
Required: 1
. SOCKET, PILOT LIGHT
Price unavailable
-10%
Spring Set
7
Yamaha Motors
Spring Set55X-84124-00-00
Required: 1
. SPRING, REFLECTOR
Supersedes: 5G2-84324-A0-00
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
Screw Spring
8
Yamaha Motors
Screw Spring341-84332-60-00
Required: 2
. SPRING, SCREW
Supersedes: 5G2-84332-60-00
Cross Ship
Leaves in 2-5 days
$10.99
$9.89
You save $1.10
More details
-10%
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98507-04050-00
Required: 2
. SCREW, RIM ADJUSTING
Supersedes: 10W-84331-00-00
Cross Ship
Leaves in 2-5 days
$3.25
$2.93
You save $0.32
More details
-10%
Adjusting Nut
10
Yamaha Motors
Adjusting Nut198-84334-60-00
Required: 2
. NUT, ADJUSTING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
123-83516-21-XX
11
Yamaha Motors
123-83516-21-XX123-83516-21-00
Required: 1
. BULB
Cross Ship
Leaves in 2-5 days
$4.60
$4.14
You save $0.46
More details
-10%
Flat Head Screw
13
Yamaha Motors
Flat Head Screw98780-06025-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 92780-06025-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
