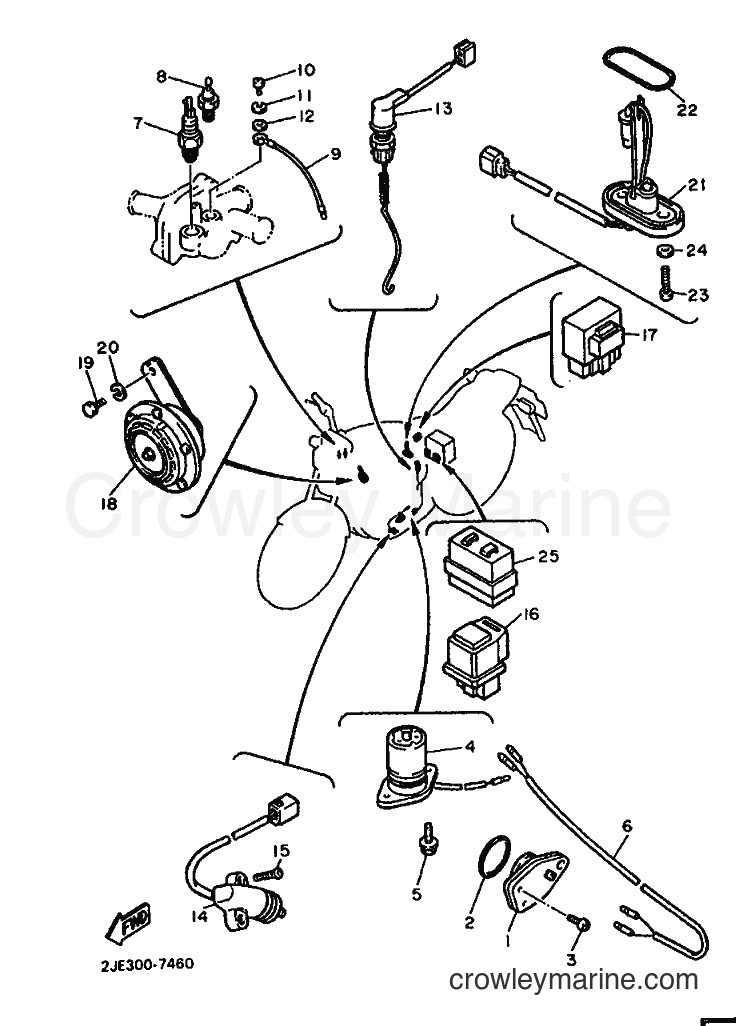

1987 Street Bike FZX750 - FZX750 (2JE) [999] ELECTRICAL 2 diagram
![Yamaha Motors FZX750 (2JE) [999] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/EXkcRSzl.png)
-10%
1
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1AE-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$30.59
You save $3.40
-10%
$8.54
You save $0.95
-15%
3
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
-10%
4
Yamaha Motors
OIL LEVEL GAUGE ASSY4H7-85720-02-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 4H7-85720-01-00
$161.09
You save $17.90
-10%
5
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95026-06016-00
$9.44
You save $1.05
-10%
6
Yamaha Motors
SUB LEAD WIRE1AE-82509-00-00
Required: 1
WIRE, SUB LEAD
No longer availableSearch Nationwide Inventory
$34.19
You save $3.80
-10%
7
Yamaha Motors
Thermo Switch Assembly47X-82560-00-00
Required: 1
THERMO SWITCH ASSY
No longer availableSearch Nationwide Inventory
$51.29
You save $5.70
-10%
$103.49
You save $11.50
-10%
9
Yamaha Motors
WIRE,EARTH LEAD 14NK-83354-00-00
Required: 1
WIRE, EARTH LEAD 1
Supersedes: 26H-83354-00-00
No longer availableSearch Nationwide Inventory
$0.09
You save $0.01
-10%
10
Yamaha Motors
Screw98580-04008-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98501-04008-00
$5.84
You save $0.65
11
Yamaha Motors
WASHER92903-04100-00
Required: 1
WASHER, SPRING
Supersedes: 92902-04100-00
No longer availableSearch Nationwide Inventory
$1.43
-50%
12
Yamaha Motors
Plate Washer92990-04600-00
Required: 1
WASHER, PLATE
Supersedes: 92901-04600-00
In stock
Only 1 remaining
$0.49
You save $0.49
-10%
13
Yamaha Motors
Stop Switch Assembly1UF-82530-02-00
Required: 1
STOP SWITCH ASSY
Supersedes: 1UF-82530-00-00
No longer availableSearch Nationwide Inventory
$42.29
You save $4.70
-10%
14
Yamaha Motors
SIDE STAND SWITCH33E-82566-00-00
Required: 1
SWITCH, SIDE STAND
$135.89
You save $15.10
-10%
15
Yamaha Motors
Flat Head Screw98707-05014-00
Required: 2
SCREW, COUNTERSUNK
Supersedes: 90152-05016-00
$9.44
You save $1.05
-10%
16
Yamaha Motors
RELAY ASSY4U8-81950-03-00
Required: 1
RELAY ASSY
Supersedes: 4U8-81950-01-00
$91.79
You save $10.20
-10%
17
Yamaha Motors
Control Unit Assembly42H-85740-00-00
Required: 1
CONTROL UNIT ASSY
$227.69
You save $25.30
18
Yamaha Motors
HORN2AE-83371-00
Required: 1
HORN
Price unavailable
-10%
19
Yamaha Motors
Bolt97013-08012-00
Required: 1
BOLT
Supersedes: 97313-08012-00
$3.19
You save $0.35
-15%
20
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$4.76
You save $0.84
-10%
21
Yamaha Motors
SENDER UNIT ASSEMBLY1UF-85752-03-00
Required: 1
SENDER UNIT ASSY, FUEL METER
Supersedes: 1UF-85752-00-00
No longer availableSearch Nationwide Inventory
$104.39
You save $11.60
-15%
22
Yamaha Motors
SENDER UNIT GASKET42X-85753-00-00
Required: 1
GASKET, SENDER UNIT
In stock
Only 2 remaining
$7.22
You save $1.27
-20%
24
Yamaha Motors
Plate Washer90202-05187-00
Required: 2
WASHER, PLATE
Supersedes: 90202-06010-00
In stock
Only 4 remaining
$1.36
You save $0.34
-10%
25
Yamaha Motors
Flasher Relay Assembly41R-83350-72-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 41R-83350-71-00
$175.95
You save $20.04
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
