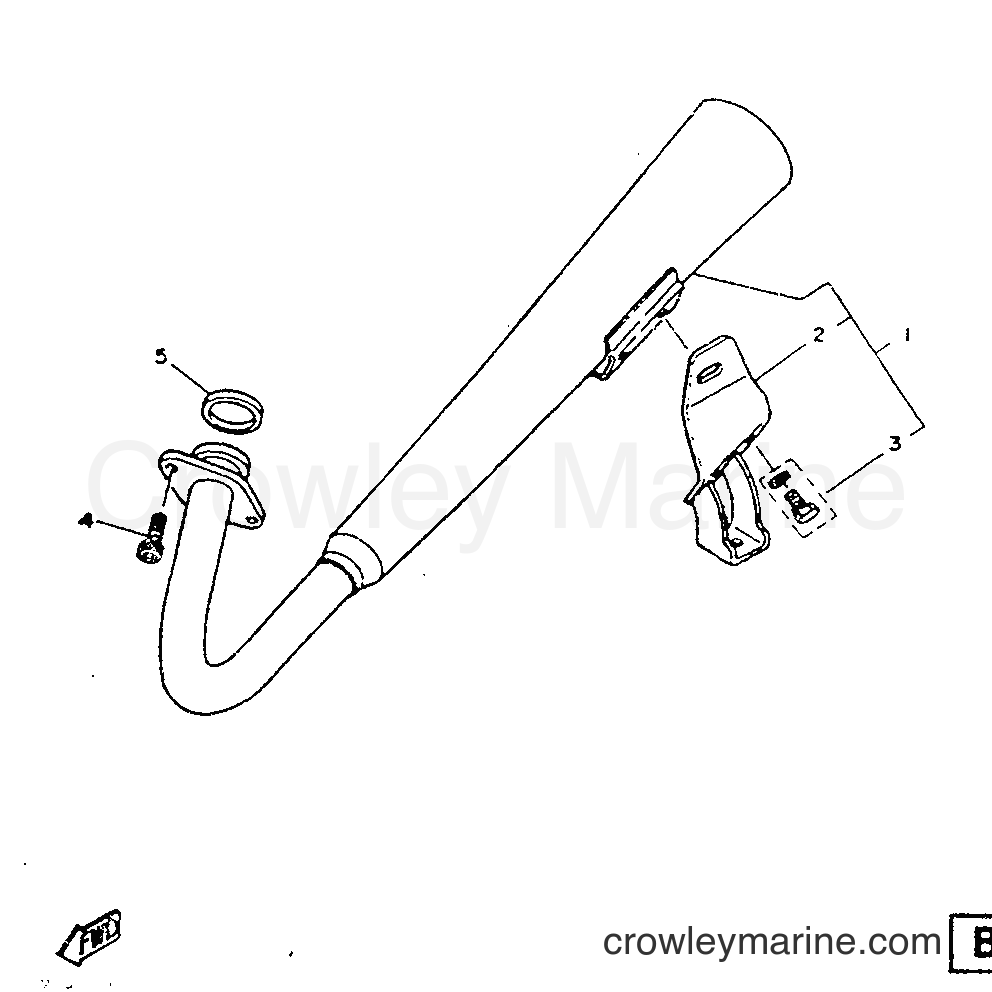

1987 Street Bike SR125 - SR125 (2JW) [999] ESCAPE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SR125 (2JW) [999] - ESCAPE
Change View:
MUFFLER ASSY 1
1
Yamaha Motors
MUFFLER ASSY 12JW-E4710-00
Required: 1
MUFFLER ASSY 1
Price unavailable
. STAY, MUFFLER 1
2
Yamaha Motors
. STAY, MUFFLER 12JW-E4771-00
Required: 1
. STAY, MUFFLER 1
Price unavailable
. BOLT, WITH WASHER
3
Yamaha Motors
. BOLT, WITH WASHER97522-08114
Required: 2
. BOLT, WITH WASHER
Price unavailable
GASKET, EXHAUST PIPE
5
Yamaha Motors
GASKET, EXHAUST PIPE2JW-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
