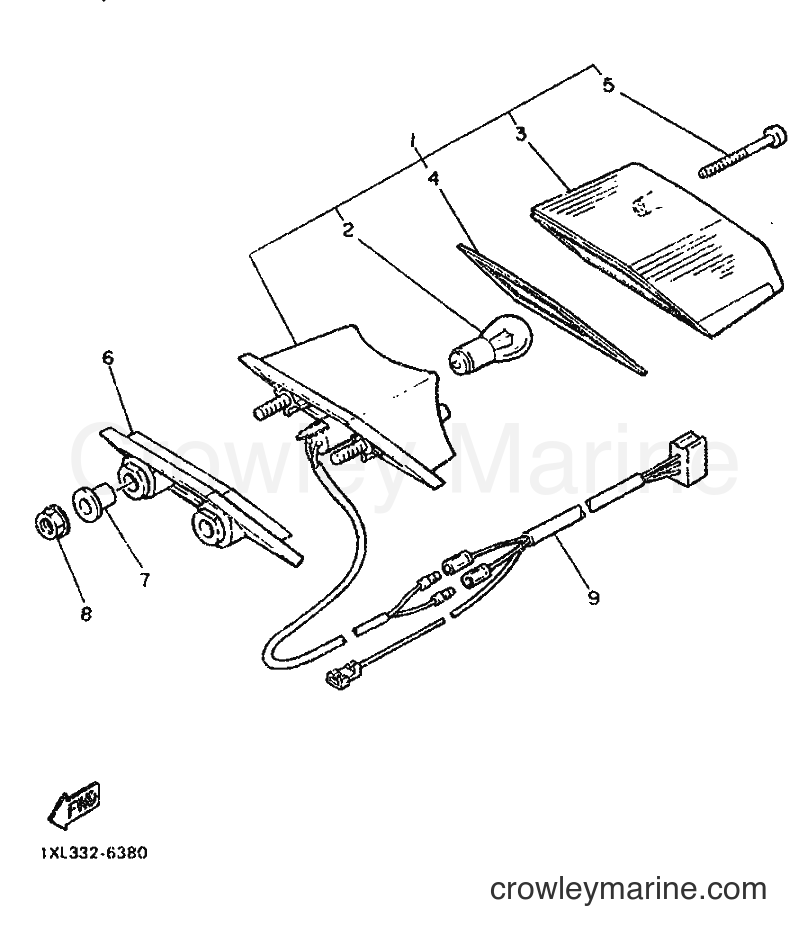

1987 Street Bike SRX600 - SRX600 (2TM) [999] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SRX600 (2TM) [999] - TAILLIGHT
Change View:
TAILLIGHT UNIT ASSY
1
Yamaha Motors
TAILLIGHT UNIT ASSY1XL-84710-E0
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
. LENS, TAILLIGHT
3
Yamaha Motors
. LENS, TAILLIGHT53V-84721-40
Required: 1
. LENS, TAILLIGHT
Price unavailable
. GASKET, TAIL LENS
4
Yamaha Motors
. GASKET, TAIL LENS34Y-84723-E0
Required: 1
. GASKET, TAIL LENS
Price unavailable
-10%
Tapping Screw
5
Yamaha Motors
Tapping Screw97707-40630-00
Required: 2
. SCREW, TAPPING
Supersedes: 97706-40530-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
COLLAR
7
Yamaha Motors
COLLAR90387-06158-00
Required: 2
COLLAR
Supersedes: 90387-06388-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
CORD, TAILLIGHT
9
Yamaha Motors
CORD, TAILLIGHT1XL-84517-00
Required: 1
CORD, TAILLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
