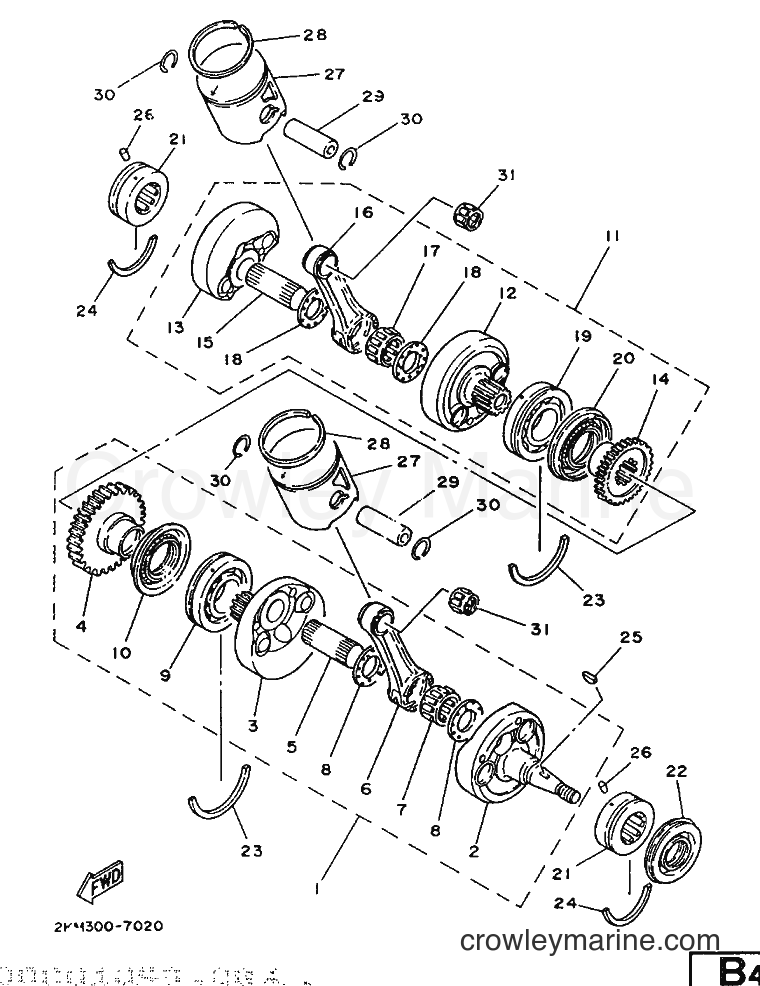

1987 Street Bike TZ250 - TZ250 (2KM) [999] CRANKSHAFT & PISTON diagram
![Yamaha Motors TZ250 (2KM) [999] - CRANKSHAFT & PISTON](https://cdn.crowleymarine.com/yamaha/HFkLBfnp.png)
-10%
1
Yamaha Motors
Crank Subassembly 11RK-11401-01-00
Required: 1
CRANK SUB ASSY 1
No longer availableSearch Nationwide Inventory
$642.59
You save $71.40
-10%
No longer availableSearch Nationwide Inventory
$266.39
You save $29.60
-10%
No longer availableSearch Nationwide Inventory
$266.39
You save $29.60
-10%
4
Yamaha Motors
Drive Gear5F7-11536-00-00
Required: 1
. GEAR, DRIVE
No longer availableSearch Nationwide Inventory
$76.35
You save $8.48
-10%
5
Yamaha Motors
CRANK PIN 14A0-11681-00-00
Required: 1
. PIN, CRANK 1
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
6
Yamaha Motors
Connecting Rod49V-11651-00-00
Required: 1
. ROD, CONNECTING
No longer availableSearch Nationwide Inventory
$118.79
You save $13.20
-10%
7
Yamaha Motors
93310-523D2-0093310-522B9-00
Required: 1
. BEARING
Supersedes: 93310-522N9-00
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
$12.14
You save $1.35
-10%
9
Yamaha Motors
BEARING 3TC93306-20638-00
Required: 1
BEARING
Supersedes: 93306-20626-00
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
$20.69
You save $2.30
-10%
11
Yamaha Motors
Crank Subassembly1RK-11402-01-00
Required: 1
. CRANK SUB ASSY 2
No longer availableSearch Nationwide Inventory
$642.59
You save $71.40
-10%
No longer availableSearch Nationwide Inventory
$266.39
You save $29.60
-10%
No longer availableSearch Nationwide Inventory
$266.39
You save $29.60
-10%
14
Yamaha Motors
GEAR,CRANK SHAFT5F7-11434-00-00
Required: 1
. GEAR, CRANK SHAFT
No longer availableSearch Nationwide Inventory
$121.49
You save $13.50
-10%
15
Yamaha Motors
CRANK PIN 14A0-11681-00-00
Required: 1
. PIN, CRANK 1
No longer availableSearch Nationwide Inventory
$35.09
You save $3.90
-10%
16
Yamaha Motors
Connecting Rod49V-11651-00-00
Required: 1
. ROD, CONNECTING
No longer availableSearch Nationwide Inventory
$118.79
You save $13.20
-10%
17
Yamaha Motors
93310-523D2-0093310-522B9-00
Required: 1
. BEARING
Supersedes: 93310-522N9-00
No longer availableSearch Nationwide Inventory
$39.59
You save $4.40
-10%
$12.14
You save $1.35
-10%
19
Yamaha Motors
BEARING 3TC93306-20638-00
Required: 1
. BEARING
Supersedes: 93306-20626-00
No longer availableSearch Nationwide Inventory
$48.59
You save $5.40
-10%
$20.69
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$252.89
You save $28.10
-10%
No longer availableSearch Nationwide Inventory
$17.09
You save $1.90
-10%
No longer availableSearch Nationwide Inventory
$4.23
You save $0.47
-10%
No longer availableSearch Nationwide Inventory
$4.94
You save $0.55
-10%
25
Yamaha Motors
Woodruff Key90280-04005-00
Required: 1
KEY, WOODRUFF
No longer availableSearch Nationwide Inventory
$6.29
You save $0.70
-10%
$2.48
You save $0.27
-10%
No longer availableSearch Nationwide Inventory
$69.29
You save $7.70
-10%
No longer availableSearch Nationwide Inventory
$76.49
You save $8.50
-10%
No longer availableSearch Nationwide Inventory
$83.69
You save $9.30
-10%
$92.69
You save $10.30
-10%
29
Yamaha Motors
Piston Pin137-11633-10-00
Required: 2
PIN, PISTON
Supersedes: 137-11633-00-00
$27.89
You save $3.10
-15%
30
Yamaha Motors
Circle Clip93450-17129-00
Required: 4
CLIP, PISTON PIN
Supersedes: 4V2-11634-00-00
In stock
Only 3 remaining
$3.78
You save $0.67
-10%
$33.29
You save $3.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
