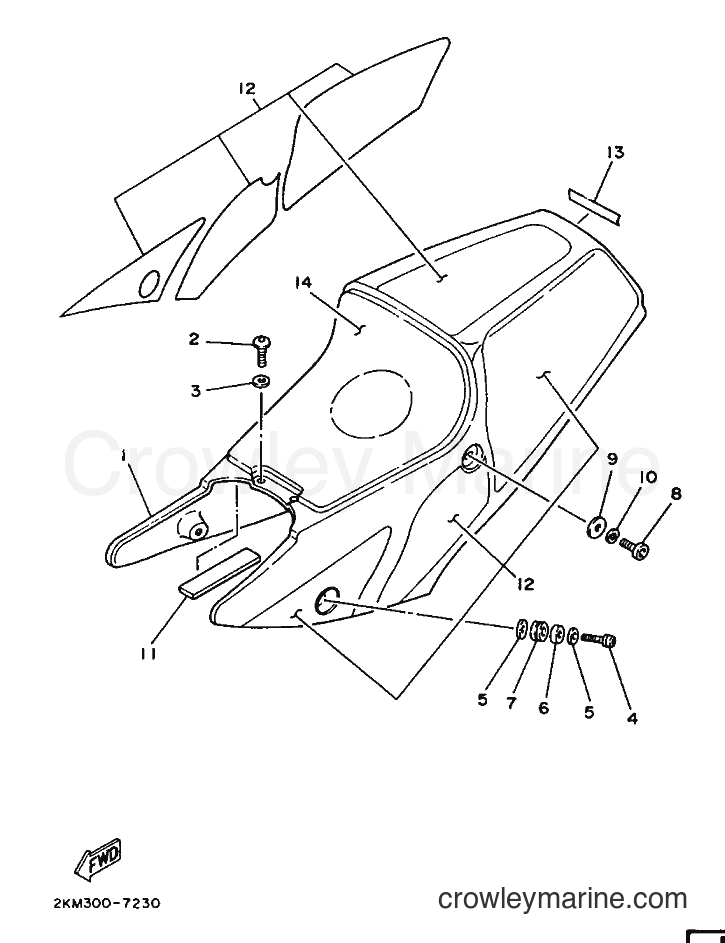

1987 Street Bike TZ250 - TZ250 (2KM) [999] SEAT diagram
![Yamaha Motors TZ250 (2KM) [999] - SEAT](https://cdn.crowleymarine.com/yamaha/H8JSj9OE.png)
-10%
1
Yamaha Motors
Single Seat Assembly2KM-24710-00-00
Required: 1
SINGLE SEAT ASSY
No longer availableSearch Nationwide Inventory
$441.89
You save $49.10
-10%
2
Yamaha Motors
Button Bolt92017-06020-00
Required: 2
BOLT, BUTTON HEAD
Supersedes: 92016-06020-00
$3.65
You save $0.40
-10%
3
Yamaha Motors
Plate Washer90201-062A8-00
Required: 2
WASHER, PLATE
Supersedes: 90201-061E8-00
$8.54
You save $0.95
-10%
4
Yamaha Motors
Button Bolt92014-06025-00
Required: 2
BOLT, BUTTON HEAD
Supersedes: 92013-06025-00
$9.44
You save $1.05
-10%
5
Yamaha Motors
Plate Washer90201-06697-00
Required: 4
WASHER, PLATE
Supersedes: 90201-06070-00
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
-10%
7
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 2
GROMMET
Supersedes: 90480-18418-00
$9.44
You save $1.05
-10%
8
Yamaha Motors
Button Bolt92017-08020-00
Required: 2
BOLT, BUTTON HEAD
Supersedes: 92011-08020-00
$7.64
You save $0.85
-10%
9
Yamaha Motors
Plate Washer90201-086A3-00
Required: 2
WASHER, PLATE
Supersedes: 90201-08107-00
$8.54
You save $0.95
-15%
10
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$4.76
You save $0.84
-10%
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
12
Yamaha Motors
SEAT GRAPHIC SET2KM-2478L-00-00
Required: 1
SEAT GRAPHIC SET
No longer availableSearch Nationwide Inventory
$111.59
You save $12.40
-10%
13
Yamaha Motors
99231-00080-0099231-00020-00
Required: 1
EMBLEM 1
Supersedes: 1AE-2163G-10-00
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
-10%
No longer availableSearch Nationwide Inventory
$69.29
You save $7.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
