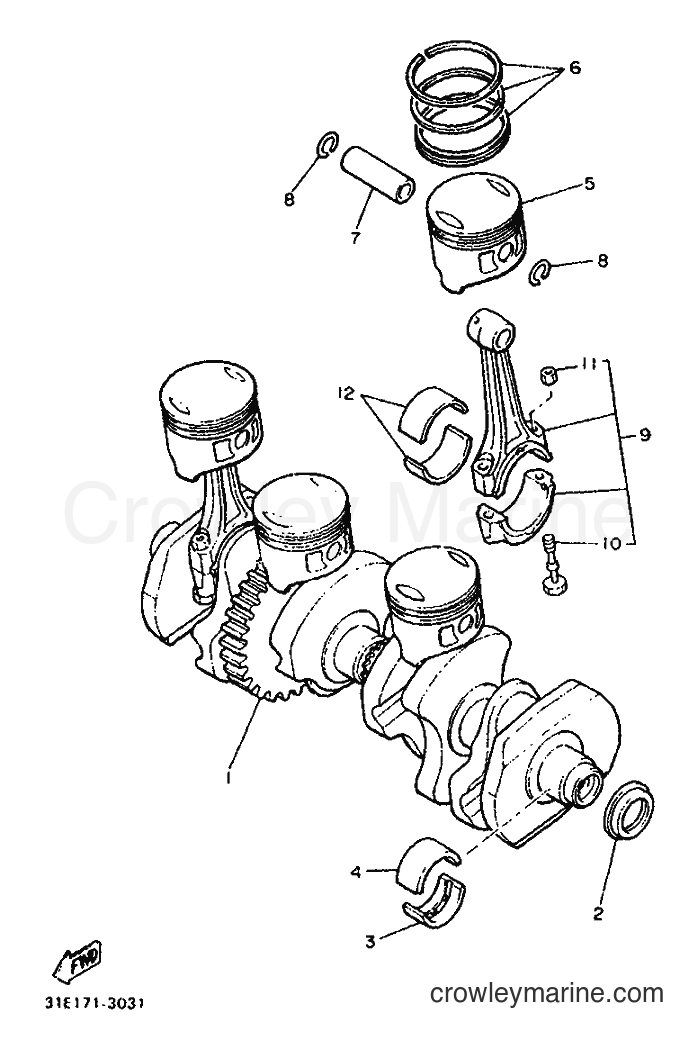

1987 Street Bike XJ900F - XJ900F (2HL) [999] CRANKSHAFT & PISTON diagram
![Yamaha Motors XJ900F (2HL) [999] - CRANKSHAFT & PISTON](https://cdn.crowleymarine.com/yamaha/6E00OY60.png)
-10%
No longer availableSearch Nationwide Inventory
$641.69
You save $71.30
-10%
2
Yamaha Motors
S-TYPE OIL SEAL93101-32144-00
Required: 1
SEAL, PUSH ROD
Supersedes: 4H7-15389-10-00
$24.29
You save $2.70
-10%
3
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-21-00
Required: 5
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
3
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-31-00
Required: 5
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
3
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-41-00
Required: 5
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
3
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-01-00
Required: 5
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
3
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-11-00
Required: 5
PLANE BEARING, CRANKSHAFT 1
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
4
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-01-00
Required: 5
PLANE BEARING, CRANKSHAFT 3
Supersedes: 5G2-11418-00-00
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
-10%
4
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-11-00
Required: 5
PLANE BEARING, CRANKSHAFT 3
Supersedes: 5G2-11418-10-00
No longer availableSearch Nationwide Inventory
$22.49
You save $2.50
-10%
4
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-31-00
Required: 5
PLANE BEARING, CRANKSHAFT 3
Supersedes: 5G2-11418-30-00
No longer availableSearch Nationwide Inventory
$25.19
You save $2.80
-10%
4
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-21-00
Required: 5
PLANE BEARING, CRANKSHAFT 3
Supersedes: 5G2-11418-20-00
No longer availableSearch Nationwide Inventory
$23.39
You save $2.60
-10%
4
Yamaha Motors
Crankshaft Plain Bearing4H7-11416-41-00
Required: 5
PLANE BEARING, CRANKSHAFT 3
Supersedes: 5G2-11418-40-00
No longer availableSearch Nationwide Inventory
$20.69
You save $2.30
5
Yamaha Motors
PISTON (1.00MM O/S)59L-11638-00
Required: 4
PISTON (1.00MM O/S)
Price unavailable
5
Yamaha Motors
PISTON (STD)59L-11631-00-E0
Required: 4
PISTON (STD)
Price unavailable
5
Yamaha Motors
PISTON (0.50MM O/S)59L-11636-00
Required: 4
PISTON (0.50MM O/S)
Price unavailable
6
Yamaha Motors
PISTON RING SET59L-11610-20
Required: 4
PISTON RING SET
Price unavailable
6
Yamaha Motors
PISTON RING SET59L-11610-00
Required: 4
PISTON RING SET
Price unavailable
6
Yamaha Motors
PISTON RING SET59L-11610-40
Required: 4
PISTON RING SET
Price unavailable
-10%
$32.39
You save $3.60
-10%
$8.54
You save $0.95
9
Yamaha Motors
BOLT, CONNECTING ROD31A-11654-00
Required: 2
BOLT, CONNECTING ROD
Price unavailable
-10%
10
Yamaha Motors
Con Rod Bolt12R-11654-00-00
Required: 2
BOLT, CONNECTING ROD
$5.84
You save $0.65
-10%
$9.44
You save $1.05
-10%
12
Yamaha Motors
CONNECTER ROD PLANE BEARING31A-11656-10-00
Required: 8
PLANE BEARING, CONNECTING ROD
$7.64
You save $0.85
-10%
12
Yamaha Motors
CONNECTER ROD PLANE BEARING31A-11656-20-00
Required: 8
PLANE BEARING, CONNECTING ROD
No longer availableSearch Nationwide Inventory
$10.34
You save $1.15
-10%
12
Yamaha Motors
CONNECTER ROD PLANE BEARING31A-11656-30-00
Required: 8
PLANE BEARING, CONNECTING ROD
No longer availableSearch Nationwide Inventory
$10.79
You save $1.20
-10%
12
Yamaha Motors
CONNECTER ROD PLANE BEARING31A-11656-00-00
Required: 8
PLANE BEARING, CONNECTING ROD
No longer availableSearch Nationwide Inventory
$7.64
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
