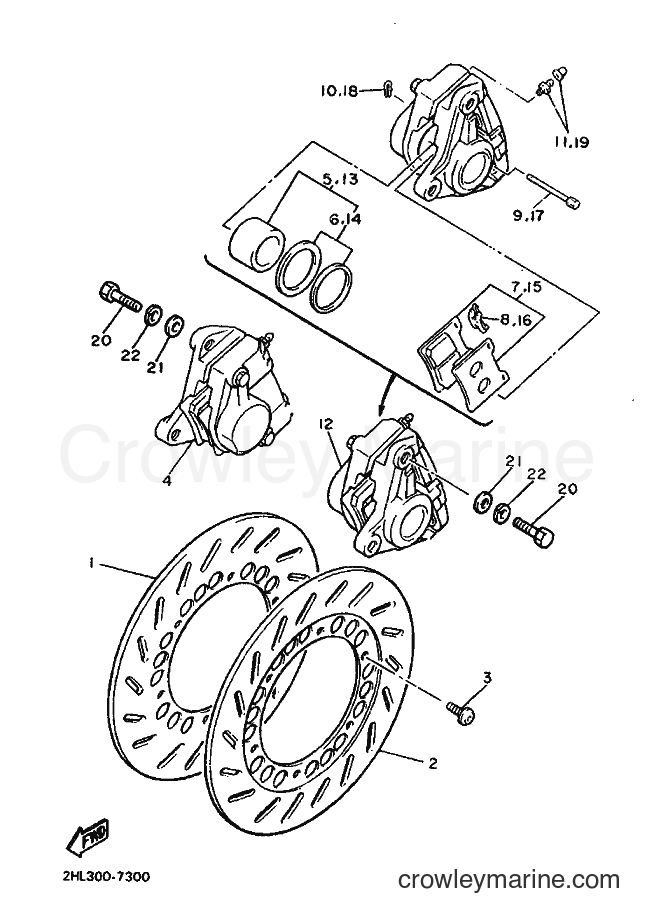

1987 Street Bike XJ900F - XJ900F (2HL) [999] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XJ900F (2HL) [999] - FRONT BRAKE CALIPER
Change View:
-10%
BOLT,HEX. SOCKET BUT
3
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-08084-00
Required: 12
BOLT
Supersedes: 90109-08718-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
CALIPER ASSY
4
Yamaha Motors
CALIPER ASSY51H-25810-00
Required: 1
CALIPER ASSY
Price unavailable
-10%
PISTON RING CALIPER
5
Yamaha Motors
PISTON RING CALIPER31A-W0057-00-00
Required: 1
. PISTON ASSY, CALIPER
Cross Ship
Leaves in 2-5 days
$153.99
$138.59
You save $15.40
More details
-10%
Caliper Seal Kit
6
Yamaha Motors
Caliper Seal Kit31A-W0047-00-00
Required: 1
. . CALIPER SEAL KIT
Cross Ship
Leaves in 2-5 days
$62.99
$56.69
You save $6.30
More details
-10%
PAD PIN
9
Yamaha Motors
PAD PIN3HE-25924-00-00
Required: 2
. PIN, PAD
Supersedes: 1KT-25924-00-00
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
-10%
Pin Pad Clip
10
Yamaha Motors
Pin Pad Clip3GM-25925-00-00
Required: 2
. CLIP
Supersedes: 26H-25925-00-00
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
Bleed Screw Kit
11
Yamaha Motors
Bleed Screw Kit1J3-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 26H-W0048-00-00
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
CALIPER ASSY
12
Yamaha Motors
CALIPER ASSY51H-25810-10
Required: 1
CALIPER ASSY
Price unavailable
-10%
PISTON RING CALIPER
13
Yamaha Motors
PISTON RING CALIPER31A-W0057-00-00
Required: 1
. PISTON ASSY, CALIPER
Cross Ship
Leaves in 2-5 days
$153.99
$138.59
You save $15.40
More details
-10%
Caliper Seal Kit
14
Yamaha Motors
Caliper Seal Kit31A-W0047-00-00
Required: 1
. . CALIPER SEAL KIT
Cross Ship
Leaves in 2-5 days
$62.99
$56.69
You save $6.30
More details
-10%
Pad Support
16
Yamaha Motors
Pad Support2GH-25919-00-00
Required: 2
. SUPPORT, PAD
Supersedes: 1KT-25919-00-00
Cross Ship
Leaves in 2-5 days
$21.99
$19.79
You save $2.20
More details
-10%
PAD PIN
17
Yamaha Motors
PAD PIN3HE-25924-00-00
Required: 2
PIN, PAD
Supersedes: 1KT-25924-00-00
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
-10%
Pin Pad Clip
18
Yamaha Motors
Pin Pad Clip3GM-25925-00-00
Required: 2
. CLIP
Supersedes: 26H-25925-00-00
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
Bleed Screw Kit
19
Yamaha Motors
Bleed Screw Kit1J3-W0048-00-00
Required: 1
. BLEED SCREW KIT
Supersedes: 26H-W0048-00-00
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
-10%
BOLT
20
Yamaha Motors
BOLT90101-10308-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
