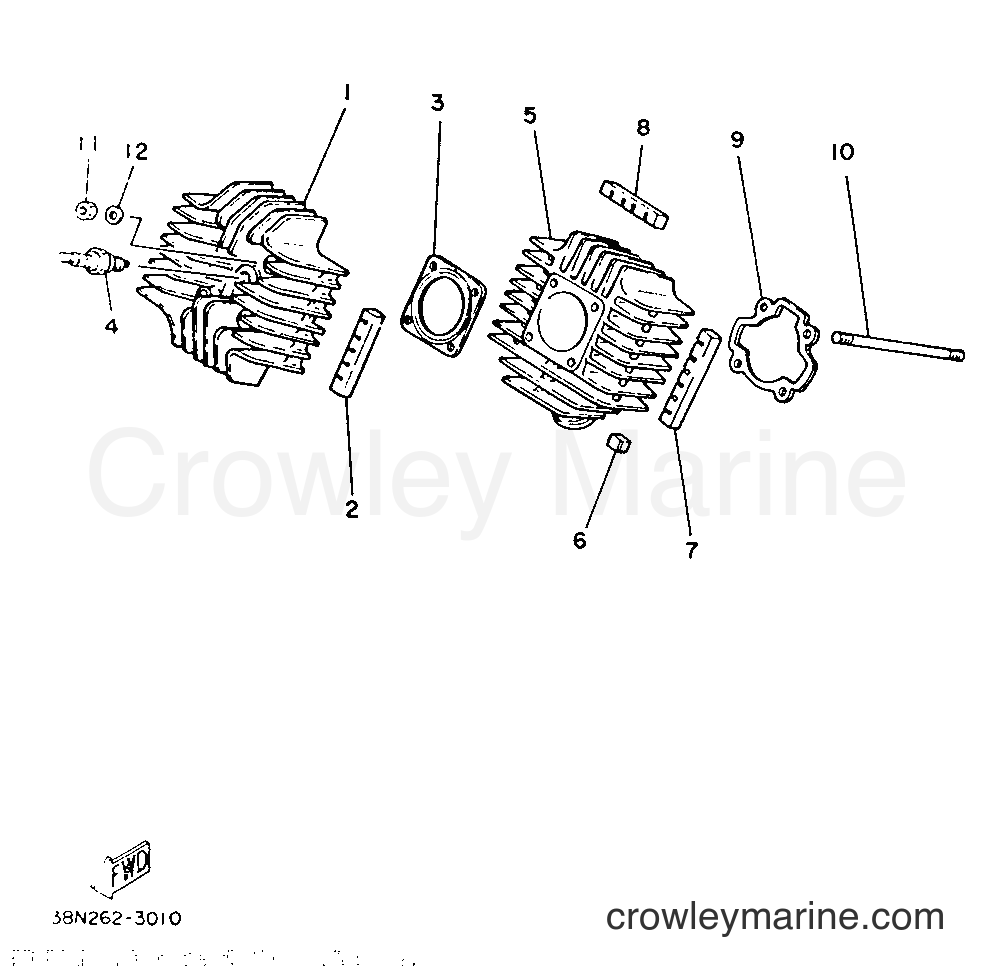

1987 Street Bike YB100 - YB100 (18N) [999] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YB100 (18N) [999] - CYLINDER
Change View:
HEAD, CYLINDER 1
1
Yamaha Motors
HEAD, CYLINDER 12N3-11111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
ABSORBER 3
2
Yamaha Motors
ABSORBER 32N3-11127-00
Required: 2
ABSORBER 3
Price unavailable
GASKET, CYLINDER HEAD 1
3
Yamaha Motors
GASKET, CYLINDER HEAD 12N3-11181-00
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
CYLINDER 1
5
Yamaha Motors
CYLINDER 12R4-11311-00
Required: 1
CYLINDER 1
Price unavailable
ABSORBER 1
6
Yamaha Motors
ABSORBER 11T9-11161-00
Required: 4
ABSORBER 1
Price unavailable
ABSORBER 1
7
Yamaha Motors
ABSORBER 12N3-11161-00
Required: 2
ABSORBER 1
Price unavailable
ABSORBER 2
8
Yamaha Motors
ABSORBER 22N3-11162-00
Required: 1
ABSORBER 2
Price unavailable
-10%
Stud Bolt
10
Yamaha Motors
Stud Bolt90116-07035-00
Required: 4
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Hexagon Nut
11
Yamaha Motors
Hexagon Nut90170-07019-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$3.90
$3.51
You save $0.39
More details
-10%
Plate Washer
12
Yamaha Motors
Plate Washer90201-07653-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
