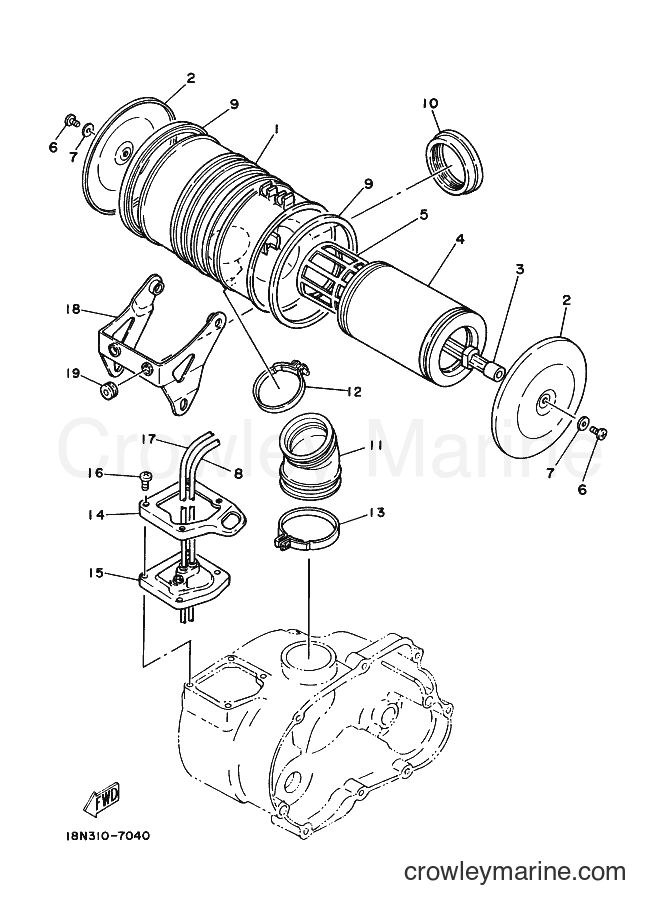

1987 Street Bike YB100 - YB100 (18N) [999] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YB100 (18N) [999] - INTAKE
Change View:
CASE, AIR CLEANER 1
1
Yamaha Motors
CASE, AIR CLEANER 12N3-14411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
CAP, CLEANER CASE 1
2
Yamaha Motors
CAP, CLEANER CASE 12N3-14412-00
Required: 2
CAP, CLEANER CASE 1
Price unavailable
STAY 1
3
Yamaha Motors
STAY 12N3-14493-00
Required: 1
STAY 1
Price unavailable
ELEMENT, AIR CLEANER
4
Yamaha Motors
ELEMENT, AIR CLEANER2U0-14451-00
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
GUIDE
5
Yamaha Motors
GUIDE2U0-14458-00
Required: 1
GUIDE
Price unavailable
HOSE
8
Yamaha Motors
HOSE90445-07382
Required: 1
HOSE
Price unavailable
SEAL
9
Yamaha Motors
SEAL2N3-14476-01
Required: 2
SEAL
Price unavailable
JOINT
10
Yamaha Motors
JOINT2N3-14454-00
Required: 1
JOINT
Price unavailable
JOINT, AIR CLEANER 1
11
Yamaha Motors
JOINT, AIR CLEANER 12N3-14453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
CLAMP, HOSE
13
Yamaha Motors
CLAMP, HOSE90460-23141
Required: 1
CLAMP, HOSE
Price unavailable
GASKET 1
14
Yamaha Motors
GASKET 12N3-24482-00
Required: 1
GASKET 1
Price unavailable
CAP, CARBURETOR
15
Yamaha Motors
CAP, CARBURETOR2N3-14481-00
Required: 1
CAP, CARBURETOR
Price unavailable
-10%
Pan Head Screw (4MY)
16
Yamaha Motors
Pan Head Screw (4MY)98507-05018-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98501-05018-00
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
HOSE
17
Yamaha Motors
HOSE90445-05381
Required: 1
HOSE
Price unavailable
STAY 1
18
Yamaha Motors
STAY 12N3-14498-00
Required: 1
STAY 1
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
19
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10091-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
