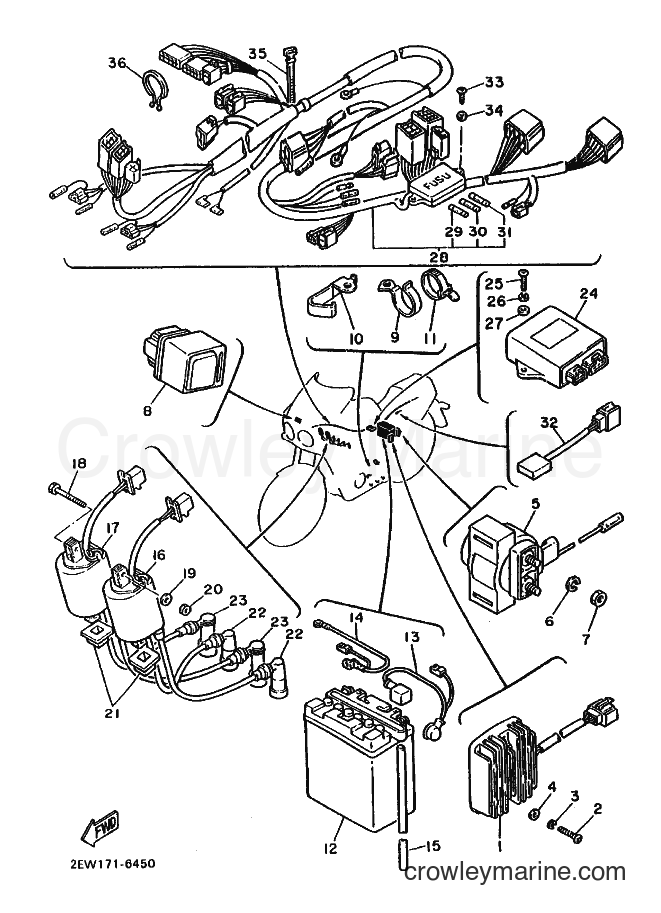

1988 Street Bike FZ600 - FZ600 (2XR0) [010] ELECTRICAL 1 diagram
![Yamaha Motors FZ600 (2XR0) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/5PQArvjN.png)
-10%
1
Yamaha Motors
Rectifier/Regulator Assembly2XL-81960-A0-00
Required: 1
RECTIFIER & REGULATOR ASSY
No longer availableSearch Nationwide Inventory
$182.24
You save $20.25
-10%
2
Yamaha Motors
98580-06030-0098501-06030-00
Required: 2
SCREW, Pan head
Supersedes: 92501-06030-00
No longer availableSearch Nationwide Inventory
$4.55
You save $0.50
-15%
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, sPring
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, Plate
In stock
5+ in stock
$2.51
You save $0.44
-10%
5
Yamaha Motors
Starter Switch Assembly36Y-81940-00-00
Required: 1
STARTER SWITCH ASSY
$150.29
You save $16.70
-15%
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, sPring
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-10%
No longer availableSearch Nationwide Inventory
$2.34
You save $0.26
-10%
8
Yamaha Motors
RELAY ASSY4U8-81950-03-00
Required: 1
RELAY ASSY
Supersedes: 4U8-81950-01-00
$91.79
You save $10.20
-10%
$5.84
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$6.74
You save $0.75
-10%
No longer availableSearch Nationwide Inventory
$11.24
You save $1.25
12
Yamaha Motors
BATTERY ASSY366-82110-71
Required: 1
BATTERY ASSY
Price unavailable
-10%
12
Yamaha Motors
12N12A-4A-1 YUASA B12N-12A4A-1Y-00
Required: 1
BATTERY ASSY (12N12A-4A)
Supersedes: 366-82110-79-00
No longer availableSearch Nationwide Inventory
$44.99
You save $5.00
-10%
13
Yamaha Motors
Plus Lead Wire1UT-82115-00-00
Required: 1
WIRE, Plus lead
Supersedes: 46X-82115-00-00
No longer availableSearch Nationwide Inventory
$62.99
You save $7.00
-10%
14
Yamaha Motors
MINUS LEAD WIRE2AX-82116-00-00
Required: 1
WIRE, minus lead
No longer availableSearch Nationwide Inventory
$16.19
You save $1.80
-10%
No longer availableSearch Nationwide Inventory
$3.56
You save $0.40
-10%
16
Yamaha Motors
IGNITION COIL ASSEMBLY1WG-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2XL-82310-10-00
No longer availableSearch Nationwide Inventory
$257.39
You save $28.60
-10%
17
Yamaha Motors
IGNITION COIL ASSEMBLY1WG-82310-09-00
Required: 1
IGNITION COIL ASSY
Supersedes: 2XL-82320-10-00
No longer availableSearch Nationwide Inventory
$257.39
You save $28.60
18
Yamaha Motors
BOLT97302-06065
Required: 1
BOLT
Price unavailable
-15%
19
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, Plate
In stock
5+ in stock
$2.51
You save $0.44
-15%
In stock
5+ in stock
$4.17
You save $0.74
-10%
21
Yamaha Motors
IGNITION COIL DAMPER4U8-82317-00-00
Required: 2
DAMPER, ignition coil
$10.79
You save $1.20
-10%
22
Yamaha Motors
Plug Cap Assembly3NS-82370-00-00
Required: 2
PLUG CAP ASSY
Supersedes: 4G0-82370-21-00
$37.79
You save $4.20
-10%
23
Yamaha Motors
PLUG CAP ASSY4BP-82370-01-00
Required: 2
PLUG CAP ASSY
Supersedes: 55X-82370-00-00
$35.09
You save $3.90
-10%
24
Yamaha Motors
Ignitor Unit Assembly2XL-82305-10-00
Required: 1
IGNITOR UNIT ASSY
No longer availableSearch Nationwide Inventory
$501.29
You save $55.70
-15%
25
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, Pan head
Supersedes: 92502-06016-00
In stock
5+ in stock
$2.93
You save $0.52
-15%
26
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, sPring
Supersedes: 92990-06100-00
In stock
5+ in stock
$3.02
You save $0.53
-15%
27
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, Plate
In stock
5+ in stock
$2.51
You save $0.44
-10%
28
Yamaha Motors
Wire Harness Assembly2XL-82590-00-00
Required: 1
WIRE HARNESS ASSY
No longer availableSearch Nationwide Inventory
$190.79
You save $21.20
-10%
$16.19
You save $1.80
-10%
30
Yamaha Motors
Fuse1A0-82161-00-00
Required: 1
.FUSE (12V-20A)
$7.64
You save $0.85
-10%
31
Yamaha Motors
Fuse (12V/10A)2H7-82151-00-00
Required: 1
.FUSE (12V-30A)
$3.69
You save $0.41
-10%
$57.59
You save $6.40
-10%
33
Yamaha Motors
Tapping Screw97702-50112-00
Required: 2
SCREW, taPPing
No longer availableSearch Nationwide Inventory
$3.96
You save $0.44
-15%
34
Yamaha Motors
Plate Washer92990-05600-00
Required: 2
WASHER, Plate
Supersedes: 92901-05600-00
In stock
Only 1 remaining
$0.68
You save $0.12
-10%
35
Yamaha Motors
Clamp90464-15195-00
Required: 1
CLAMP
Supersedes: 90464-13073-00
$3.97
You save $0.44
-50%
36
Yamaha Motors
Clamp90464-25267-00
Required: 1
CLAMP
Supersedes: 90464-23041-00
In stock
Only 1 remaining
$4.25
You save $4.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
