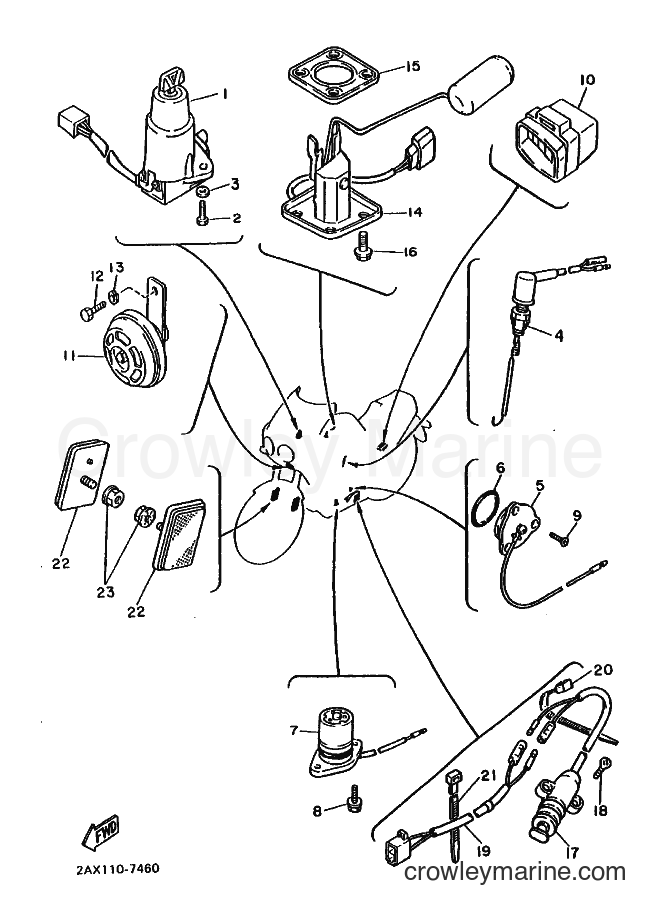

1988 Street Bike FZ600 - FZ600 (2XR0) [010] ELECTRICAL 2 diagram
![Yamaha Motors FZ600 (2XR0) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/mpOw6tiV.png)
-10%
1
Yamaha Motors
3JV-82501-00-003LK-82501-00-00
Required: 1
MAIN SWITCH STEERING LOCK
Supersedes: 47M-82501-50-00
No longer availableSearch Nationwide Inventory
$197.09
You save $21.90
-15%
In stock
Only 5 remaining
$2.35
You save $0.41
-15%
3
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, Plate
In stock
5+ in stock
$2.51
You save $0.44
-10%
4
Yamaha Motors
46X-82530-02-0046X-82530-01-00
Required: 1
STOP SWITCH ASSY
Supersedes: 46X-82530-00-00
No longer availableSearch Nationwide Inventory
$38.69
You save $4.30
-10%
5
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1L9-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$46.79
You save $5.20
-10%
$8.54
You save $0.95
-10%
7
Yamaha Motors
OIL LEVEL GAUGE ASSEMBLY4U8-85720-00-00
Required: 1
OIL LEVEL GAUGE ASSY
No longer availableSearch Nationwide Inventory
$256.49
You save $28.50
-10%
8
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, flange
Supersedes: 95026-06016-00
$9.44
You save $1.05
-10%
9
Yamaha Motors
98707-05012-0098701-05012-00
Required: 3
SCREW, flat head
No longer availableSearch Nationwide Inventory
$0.81
You save $0.09
-10%
10
Yamaha Motors
Flasher Relay Assembly41R-83350-72-00
Required: 1
FLASHER RELAY ASSY
Supersedes: 41R-83350-71-00
$175.95
You save $20.04
-10%
11
Yamaha Motors
Horn4KG-83371-11-00
Required: 1
HORN
Supersedes: 33M-83371-20-00
$55.79
You save $6.20
-10%
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
-50%
13
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, sPring
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
14
Yamaha Motors
FUEL METER SENDER ASSEMBLY2AX-85752-00-00
Required: 1
SENDER UNIT ASSY, fuel meter
No longer availableSearch Nationwide Inventory
$55.79
You save $6.20
-10%
15
Yamaha Motors
Sender Unit Gasket5G3-85753-00-00
Required: 1
GASKET, sender unit
$17.09
You save $1.90
-10%
16
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, with washer
$8.54
You save $0.95
-10%
17
Yamaha Motors
SIDE STAND SWITCH5Y1-82566-00-00
Required: 1
SWITCH, side stand
Supersedes: 2AX-82566-00-00
$129.59
You save $14.40
-10%
18
Yamaha Motors
Flat Screw98707-05016-00
Required: 2
SCREW, countersunk
Supersedes: 90152-05021-00
$7.19
You save $0.80
-10%
No longer availableSearch Nationwide Inventory
$28.79
You save $3.20
-10%
20
Yamaha Motors
Clamp90464-15152-00
Required: 1
CLAMP
Supersedes: 90465-13154-00
$5.84
You save $0.65
-10%
No longer availableSearch Nationwide Inventory
$1.13
You save $0.13
-10%
22
Yamaha Motors
FRONT REFLECTOR ASSEMBLY4X7-85110-00-00
Required: 2
FRONT REFLECTOR ASSY
No longer availableSearch Nationwide Inventory
$40.49
You save $4.50
-10%
No longer availableSearch Nationwide Inventory
$2.48
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
