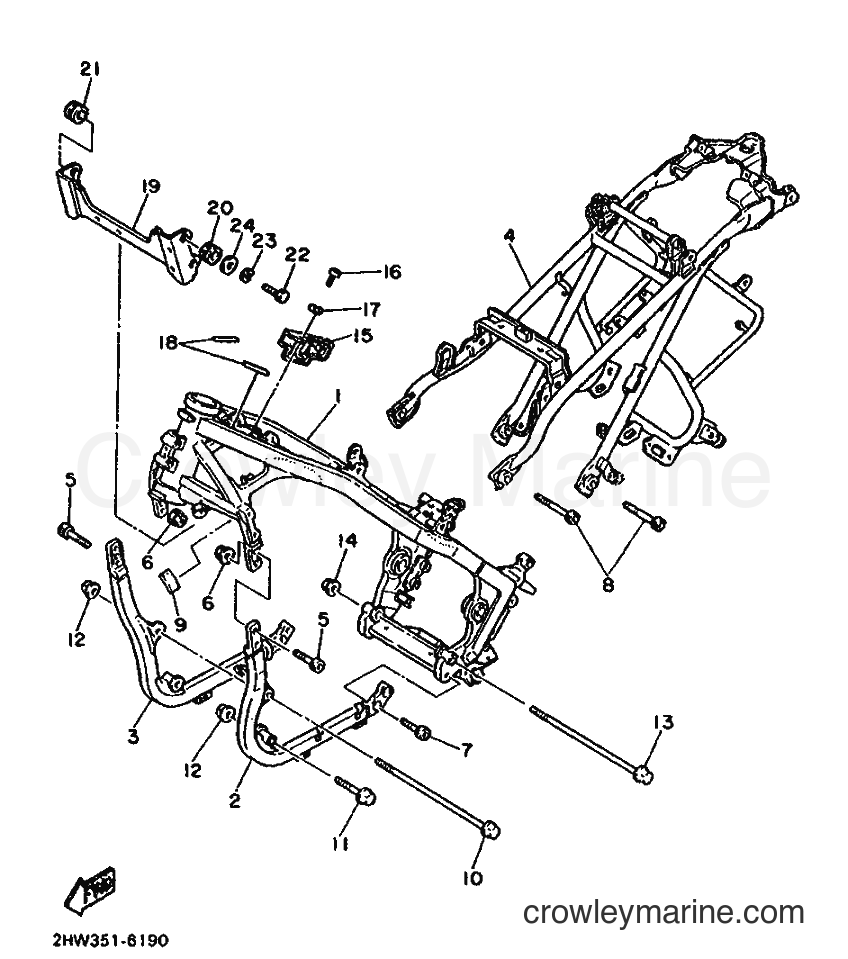

1988 Street Bike FZ600 - FZ600 (3BX) [999] FRAME diagram
![Yamaha Motors FZ600 (3BX) [999] - FRAME](https://cdn.crowleymarine.com/yamaha/oLeauRkS.png)
1
Yamaha Motors
FRAME COMP.2HW-21110-01-35
Required: 1
FRAME COMP.
Price unavailable
-10%
2
Yamaha Motors
TUBE,DOWN2AX-21140-00-35
Required: 1
DOWN TUBE COMP.
No longer availableSearch Nationwide Inventory
$239.39
You save $26.60
-10%
3
Yamaha Motors
Down Tube Comp2AX-21150-00-35
Required: 1
DOWN TUBE COMP.2
No longer availableSearch Nationwide Inventory
$234.89
You save $26.10
-10%
4
Yamaha Motors
Rear Frame2AX-21190-00-33
Required: 1
REAR FRAME COMP.
No longer availableSearch Nationwide Inventory
$304.19
You save $33.80
-10%
5
Yamaha Motors
Socket Bolt91317-08030-00
Required: 4
BOLT
Supersedes: 91316-08030-00
$8.54
You save $0.95
-50%
6
Yamaha Motors
Flange Nut95704-08500-00
Required: 4
NUT, FLANGE
Supersedes: 95701-08500-00
In stock
Only 5 remaining
$4.75
You save $4.75
-10%
7
Yamaha Motors
Flange Bolt90109-085E3-00
Required: 4
BOLT
Supersedes: 90109-084A6-00
$5.84
You save $0.65
-50%
8
Yamaha Motors
Socket Bolt91317-10020-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-10092-00
In stock
Only 2 remaining
$4.75
You save $4.75
-10%
9
Yamaha Motors
LOCATING DAMPER18A-21778-00-00
Required: 1
DAMPER, LOCATING 3
Supersedes: 27V-24183-00-00
$6.74
You save $0.75
-10%
10
Yamaha Motors
Washer Based Bolt90105-10401-00
Required: 1
BOLT, WASHER BASED
Supersedes: 90105-10336-00
No longer availableSearch Nationwide Inventory
$14.84
You save $1.65
-10%
11
Yamaha Motors
Washer Based Bolt90105-10737-00
Required: 2
BOLT, WASHER BASED
Supersedes: 90105-10337-00
$11.69
You save $1.30
-10%
$9.44
You save $1.05
-10%
13
Yamaha Motors
Washer Based Bolt90105-12335-00
Required: 1
BOLT, WASHER BASED
No longer availableSearch Nationwide Inventory
$7.19
You save $0.80
-10%
14
Yamaha Motors
Self-Locking Nut90185-12072-00
Required: 1
NUT, SELF-LOCKING
$9.44
You save $1.05
-10%
15
Yamaha Motors
WIRE HOLDER46X-21164-01-00
Required: 1
HOLDER, CABLE
No longer availableSearch Nationwide Inventory
$4.90
You save $0.54
-10%
16
Yamaha Motors
Pan Head Screw98516-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 92506-06012-00
No longer availableSearch Nationwide Inventory
$2.07
You save $0.23
-50%
17
Yamaha Motors
Spring Washer92907-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
$3.92
You save $0.44
-10%
19
Yamaha Motors
BRACKET,OIL COOLER2AX-21498-00-00
Required: 1
BRACKET, OIL COOLER
No longer availableSearch Nationwide Inventory
$83.42
You save $9.27
-10%
$8.54
You save $0.95
-10%
$8.54
You save $0.95
-10%
No longer availableSearch Nationwide Inventory
$0.85
You save $0.09
-50%
23
Yamaha Motors
Spring Washer92907-06100-00
Required: 4
WASHER, SPRING
Supersedes: 92906-06100-00
In stock
Only 1 remaining
$0.65
You save $0.65
-10%
24
Yamaha Motors
Plate Washer92907-06600-00
Required: 4
WASHER, PLATE
Supersedes: 92906-06600-00
$0.90
You save $0.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
